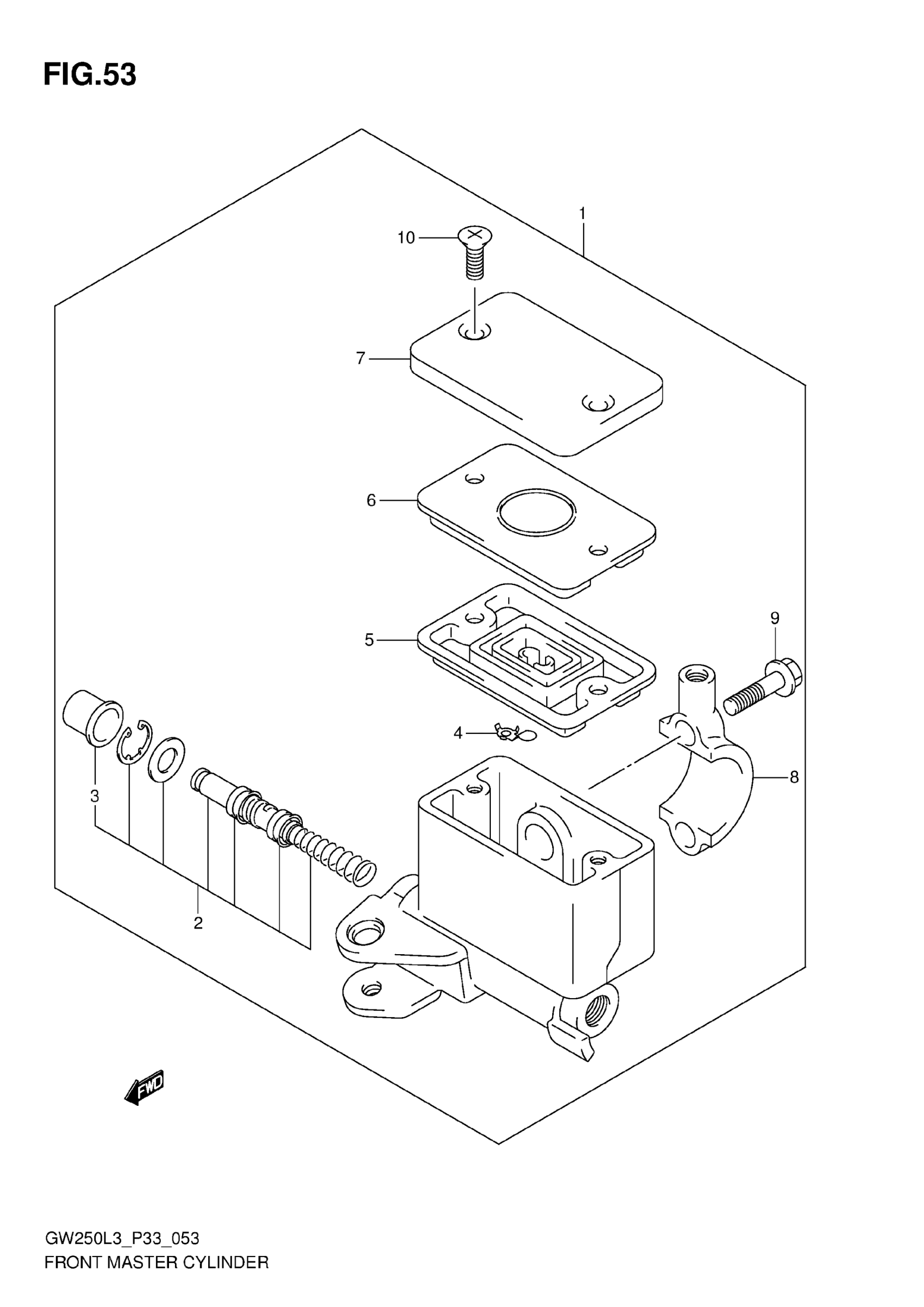

Suzuki GSX-R250L3 (2013) FRONT MASTER CYLINDER Diagram

#

Description

Price

1

CYLINDER ASSY, FRONT MASTER

59600-48H20-000

Unavailable

2

PISTON & CUP SET

59600-03820-000

Unavailable

3

..BOOT

59666-44300-000

Unavailable

4

.PROTECTOR

59664-32F00-000

Unavailable

5

.DIAPHRAGM

59667-49460-000

Unavailable

6

.PLATE,DIAPHRAGM

59668-41C00-000

Unavailable

7

CAP

59669-10G00-000

Unavailable

8

.HOLDER

59671-32F00-000

Unavailable

9

.BOLT (6X22)

59675-02FA0-000

Unavailable

10

.SCREW,RESERVOIR CAP

69689-49300-000

Unavailable
