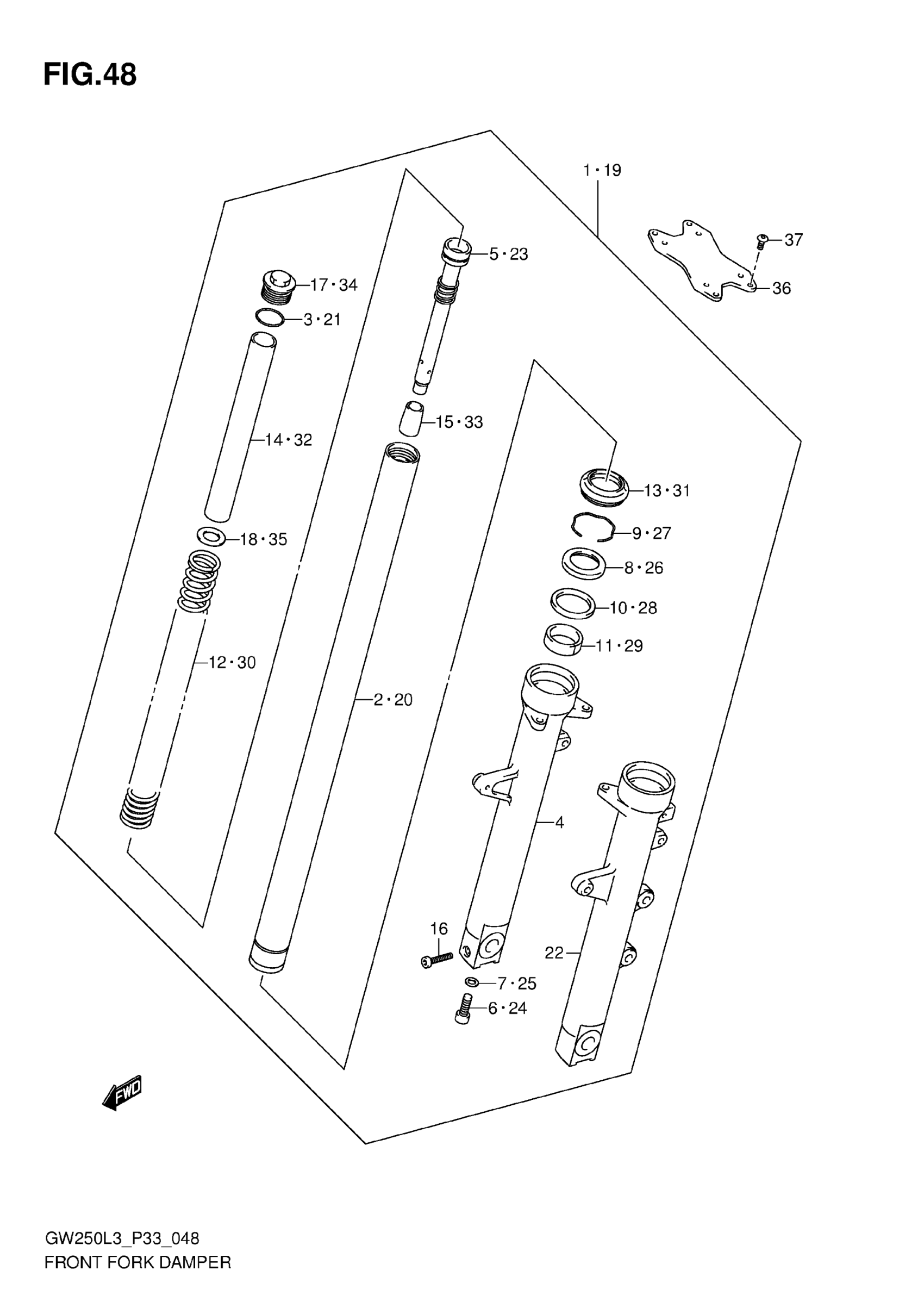

Suzuki GSX-R250L3 (2013) FRONT FORK DAMPER Diagram

#

Description

Price

1

DAMPER ASSY, FRONT FORK RH

51103-48H00-000

Unavailable

2

TUBE, INNER

51110-48H00-000

Unavailable

3

O RING

51117-38260-000

Unavailable

4

TUBE, OUTER

51130-48H00-000

Unavailable

5

CYLINDER

51146-48H00-000

Unavailable

6

.BOLT

51147-05H00-000

Unavailable

7

.GASKET

51148-41310-000

Unavailable

8

OIL SEAL

51153-26F00-000

Unavailable

9

RING, STOPPER

51156-40301-000

Unavailable

10

WASHER

51158-48H00-000

Unavailable

11

METAL, SLIDE

51167-01D00-000

Unavailable

12

SPRING

51171-48H00-000

Unavailable

13

SEAL, DUST

51173-48H00-000

Unavailable

14

SPACER

51176-48H00-000

Unavailable

15

PIECE, OIL LOCK

51195-48H00-000

Unavailable

16

BOLT

51328-48H00-000

Unavailable

17

CAP

51351-48H00-000

Unavailable

18

WASHER

51356-48H00-000

Unavailable

19

DAMPER ASSY, FRONT FORK LH

51104-48H00-000

Unavailable

20

TUBE, INNER

51110-48H00-000

Unavailable

21

O RING

51117-38260-000

Unavailable

22

TUBE, OUTER

51140-48H00-000

Unavailable

23

CYLINDER

51146-48H00-000

Unavailable

24

.BOLT

51147-05H00-000

Unavailable

25

.GASKET

51148-41310-000

Unavailable

26

OIL SEAL

51153-26F00-000

Unavailable

27

RING, STOPPER

51156-40301-000

Unavailable

28

WASHER

51158-48H00-000

Unavailable

29

METAL, SLIDE

51167-01D00-000

Unavailable

30

SPRING

51171-48H00-000

Unavailable

31

SEAL, DUST

51173-48H00-000

Unavailable

32

SPACER

51176-48H00-000

Unavailable

33

PIECE, OIL LOCK

51195-48H00-000

Unavailable

34

CAP

51351-48H00-000

Unavailable

35

WASHER

51356-48H00-000

Unavailable

36

STABILIZER, FRONT

51471-48H00-000

Unavailable

37

SCREW (6X16)

09139-06030-000

Unavailable
