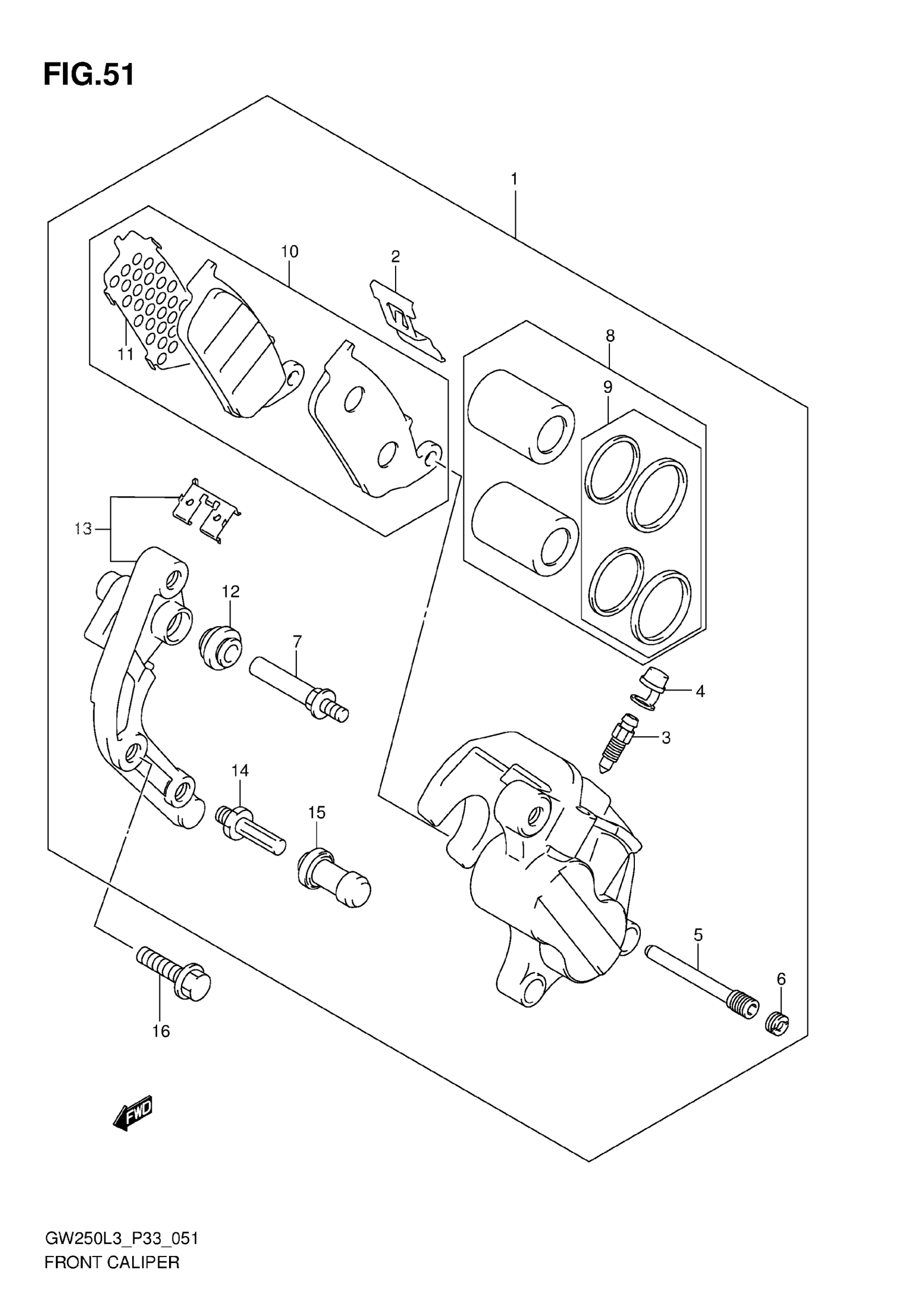

Suzuki GSX-R250L3 (2013) FRONT CALIPER Diagram

#

Description

Price

1

CALIPER ASSY, FRONT LH

59300-48H10-000

Unavailable

2

SPRING, PAD

59115-21E10-000

Unavailable

3

.BLEEDER

59121-01A00-000

Unavailable

4

.CAP,BLEEDER

59122-01A00-000

Unavailable

5

PIN, HANGER

59145-21E10-000

Unavailable

6

.PLUG,PIN

59146-21E10-000

Unavailable

7

PIN

59187-21E10-000

Unavailable

8

PISTON SET

59300-48820-000

Unavailable

9

SEAL SET, PISTON

59300-13820-000

Unavailable

10

PAD SET

59301-48811-000

Unavailable

11

SHIM

59113-48H00-000

Unavailable

12

.BOOT

59303-14500-000

Unavailable

13

BRACKET

59350-48H00-000

Unavailable

14

PIN

59382-14500-000

Unavailable

15

.BOOT

59386-13A00-000

Unavailable

16

BOLT

01550-0830A-000

Unavailable
