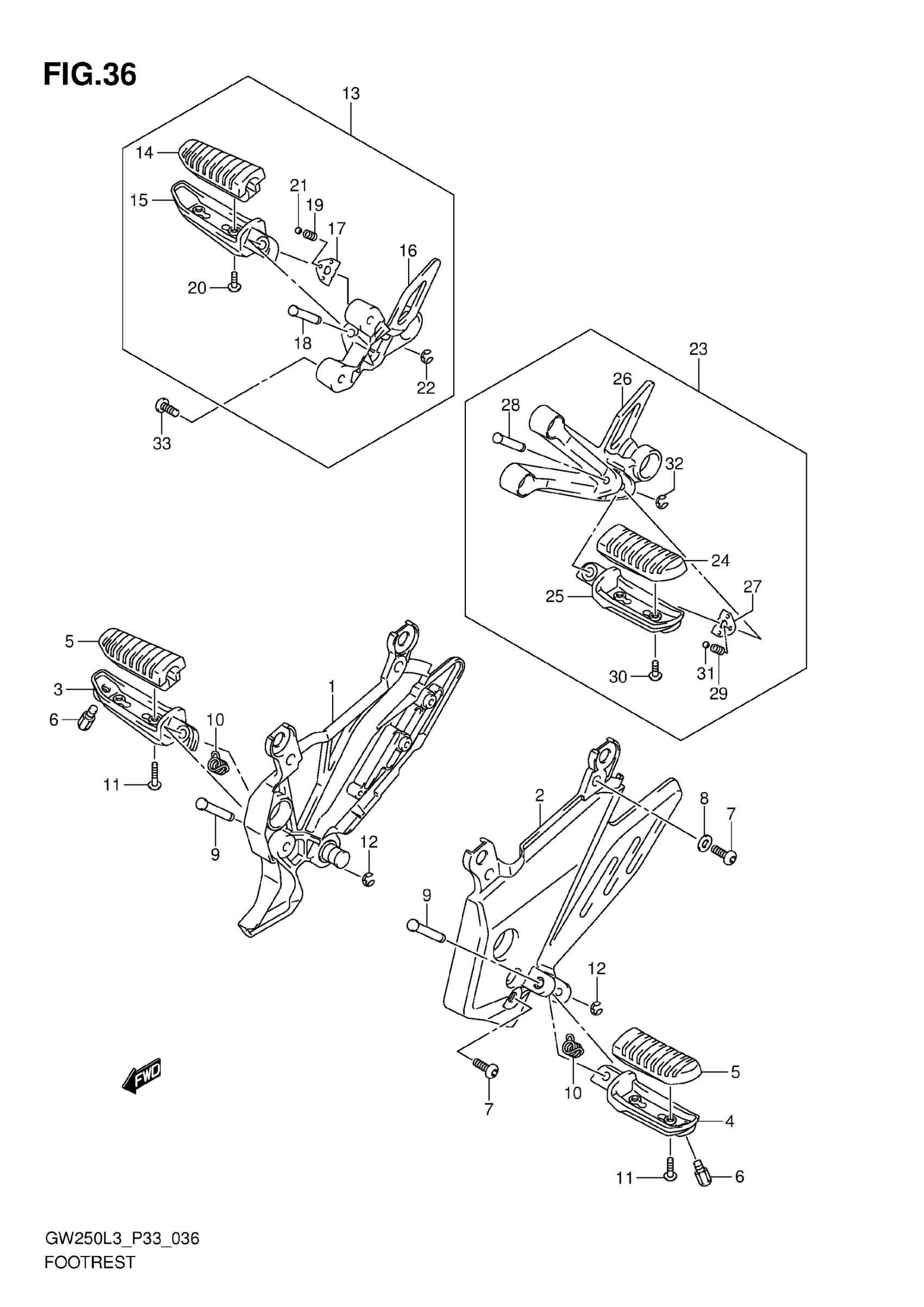

Suzuki GSX-R250L3 (2013) FOOTREST Diagram

#

Description
Price

1

BRACKET, FOOTREST RH

43510-48H00-000

Unavailable

2

BRACKET, FOOTREST LH

43521-48H00-000

Unavailable

3

BAR, FRONT FOOTREST RH

43511-44G10-000

Unavailable

4

BAR, FRONT FOOTREST LH

43521-44G10-000

Unavailable

5

RUBBER, FOOTREST

43550-44G20-000

Unavailable

6

BOLT, BANK SENSOR

43576-48H00-000

Unavailable

7

BOLT (8X20)

09106-08194-000

Unavailable

8

WASHER (9X19X1.0)

09160-09015-000

Unavailable

9

PIN

09208-08022-000

Unavailable

10

SPRING

09448-16033-000

Unavailable

11

SCREW

02142-0512A-000

Unavailable

12

E RING

08332-1106A-000

Unavailable

13

FOOTREST ASSY, PILLION RH

43600-48H00-000

Unavailable

14

.RUBBER,FOOTREST

43550-44G00-000

Unavailable

15

.BAR,PILLION FOOTREST RH

43611-44G00-000

Unavailable

16

BRACKET, PILLION FOOTREST RH

43811-48H00-000

Unavailable

17

PLATE, PILLION FOOTREST

43816-01H10-000

Unavailable

18

PIN

09208-08021-000

Unavailable

19

SPRING

09440-05003-000

Unavailable

20

SCREW

02142-0512A-000

Unavailable

21

.BALL

06111-07004-000

Unavailable

22

E RING

08332-1106A-000

Unavailable

23

FOOTREST ASSY, PILLION LH

43700-48H00-000

Unavailable

24

.RUBBER,FOOTREST

43550-44G00-000

Unavailable

25

.BAR,PILLION FOOTREST LH

43621-44G00-000

Unavailable

26

BRACKET, PILLION FOOTREST LH

43821-48H00-000

Unavailable

27

PLATE, PILLION FOOTREST

43816-01H10-000

Unavailable

28

PIN

09208-08021-000

Unavailable

29

SPRING

09440-05003-000

Unavailable

30

SCREW

02142-0512A-000

Unavailable

31

.BALL

06111-07004-000

Unavailable

32

E RING

08332-1106A-000

Unavailable

33

BOLT (8X23)

09106-08150-000

Unavailable
