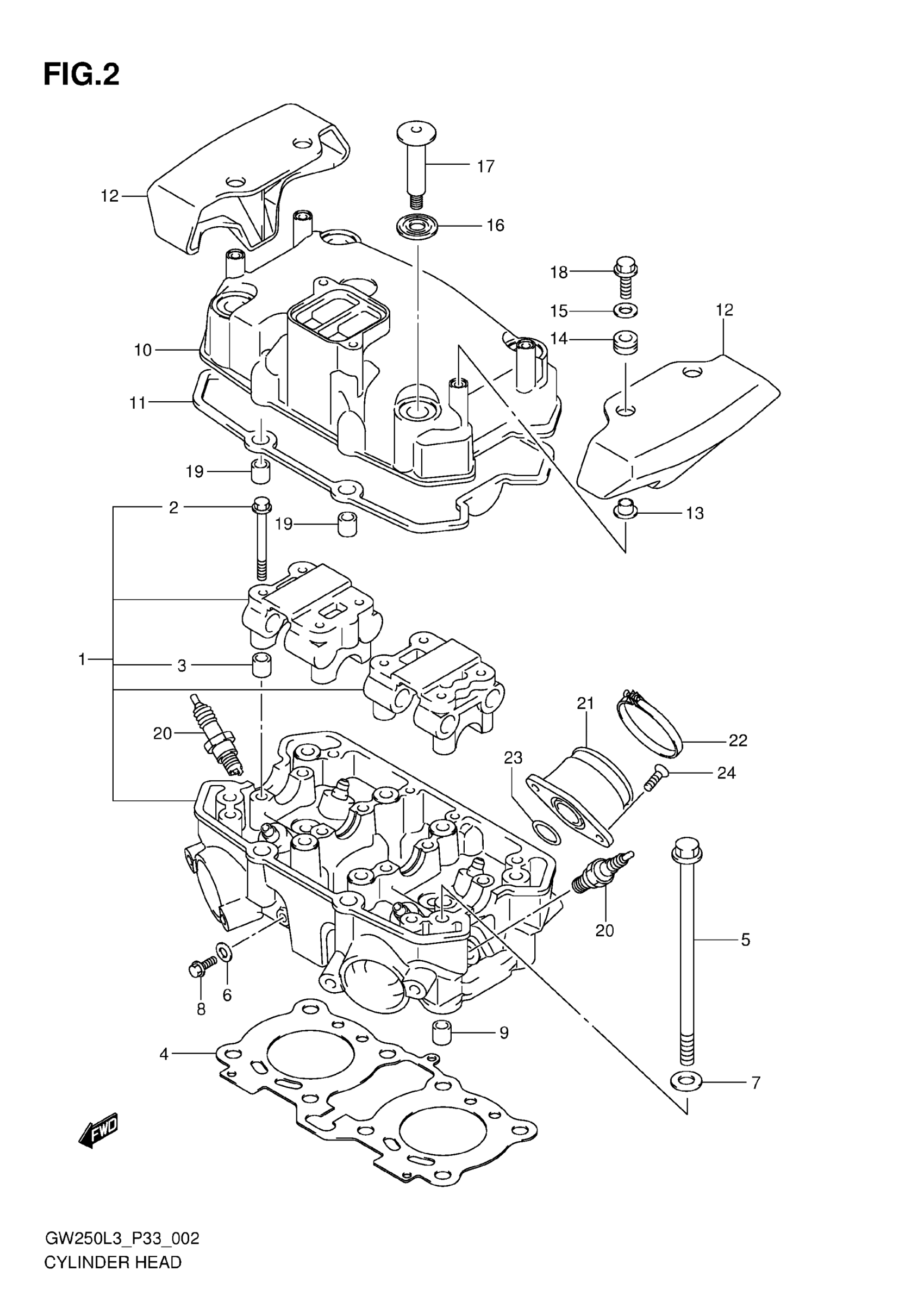

Suzuki GSX-R250L3 (2013) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-48H00-000

Unavailable

2

BOLT (6X60)

09103-06220-000

Unavailable

3

PIN (8X11)

09206-08011-000

Unavailable

4

GASKET, CYLINDER HEAD

11141-48H00-000

Unavailable

5

BOLT (8X165)

09103-08449-000

Unavailable

6

GASKET (6.2X11X1.2)

09168-06L04-000

Unavailable

7

GASKET (8.5X17X2.3)

09168-08036-000

Unavailable

8

BOLT

01550-0612A-000

Unavailable

9

PIN

04211-11129-000

Unavailable

10

COVER, CYLINDER HEAD

11171-48H00-000

Unavailable

11

GASKET, CYLINDER HEAD COVER

11173-48H00-000

Unavailable

12

CAP, CYLINDER HEAD COVER

11174-48H00-000

Unavailable

13

SPACER, HEAD COVER CAP

11177-48H00-000

Unavailable

14

CUSHION, HEAD COVER CAP

11181-48H00-000

Unavailable

15

WASHER (6.5X20X1.2)

09160-06077-000

Unavailable

16

WASHER, CYLINDER HEAD COVER

11191-27E60-000

Unavailable

17

BOLT (7X57)

09106-07022-000

Unavailable

18

BOLT

01547-0620A-000

Unavailable

19

PIN

04211-11129-000

Unavailable

20

SPARK PLUG (NGK, CR7E)

09482-00516-000

Unavailable

20

SPARK PLUG (DENSO, U22ESR-N)

09482-00515-000

Unavailable

21

PIPE, INTAKE

13110-48H00-000

Unavailable

22

CLAMP, INTAKE PIPE

13170-48H00-000

Unavailable

23

O RING (D:2.3,ID:29.7)

09280-30L01-000

Unavailable

24

SCREW

02122-0616A-000

Unavailable
