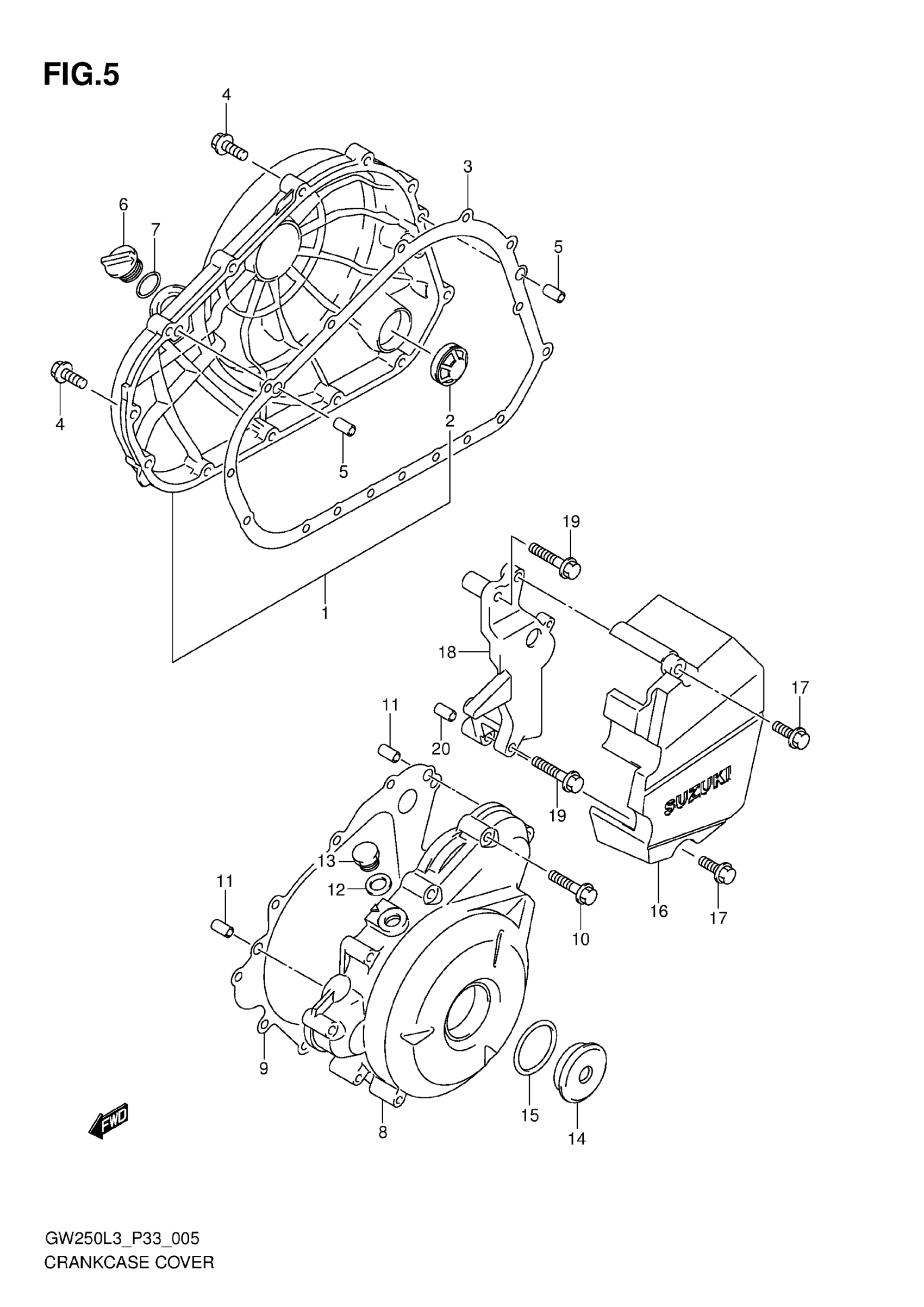

Suzuki GSX-R250L3 (2013) CRANKCASE COVER Diagram

#

Description

Price

1

COVER, CLUTCH

11340-48H00-000

Unavailable

2

LENS, OIL LEVEL CHECK

11971-48H00-000

Unavailable

3

GASKET, CLUTCH COVER

11482-48H00-000

Unavailable

4

BOLT

01547-0630A-000

Unavailable

5

PIN (8.5X18X2.3)

04211-09149-000

Unavailable

6

PLUG, OIL FILLER

11972-48H00-000

Unavailable

7

O-RING (D:3.1,ID:16.8)

09280-17003-000

Unavailable

8

COVER, MAGNETO

11351-48H00-000

Unavailable

9

GASKET, MAGNETO COVER

11483-48H00-000

Unavailable

10

BOLT

01547-0635A-000

Unavailable

11

PIN (8.5X18X2.3)

04211-09149-000

Unavailable

12

GASKET, TDC PLUG

11352-48H00-000

Unavailable

13

PLUG (12X9)

09247-12104-000

Unavailable

14

PLUG (SILVER)

09259-36016-20H

$13.80

15

O RING (D:3.1,ID:32.7)

09280-33004-000

Unavailable

16

COVER, ENGINE SPROCKET

11360-48H00-000

Unavailable

17

BOLT

01547-0625A-000

Unavailable

18

BRACKET, SPEED SENSOR

11371-48H00-000

Unavailable

19

BOLT

01547-0640A-000

Unavailable

20

PIN (8.5X18X2.3)

04211-09149-000

Unavailable
