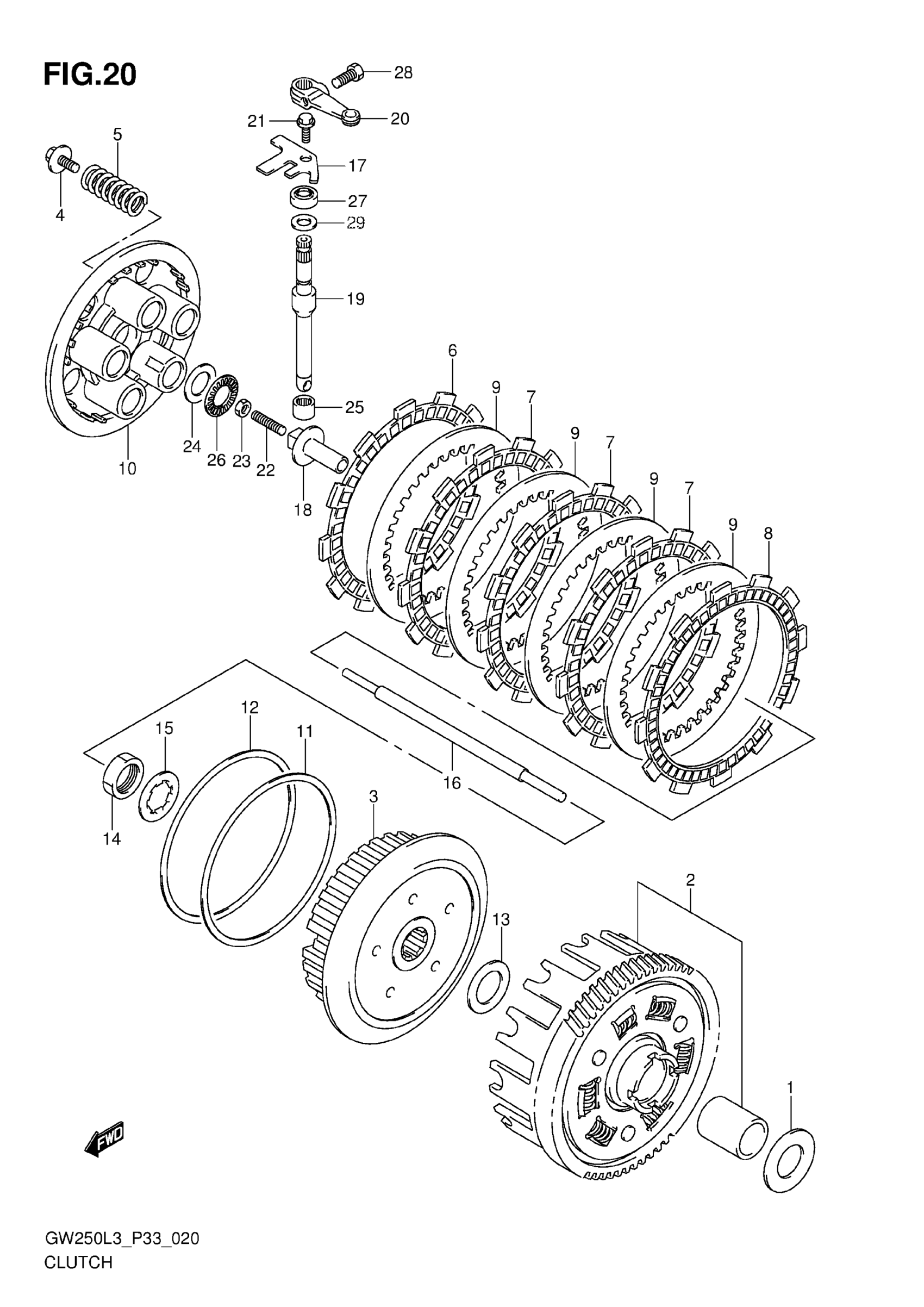

Suzuki GSX-R250L3 (2013) CLUTCH Diagram
#
1
WASHER
08211-22363-000
Unavailable
2
GEAR ASSY, PRIMARY DRIVEN (NT:68)
21200-48870-000
Unavailable
3
HUB, CLUTCH SLEEVE
21411-48H00-000
Unavailable
4
BOLT, CLUTCH SPRING
21412-48H00-000
Unavailable
5
SPRING, CLUTCH
21413-48H00-000
Unavailable
6
PLATE, CLUTCH DRIVE NO.1 (T:3.0)
21441-48H00-000
Unavailable
7
PLATE, CLUTCH DRIVE NO.2 (T:3.0)
21441-48H10-000
Unavailable
8
PLATE, CLUTCH DRIVE NO.3 (T:3.5)
21442-48H00-000
Unavailable
9
PLATE, CLUTCH DRIVEN (T:2.0)
21451-48H00-000
Unavailable
10
DISC, CLUTCH PRESSURE
21462-48H00-000
Unavailable
11
SEAT, WAVE WASHER
21471-48H00-000
Unavailable
12
WASHER, CLUTCH SLEEVE HUB WAVE
21472-48H00-000
Unavailable
13
WASHER, THRUST
21252-48H00-000
Unavailable
14
NUT
09140-22005-000
Unavailable
15
WASHER
09167-22029-000
Unavailable
16
ROD, CLUTCH PUSH
23110-48H00-000
Unavailable
17
RETAINER, CL RELEASE OIL SEAL
23117-48H00-000
Unavailable
18
PIECE, CLUTCH PUSH
23121-48H00-000
Unavailable
19
CAMSHAFT, CLUTCH RELEASE
23122-48H02-000
Unavailable
20
ARM, CLUTCH RELEASE
23271-48H00-000
Unavailable
21
BOLT (6X12)
09103-06233-000
Unavailable
22
SCREW
09134-06018-000
Unavailable
23
NUT
09140-06023-000
Unavailable
24
WASHER (15.5X28X1)
09160-15045-000
Unavailable
25
BEARING (10X14X10)
09263-10L01-000
Unavailable
26
BEARING (15X28X2)
09263-15L01-000
Unavailable
27
OIL SEAL
09285-10L01-000
Unavailable
28
BOLT
01500-0616A-000
Unavailable
29
WASHER (12.5X17X1)
09160-12119-000
Unavailable
