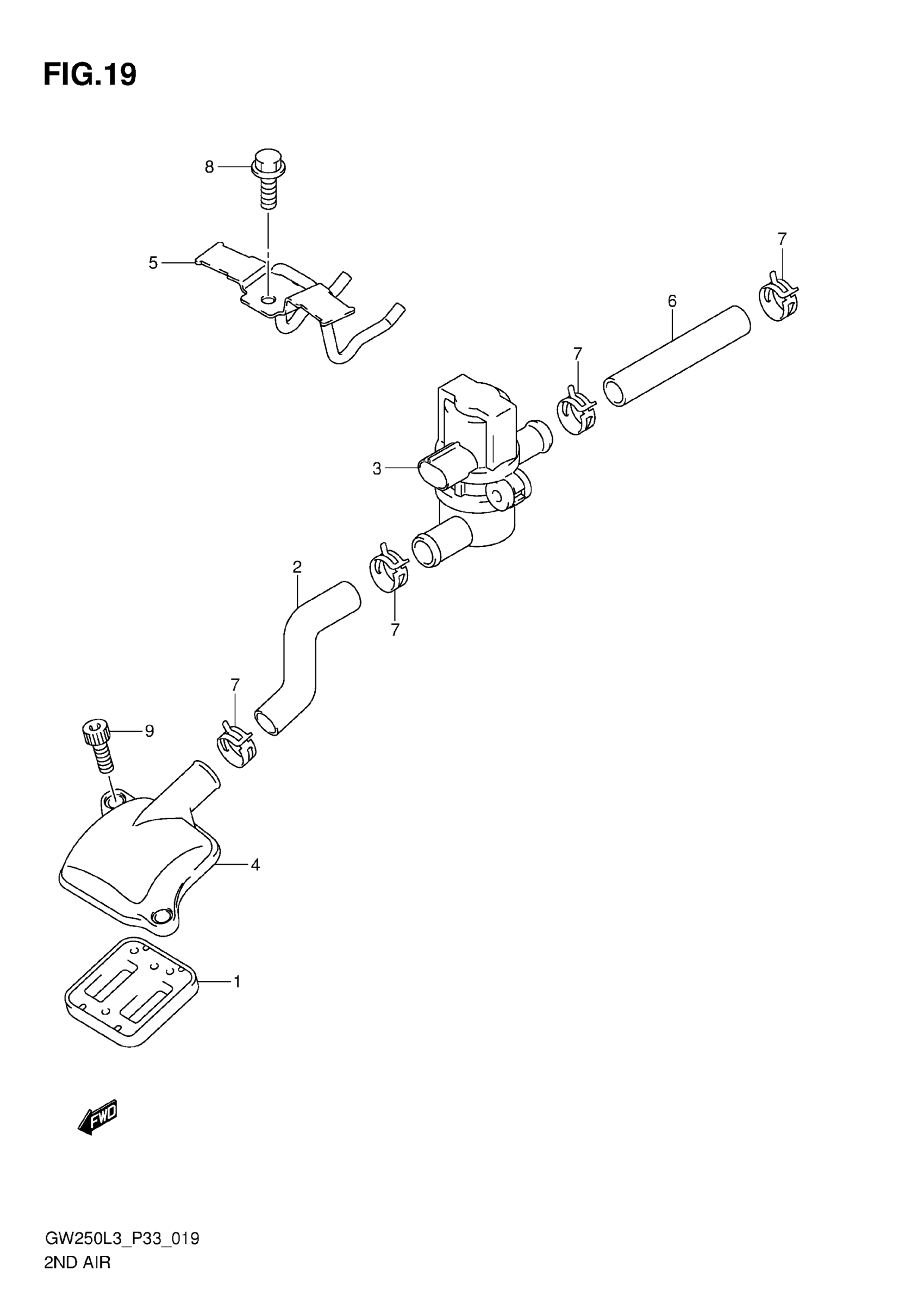

Suzuki GSX-R250L3 (2013) 2ND AIR Diagram

#

Description

Price

1

VALVE ASSY, 2ND AIR REED

18450-48H00-000

Unavailable

2

HOSE, 2ND AIR VALVE

18461-48H00-000

Unavailable

3

VALVE ASSY, AIR CUT

18510-48H00-000

Unavailable

4

COVER, 2ND AIR REED VALVE

18531-48H00-000

Unavailable

5

BRACKET, 2ND AIR VALVE

18610-48H00-000

Unavailable

6

HOSE, 2ND AIR CLEANER

18711-48H00-000

Unavailable

7

CLIP

09401-17L02-000

Unavailable

8

BOLT

01550-0612A-000

Unavailable

9

BOLT (6X16)

07130-0616A-000

Unavailable
