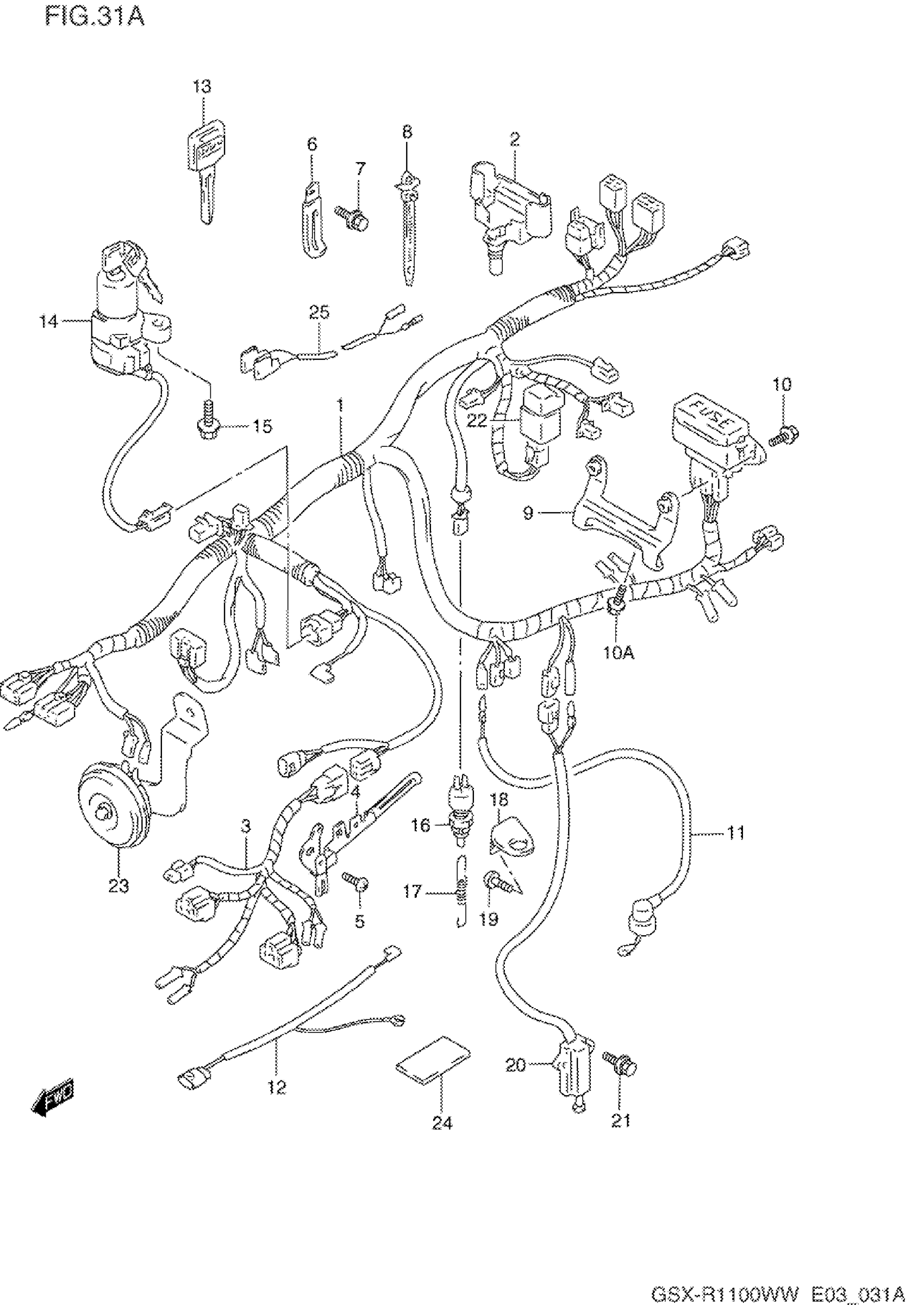

Suzuki GSX-R1100W (1998) WIRING HARNESS (MODEL S/T/V/W) Diagram

#

Description
Price

1

HARNESS, WIRING | Includes Item(s) 2

36610-46E20

Unavailable

2

CAP, STARTER RELAY

31861-17E20

Unavailable

3

HARNESS, WIRING NO.2

36620-17E00

Unavailable

4

HOLDER, COUPLER RH

36680-46E10

Unavailable

4

HOLDER, COUPLER LH

36680-46E00

Unavailable

5

SCREW This part replaces 03541-05083.

03541-0508A

$1.49

6

CLAMP This part replaces 09404-06431.

09404-06039

$1.74

6

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

6

CLAMP

09404-06435

$3.68

7

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

8

CLAMP (L:95)

09407-11401

$2.63

8

CLAMP (L:105)

09407-11402

$1.80

8

CLAMP (L:125)

09407-14403

$2.26

8

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

8

CLAMP

09407-25401

$4.66

9

BRACKET, FUSE BOX

47410-17E00

Unavailable

10

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

10A

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

11

WIRE, OIL PRESSURE

36851-17E10

Unavailable

12

WIRE, WATER TEMP GAUGE

36852-46E10

Unavailable

13

KEY, BLANK | OPT This part replaces 37146-46E00.

37146-33E00

$21.21

14

SWITCH ASSY, IGNITION | MODEL S/T This part replaces 37100-46E20.

37100-46E21

Unavailable

14

SWITCH ASSY, IGNITION | MODEL V/W

37100-46E21

Unavailable

15

BOLT, STEERING LOCK (8X20) This part replaces 09119-08082.

37152-17K00

$3.68

16

SWITCH ASSY, STOP LAMP

37740-24A00

$18.20

17

SPRING

09443-06012

$3.16

18

BRACKET, SWITCH

43250-33C00

Unavailable

19

BOLT

09139-06027

$2.16

20

SWITCH ASSY,SID This part replaces 37840-26X50.

37840-26X52

$74.31

21

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

22

RELAY ASSY. SIDE STAND

38740-24X50

$45.20

23

HORN ASSY, LOW | <-38502-17E11

38502-17E12

Unavailable

24

PROTECTOR | MODEL S/T

36920-02200

$3.37

24

PROTECTOR | MODEL V/W

36920-10B00

Unavailable

25

WIRE, CLUTCH SWITCH LEAD

36852-19D00

Unavailable
