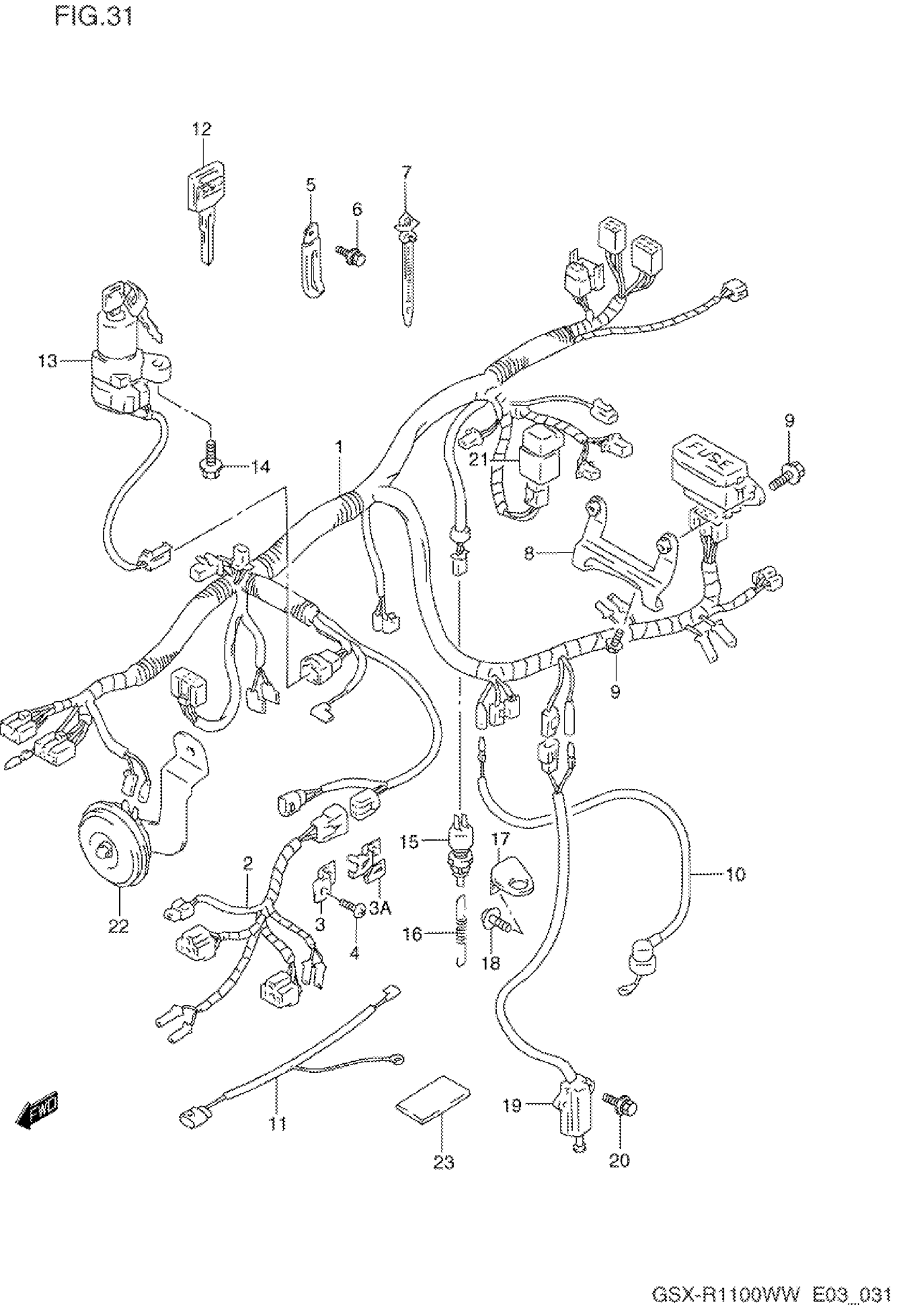

Suzuki GSX-R1100W (1998) WIRING HARNESS (MODEL P/R) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 36610-46E10.

36610-17E13

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 36610-46E12.

36610-17E13

Unavailable

2

WIRE,HEADLAMP L This part replaces 36620-17E10.

36856-18D01

Unavailable

3

HOLDER, COUPLER NO.1

36687-17E00

Unavailable

3A

HOLDER, COUPLER NO.1

36687-17E10

Unavailable

4

SCREW This part replaces 02142-05103.

02142-0510B

$1.78

5

CLAMP This part replaces 09404-06413.

09404-06039

$1.74

5

CLAMP This part replaces 09404-06206.

09404-06039

$1.74

5

CLAMP(L:80) This part replaces 09404-06426.

09404-06036

$1.74

5

CLAMP (L:82) This part replaces 09404-10403.

09404-10205

Unavailable

6

BOLT

01550-06107

$2.80

7

CLAMP (L:75)

09407-11402

$1.80

7

CLAMP (L:125)

09407-14403

$2.26

7

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

7

CLAMP (L:235)

09407-25401

$4.66

8

BRACKET, FUSE BOX

47410-17E00

Unavailable

9

BOLT, BRACKET

01550-06127

$2.30

10

WIRE,OIL PRESSU This part replaces 36851-46E00.

36851-46E01

Unavailable

11

WIRE, WATER TEMP GAUGE | MODEL P

36852-46EZ0

Unavailable

11

WIRE, WATER TEMP GAUGE | MODEL R

36852-46E10

Unavailable

12

KEY, BLANK | OPT

37146-26D10

$49.70

13

LOCK ASSY, STEERING | MODEL P This part replaces 37100-33D00.

37100-26D03

$194.77

13

LOCK ASSY, STEERING | MODEL R This part replaces 37100-26D02.

37100-26D03

$194.77

14

BOLT

09139-06026

$2.50

15

SWITCH ASSY, STOP LAMP

37740-24A00

$18.20

16

SPRING

09443-06012

$3.16

17

BRACKET, SWITCH

43250-33C00

Unavailable

18

BOLT

09139-06027

$2.16

19

SWITCH ASSY,SID This part replaces 37840-32C01.

37840-32C02

Unavailable

20

BOLT | MODEL P This part replaces 01517-06164.

01550-0616A

$1.97

20

BOLT | MODEL R This part replaces 01550-06163.

01550-0616A

$1.97

21

RELAY ASSY, SIDE STAND | MODEL P This part replaces 38740-24B10.

38740-24X50

$45.20

21

RELAY ASSY, SIDE STAND | MODEL R

38740-24X50

$45.20

22

HORN ASSY, LOW This part replaces 38502-17E00.

38502-17E12

Unavailable

23

PROTECTOR

36920-10B00

Unavailable

24

REFER TO FIG.31A(F-11) FOR

SPECIAL NOTE

Unavailable
