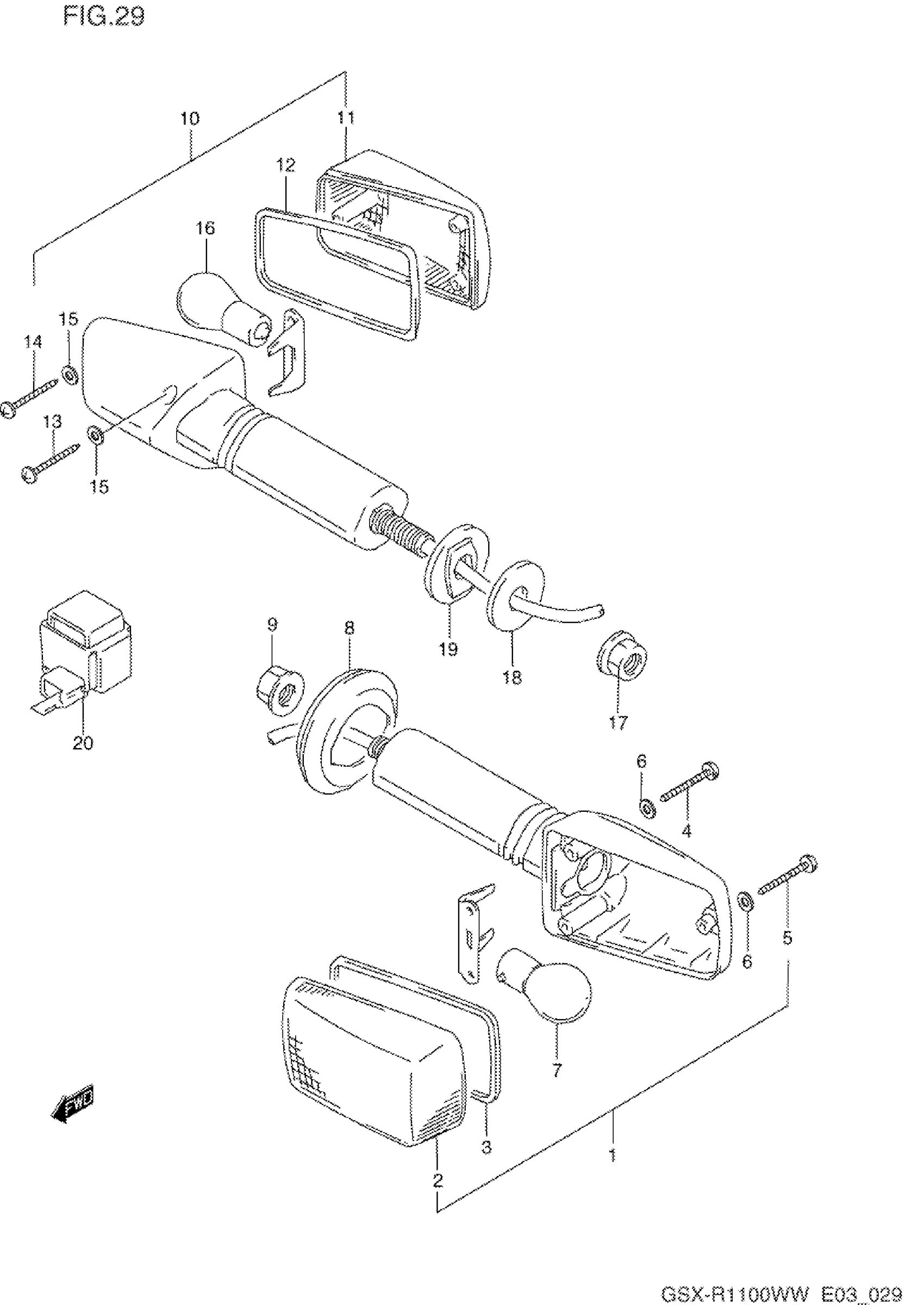

Suzuki GSX-R1100W (1998) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL | MODEL P/R

35601-01D10

Unavailable

1

LAMP ASSY,FRONT TURNSIGNAL | MODEL S This part replaces 35601-29E10.

35601-29E30

$84.63

1

LAMP ASSY,FRONT TURNSIGNAL | MODEL T/V/W; Includes Item(s) 2 - 7

35601-29E30

$84.63

2

LENS

35612-17C20

$10.69

3

GASKET

35613-27A00

$4.52

4

TAPPING SCREW

35623-27A00

$1.65

5

TAPPING SCREW

35725-40511

$1.91

6

GASKET

35627-27A02

$1.58

7

BULB (12V,21W)

09471-12045

$3.27

8

GROMMET

35674-27A01

$9.58

9

NUT | MODEL P This part replaces 08316-26105.

08316-2010B

$3.43

9

NUT | MODEL R This part replaces 08316-20103.

08316-2010B

$3.43

9

NUT | MODEL S/T/V/W This part replaces 08310-00103.

08310-0010A

$1.84

10

LAMP ASSY, REAR TURNSIGNAL | MODEL P/R

35601-17C41

Unavailable

10

LAMP ASSY, REAR TURNSIGNAL | MODEL S/T/V/W; Includes Item(s) 11 - 16

35603-21EC0

Unavailable

11

LENS | MODEL P/R

35612-17C20

$10.69

11

LENS | MODEL S/T/V/W

35652-17C20

$10.28

12

GASKET

35613-27A00

$4.52

13

TAPPING SCREW

35623-27A00

$1.65

14

TAPPING SCREW

35725-40511

$1.91

15

GASKET

35627-27A02

$1.58

16

BULB (12V,21W)

09471-12045

$3.27

17

NUT | MODEL P/R This part replaces 08316-20103.

08316-2010B

$3.43

17

NUT | MODEL S/T/V/W This part replaces 08310-00103.

08310-0010A

$1.84

18

WASHER | MODEL P/R

09160-10094

$3.16

18

WASHER | MODEL S/T/V/W

09160-10501

$2.33

19

SPACER

35695-17C00

$4.03

20

RELAY ASSY, TURNSIGNAL | MODEL P/R/S/T/V

38610-45D01

$78.73

20

RELAY ASSY | MODEL W This part replaces 38610-26E00.

38610-26E01

$58.97
