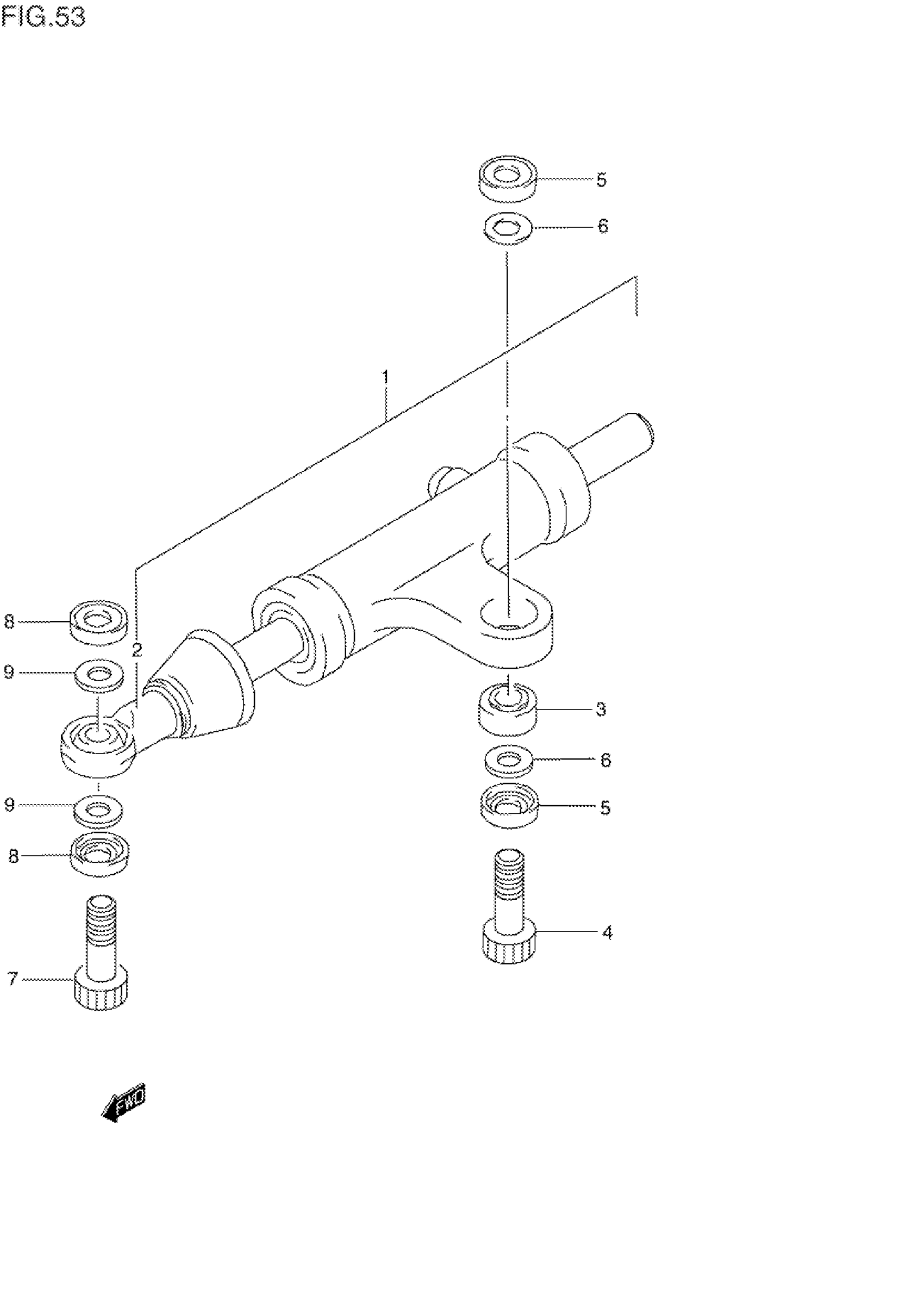

Suzuki GSX-R1100W (1998) STEERING DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, STEERING | Includes Item(s) 2 - 3

51750-46E00

Unavailable

2

END, ROD

51760-40C01

Unavailable

3

BEARING

09269-08003

$46.80

4

BOLT | MODEL P/R

07130-08307

$4.98

4

BOLT, STEERING DAMPER | MODEL S/T/V/W This part replaces 07130-08303.

07130-0830A

$2.80

5

DUST SEAL TORQU This part replaces 64339-40410.

64339-40411

$6.62

6

SHIM (8X12X0.8) | MODEL P/R/S/T This part replaces 08221-08126.

09181-08106

$2.38

6

SHIM | MODEL V/W

09181-08106

$2.38

7

BOLT | MODEL P/R

07130-08307

$4.98

7

BOLT, STEERING DAMPER | MODEL S/T/V/W This part replaces 07130-08303.

07130-0830A

$2.80

8

DUST SEAL TORQU This part replaces 64339-40410.

64339-40411

$6.62

9

SHIM (8X12X0.8) | MODEL P/R/S/T This part replaces 08221-08126.

09181-08106

$2.38

9

SHIM | MODEL V/W

09181-08106

$2.38
