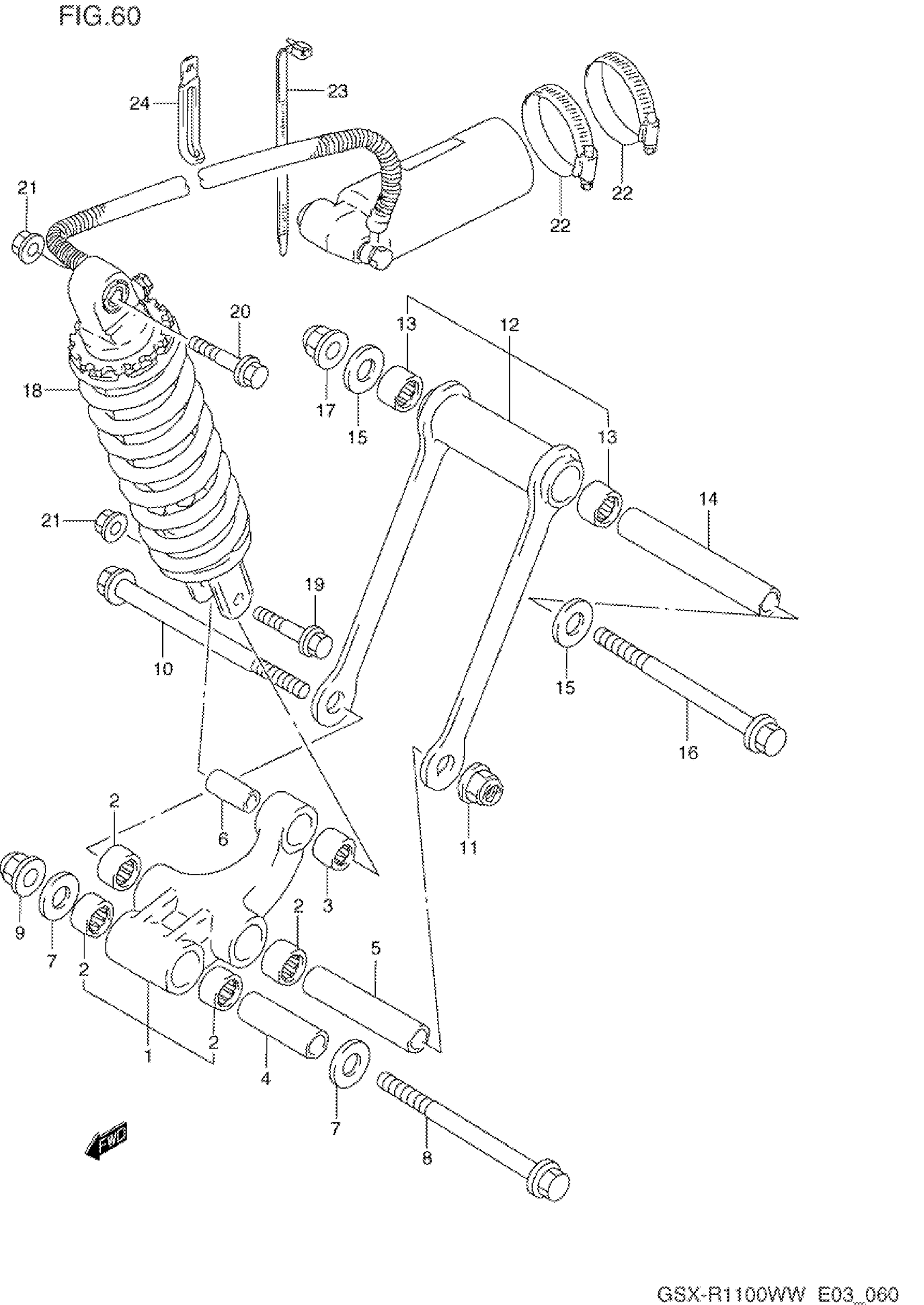

Suzuki GSX-R1100W (1998) REAR CUSHION LEVER (MODEL P/R) Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 3

62600-40830

Unavailable

2

BEARING (20X27X23.5)

09263-20071

$23.72

3

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$19.09

4

SPACER, FRONT

62317-17C00

Unavailable

5

SPACER, CENTER

62317-40C10

Unavailable

6

SPACER, REAR

62684-40A10

$11.44

7

WASHER, FRONT

08211-14323

$4.18

8

BOLT, FRONT (14X112)

62621-17C00

$26.03

9

NUT This part replaces 08319-31148.

08319-3114A

$8.84

10

BOLT, CENTER (14X124)

62658-40C10

Unavailable

11

NUT This part replaces 08319-31148.

08319-3114A

$8.84

12

ROD SET, REAR CUSHION LEVER | Includes Item(s) 13

62600-17840

Unavailable

13

BEARING (20X27X23.5)

09263-20071

$23.72

14

SPACER, ROD (14X20X122)

09180-14022

Unavailable

15

WASHER, ROD

08211-14321

$4.18

16

BOLT, ROD (14X161)

09103-14019

Unavailable

17

NUT This part replaces 08319-31148.

08319-3114A

$8.84

18

ABSORBER ASSY, REAR SHOCK

62100-46E00

Unavailable

19

BOLT, LOWER (10X58)

09103-10027

$5.00

20

BOLT, UPPER (10X54) | MODEL P

09103-10101

$4.35

20

BOLT, UPPER (10X58) | MODEL R

09103-10027

$5.00

21

NUT

08319-31107

$2.73

22

CLAMP This part replaces 09402-43501.

09402-50511

$12.75

23

CLAMP

09407-18402

$2.21

24

CLAMP This part replaces 09404-08413.

09404-08420

$2.90

25

REFER TO FIG.60A(L- 7) FOR

SPECIAL NOTE

Unavailable
