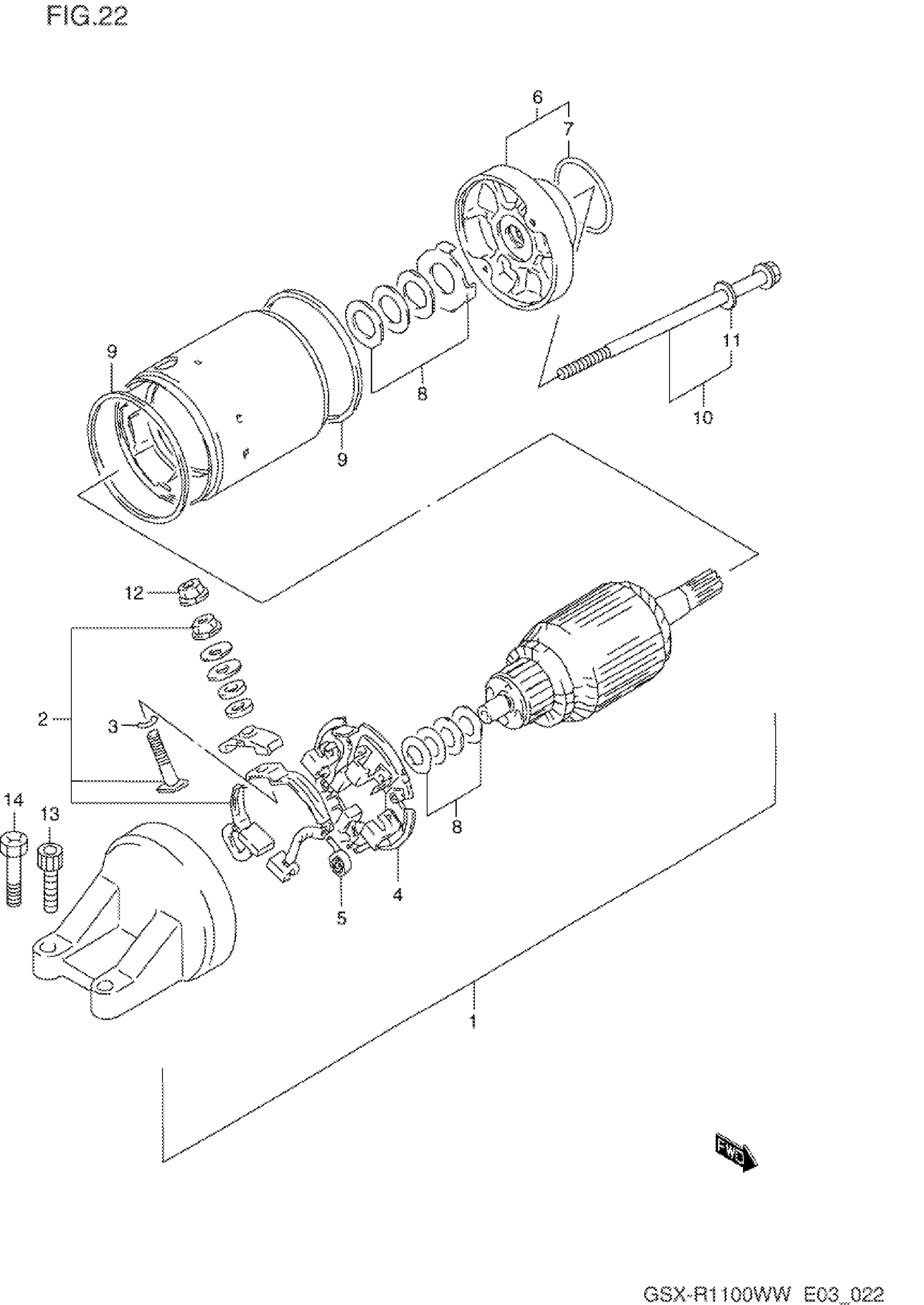

Suzuki GSX-R1100W (1998) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 11

31100-46E00

Unavailable

2

TERMINAL SET, BRUSH | MODEL P/R

31130-19B10

$28.15

2

TERMINAL SET, BRUSH | MODEL S/T/V/W

31130-38300

$18.43

3

O RING | MODEL P/R

31143-49040

$3.71

3

O RING | MODEL S/T/V/W

31143-38300

$5.10

4

BRUSH HOLDER SET | MODEL P/R

31132-46E00

Unavailable

4

BRUSH HOLDER SET | MODEL S/T/V/W

31132-17E00

Unavailable

5

SPRING, BRUSH | MODEL P/R

31135-31300

$4.96

5

SPRING, BRUSH | MODEL S/T/V/W

31135-65010

$4.52

6

BRACKET ASSY, FRONT | MODEL P/R

31150-46E00

Unavailable

6

BRACKET ASSY, FRONT | MODEL S

31150-17E00

Unavailable

6

BRACKET ASSY, FRONT | MODEL T/V/W

31150-17E01

Unavailable

7

.O RING | MODEL P/R This part replaces 31156-46E00.

31156-48B00

$12.02

7

O RING | MODEL S/T/V/W

31156-48B00

$12.02

8

WASHER SET | MODEL P/R

31170-19B10

$12.57

8

WASHER SET | MODEL S/T/V/W

31170-43400

Unavailable

9

O RING | MODEL P/R This part replaces 31264-31300.

31264-32E00

$6.68

9

O RING | MODEL S/T/V/W

31264-44110

$11.87

10

BOLT ASSY | MODEL P/R

31280-19B10

Unavailable

10

BOLT | MODEL S/T/V/W

31281-88C00

Unavailable

11

O RING | MODEL P/R

31143-49040

$3.71

11

O RING | MODEL S/T/V/W

31143-38300

$5.10

12

NUT This part replaces 08361-35068.

08361-3506A

$1.80

13

BOLT | MODEL P/R

07120-06257

$3.05

14

BOLT, STARTING MOTOR | MODEL S/T/V/W This part replaces 09128-06024.

09103-06212

$2.47
