1998 Suzuki GSX-R1100W Stand Diagram

← All diagrams

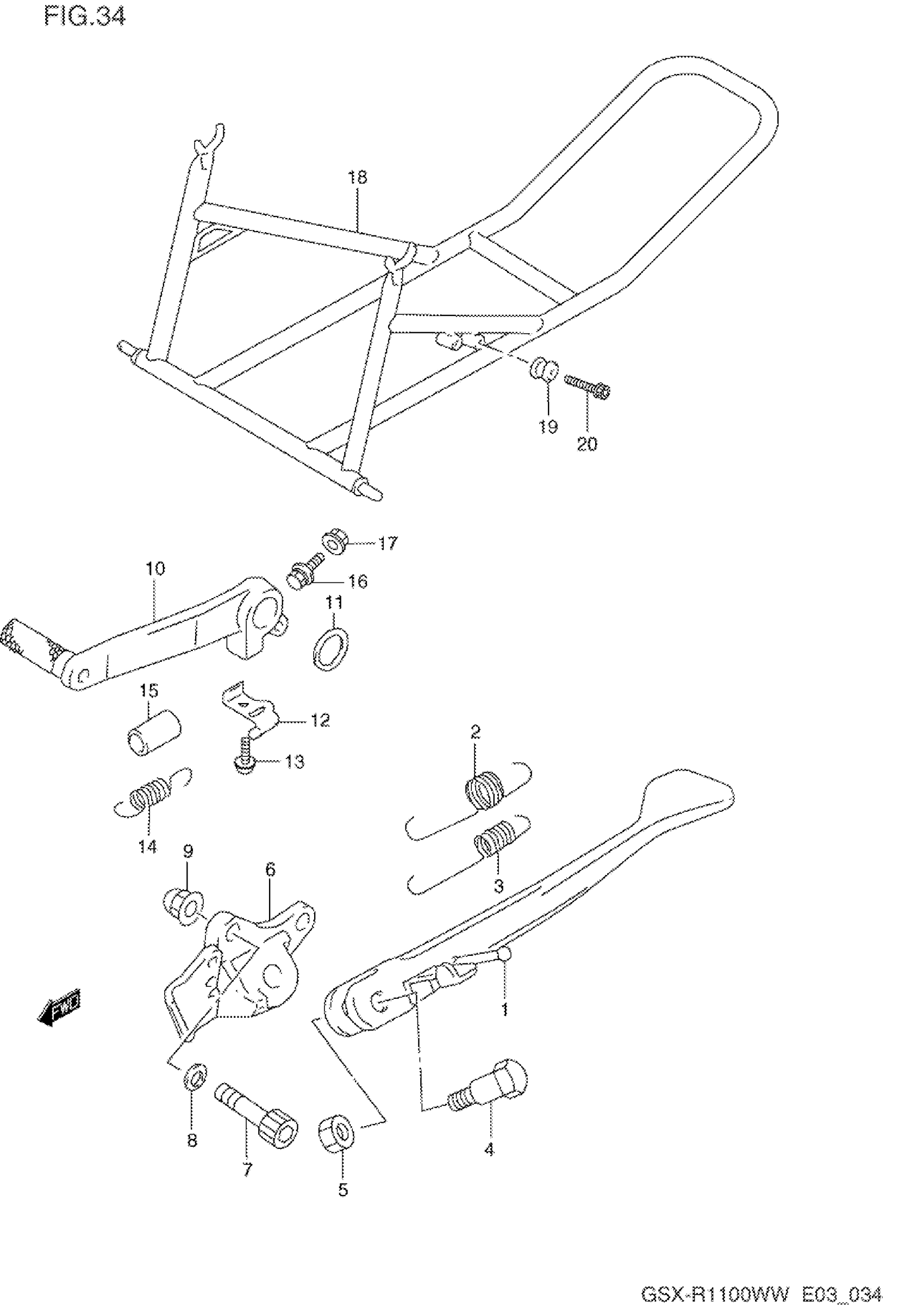

Find the part on the Stand diagram for your 1998 Suzuki GSX-R1100W, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Suzuki GSX-R1100W Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP | MODEL P/R This part replaces 42310-46E00.

42310-46E01

1
Out of stock

1

STAND, PROP | MODEL S/T

42310-46E01

1
Out of stock

1

STAND, PROP | MODEL V/W

42310-46E10

1
Out of stock

2

SPRING, INNER

09443-14058

1
Out of stock

3

SPRING, OUTER

09443-19011

1
Out of stock

4

BOLT

09111-10036

1
Out of stock

5

NUT | MODEL P

08310-00107

1
Out of stock

5

NUT | MODEL R

09140-10043

1
Out of stock

5

NUT | MODEL S/T/V/W

09159-10097

1
Out of stock

6

BRACKET, PROP STAND

42330-46E00

1
Out of stock

7

BOLT,10X38 This part replaces 09106-10033.

09106-10033-XC0

2
Out of stock

8

WASHER | MODEL P/R/S

09164-10010

2
Out of stock

8

WASHER | MODEL T This part replaces 09164-10005.

09164-10010

2
Out of stock

8

WASHER | MODEL V/W

09164-10010

2
Out of stock

9

NUT

08319-31107

2
Out of stock

10

PEDAL, BRAKE | MODEL P/R This part replaces 43110-46E01.

43111-46E10

1
Out of stock

10

PEDAL, BRAKE | MODEL S/T/V/W

43111-46E10

1
Out of stock

11

WASHER

09160-18022

1
Out of stock

12

HOOK, RETURN

43563-46E10

1
Out of stock

13

BOLT

09139-06027

1
Out of stock

14

SPRING

09443-13018

1
Out of stock

15

TUBE, SPRING

43261-17C00

1
Out of stock

16

BOLT This part replaces 01500-05203.

01500-0520B

1
Out of stock

17

NUT

08310-00057

1
Out of stock

18

NO DESCRIPTION AVAILABLE | OPT This part replaces 42100-17C00.

99950-70043-RAC

1
Out of stock

19

HOLDER, STAND | OPT

61165-27A30

2
Out of stock

20

BOLT, STEERING DAMPER | OPT,MODEL P This part replaces 07110-08305.

07130-0830A

2
Out of stock

20

BOLT, STEERING DAMPER | OPT,MODEL R/S/T/V/W This part replaces 07130-08303.

07130-0830A

2
Out of stock
