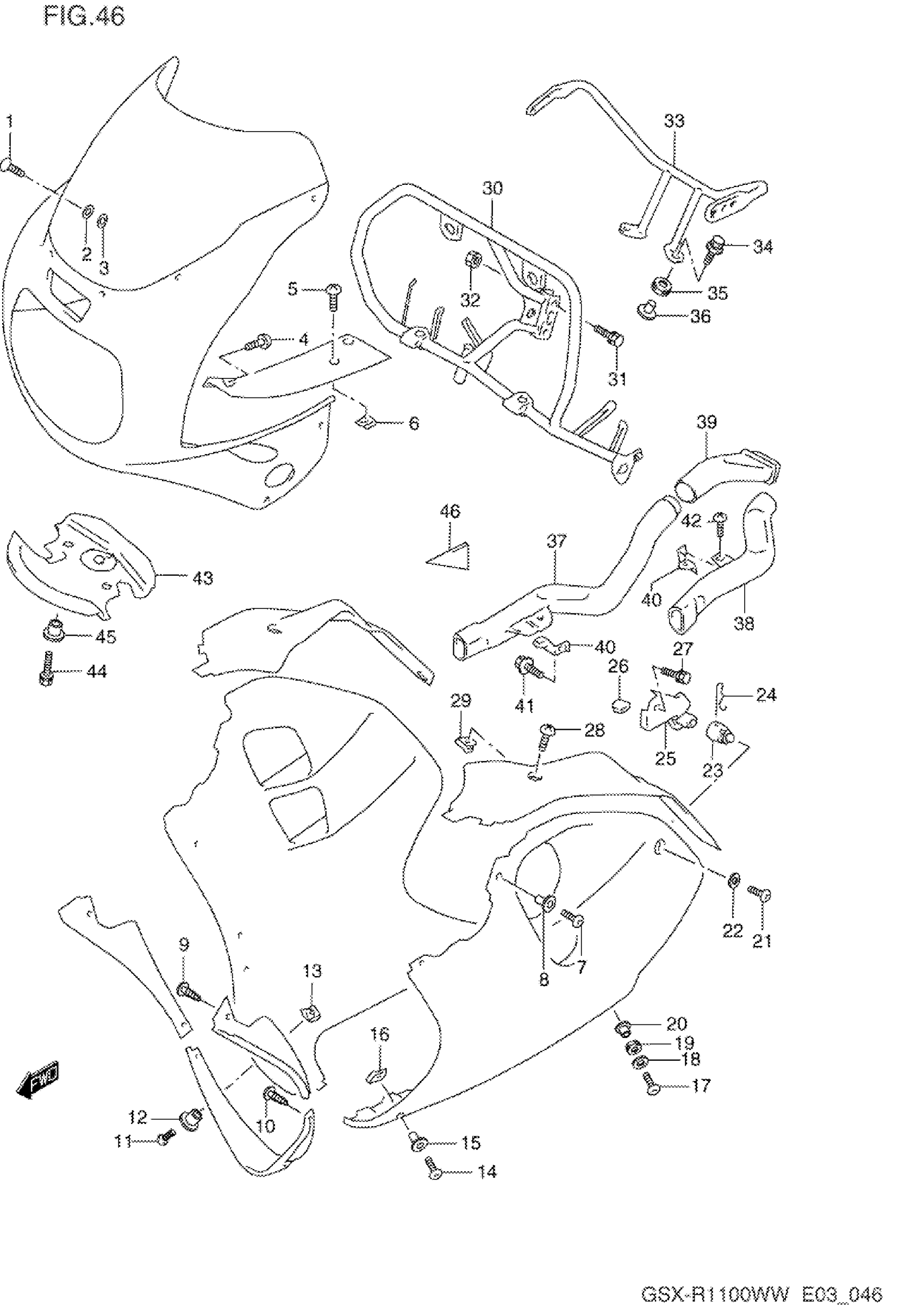

Suzuki GSX-R1100W (1998) INSTALLATION PARTS (MODEL P/R) Diagram

#

Description
Price

1

PIN, SCREEN (4X11)

94616-22D00

$2.80

2

CUSHION This part replaces 09320-04007.

09320-04501

$3.18

3

NUT

09148-04032

$1.68

4

.SCREW | MODEL P This part replaces 02142-05124.

02142-0512A

$1.37

4

.SCREW | MODEL R This part replaces 02142-05123.

02142-0512A

$1.37

5

SCREW | MODEL P This part replaces 03242-05124.

03241-0512A

$1.36

5

SCREW | MODEL R This part replaces 03241-05123.

03241-0512A

$1.36

6

NUT

09148-05013

$1.94

7

SCREW, COWLING (5X18)

09139-05032

$2.00

8

WASHER

09161-05018

Unavailable

9

SCREW | MODEL P This part replaces 03541-05108.

03541-0510A

$1.43

9

SCREW | MODEL R This part replaces 03541-05103.

03541-0510A

$1.43

10

SCREW | MODEL P This part replaces 03541-05108.

03541-0510A

$1.43

10

SCREW | MODEL R This part replaces 03541-05103.

03541-0510A

$1.43

11

SCREW, UNDER RH (5X18)

09139-05032

$2.00

12

WASHER

09161-05017

$2.80

13

NUT COWL This part replaces 94484-32B00.

94484-24F00

$3.63

14

SCREW, UNDER LH (5X18)

09139-05032

$2.00

15

WASHER

09161-05017

$2.80

16

NUT COWL This part replaces 94484-32B00.

94484-24F00

$3.63

17

SCREW, UNDER (6X25)

09139-06029

$4.84

18

WASHER

09160-06056

$1.73

19

CUSHION

09320-09016

$1.97

20

WASHER

09169-06062

$2.50

21

SCREW, UNDER REAR (6X20)

09139-06028

$3.33

22

WASHER This part replaces 09160-06053.

09160-06125

$1.89

23

PLUG, UNDER COWLING

94520-12C00

$13.20

24

PIN,UNDER COWL This part replaces 94523-12C00.

94523-12C0V

$4.83

25

BRACE, UNDER RH

94530-17E01

Unavailable

25

BRACE, UNDER LH

94540-17E01

$28.60

26

CUSHION, BRACE

94551-17E00

Unavailable

27

BOLT | MODEL P This part replaces 01137-06125.

01570-0612A

$2.87

27

BOLT | MODEL R This part replaces 01570-06123.

01570-0612A

$2.87

28

SCREW | MODEL P This part replaces 03242-05124.

03241-0512A

$1.36

28

SCREW | MODEL R This part replaces 03241-05123.

03241-0512A

$1.36

29

NUT

09148-05013

$1.94

30

BRACE,COWLING This part replaces 94510-46E00.

94510-46E02

Unavailable

31

BOLT | MODEL P This part replaces 01137-08358.

01500-0835B

$2.80

31

BOLT | MODEL R This part replaces 01570-08353.

01570-0835A

$2.90

32

NUT | MODEL P This part replaces 08313-21087.

08313-20087

$2.19

32

NUT | MODEL R This part replaces 08313-20083.

08313-2008B

$3.13

33

BRACE, COWLING REAR

94520-46E00

Unavailable

34

BOLT (6X20) This part replaces 09116-06143.

09116-06115

$1.97

35

CUSHION

09320-09009

$4.19

36

WASHER

09169-06062

$2.50

37

PIPE, AIR INTAKE RH

94451-46E00

Unavailable

38

PIPE, AIR INTAKE LH

94452-46E00

Unavailable

39

PIPE, AIR INTAKE REAR RH

94453-46E00

Unavailable

40

BRACKET, AIR INTAKE RH

94454-17E01

Unavailable

40

BRACKET, AIR INTAKE LH

94455-17E01

Unavailable

41

BOLT | MODEL P This part replaces 01137-06125.

01570-0612A

$2.87

41

BOLT, CLAMP | MODEL R This part replaces 01550-06123.

01550-0612A

$1.97

41

BOLT | MODEL P,CALIFORNIA ONLY This part replaces 01137-06125.

01570-0612A

$2.87

41

BOLT, CLAMP | MODEL R,CALIFORNIA ONLY This part replaces 01550-06123.

01550-0612A

$1.97

42

SCREW | MODEL P This part replaces 02142-06125.

02142-0612A

$1.37

42

SCREW | MODEL R This part replaces 02142-06123.

02142-0612A

$1.37

42

SCREW | MODEL P,CALIFORNIA ONLY This part replaces 02142-06125.

02142-0612A

$1.37

42

SCREW | MODEL R,CALIFORNIA ONLY This part replaces 02142-06123.

02142-0612A

$1.37

43

COVER, COWLING FRONT

94457-46E00

Unavailable

44

BOLT | MODEL P This part replaces 01137-06165.

01570-0616A

$2.24

44

BOLT | MODEL R This part replaces 01570-06163.

01570-0616A

$2.24

45

WASHER

09169-06041

$1.97

46

CUSHION, AIR INTAKE RH

94476-46E00

Unavailable

47

REFER TO FIG.48(J- 7) FOR

SPECIAL NOTE

Unavailable
