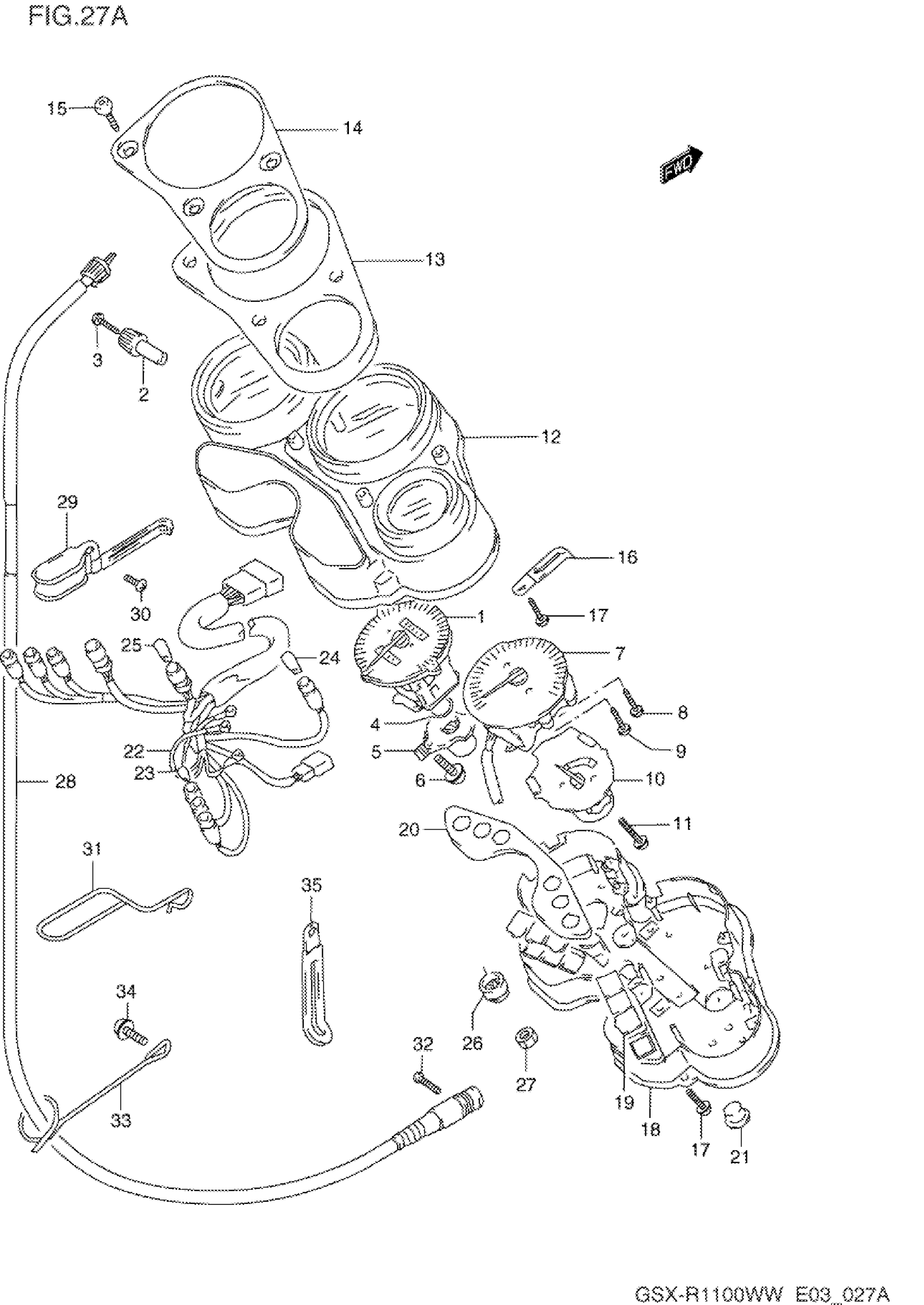

Suzuki GSX-R1100W (1998) SPEEDOMETER (MODEL S/T/V/W) Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO)

34120-46E21

Unavailable

2

KNOB, TRIP

34124-17E00

Unavailable

3

SCREW (2X6)

09139-02003

$1.65

4

O RING

34132-17E00

Unavailable

5

BOX, METER GEAR | MODEL S/T/V This part replaces 34131-33450.

34131-19B00

Unavailable

5

BOX, METER GEAR | MODEL W

34131-19B00

Unavailable

6

SCREW This part replaces 02112-74103.

02112-7410B

$2.72

7

TACHOMETER

34220-46E11

Unavailable

8

SCREW (4X22)

34249-17E00

Unavailable

9

SCREW (3X10)

34149-19D00

Unavailable

10

METER, TEMPARATURE

34420-17E00

Unavailable

11

SCREW (3X22)

34383-09400

Unavailable

12

HOOD

34150-17E30

Unavailable

13

CUSHION

34961-17E01

Unavailable

14

PANEL, METER

34960-46E10

Unavailable

15

SCREW

34186-17E00

Unavailable

16

CLAMP

09404-06429

$1.83

17

SCREW This part replaces 03541-04163.

03541-0416A

$1.49

18

CASE, METER | Includes Item(s) 19 - 20

34111-46E20

Unavailable

19

LENS SET

36300-46830

Unavailable

20

PANEL

36386-17E00

Unavailable

21

CAP

34198-17E00

Unavailable

22

SOCKET

34170-46E30

Unavailable

23

BULB (12V,3W)

09471-12103

$3.83

24

.BULB (12V1.7W)

09471-12108

$3.42

25

BULB (12V,1.7W)

09471-12077

$3.55

26

DAMPER

34955-17E00

Unavailable

27

NUT (M6)

09159-06076

$2.81

28

CABLE ASSY, SPEEDOMETER

34910-24D10

Unavailable

29

GUIDE, CABLE NO.1

34938-46E10

Unavailable

30

SCREW This part replaces 03541-05083.

03541-0508A

$1.49

31

GUIDE,METER CAB This part replaces 34938-17E30.

34938-17E3V

Unavailable

32

.SCREW This part replaces 02112-05163.

02112-0516A

$1.49

33

GUIDE, CABLE NO.3

34939-45000

Unavailable

34

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49

35

CLAMP This part replaces 09404-06432.

09404-06039

$1.74
