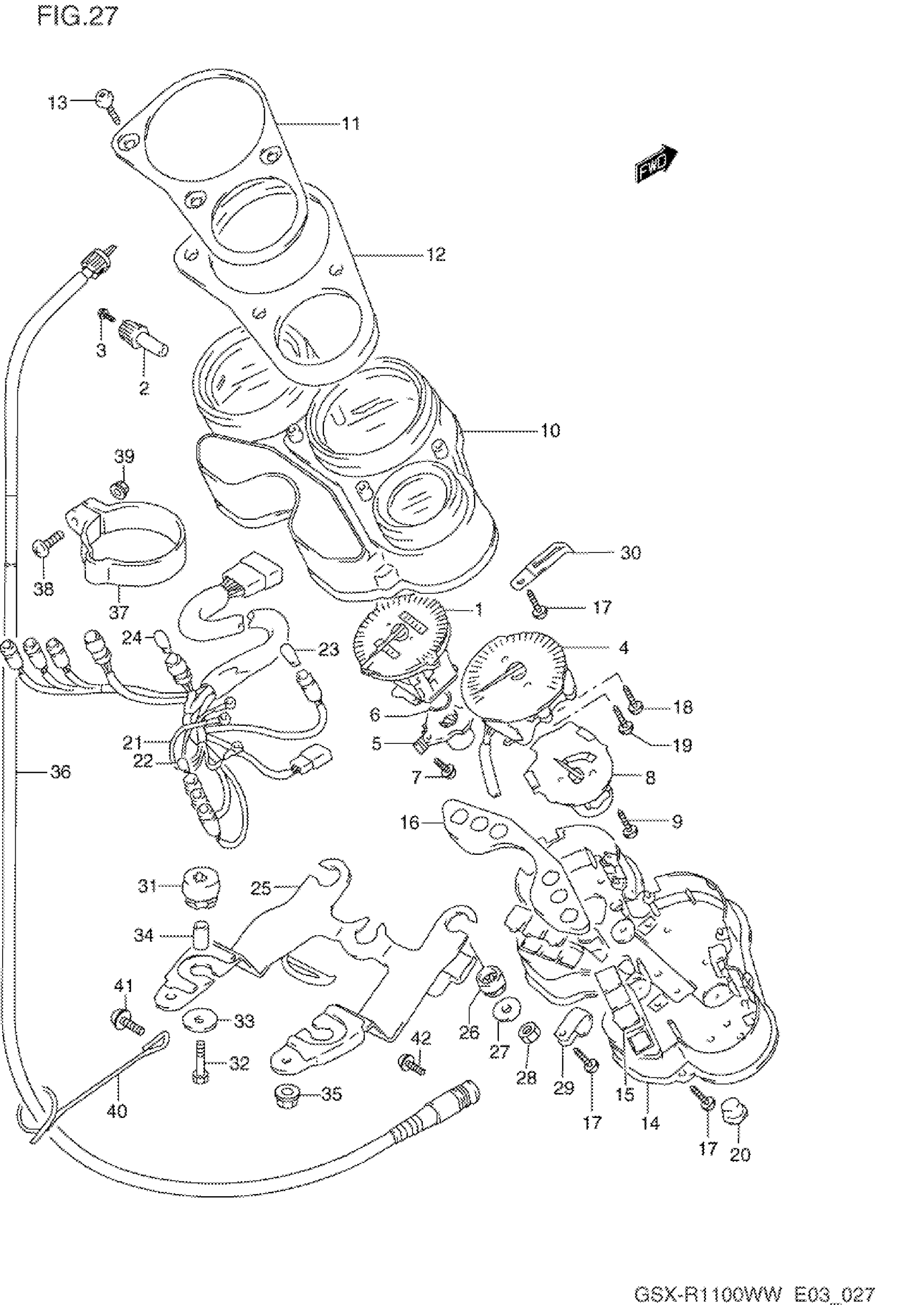

Suzuki GSX-R1100W (1998) SPEEDOMETER (MODEL P/R) Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO) This part replaces 34120-46E20.

34120-46E21

Unavailable

2

KNOB, TRIP

34124-17E00

Unavailable

3

SCREW (2X6) This part replaces 34981-13A00.

09139-02003

$1.65

4

TACHOMETER This part replaces 34220-46E10.

34220-46E11

Unavailable

5

BOX, METER GEAR This part replaces 34131-33450.

34131-19B00

Unavailable

6

O RING

34132-17E00

Unavailable

7

SCREW This part replaces 02112-74103.

02112-7410B

$2.72

8

METER, TEMPERATURE

34420-17E00

Unavailable

9

SCREW (3X22)

34383-09400

Unavailable

10

HOOD

34150-17E00

Unavailable

11

PANEL, METER

34960-46E10

Unavailable

12

CUSHION

34961-17E01

Unavailable

13

SCREW

34186-17E00

Unavailable

14

CASE, METER | Includes Item(s) 15 - 16

34111-46E10

Unavailable

15

LENS SET

36300-46820

Unavailable

16

PANEL | MODEL P This part replaces 36386-17E80.

36386-17E00

Unavailable

16

PANEL | MODEL R

36386-17E00

Unavailable

17

SCREW This part replaces 34149-17E00.

03541-0416A

$1.49

18

SCREW (4X22)

34249-17E00

Unavailable

19

SCREW (3X10)

34249-17E10

Unavailable

20

CAP

34198-17E00

Unavailable

21

SOCKET

34170-46E10

Unavailable

22

BULB (14V,3W)

09471-12103

$3.83

23

.BULB (12V1.7W)

09471-12108

$3.42

24

BULB (12V,1.7W)

09471-12077

$3.55

25

BRACKET, METER

34950-46E10

Unavailable

26

DAMPER

34955-29B50

Unavailable

27

WASHER This part replaces 34181-17E00.

09160-06056

$1.72

28

.NUT

08310-00067

$2.13

29

CLAMP

34176-46E00

Unavailable

30

CLAMP

34176-17E10

Unavailable

31

GROMMET

09320-09041

Unavailable

32

BOLT | MODEL P This part replaces 01107-06305.

01500-0630A

$2.19

32

BOLT | MODEL R This part replaces 01500-06303.

01500-0630A

$2.19

33

.WASHER (6.5X20X1.6) This part replaces 09160-06102.

09160-06088

$1.65

34

SPACER (6.1X8X15.5) | MODEL P This part replaces 09180-06094.

09180-06251

$2.44

34

SPACER (6.5X9X15.5) | MODEL R This part replaces 09180-06087.

09180-06269

Unavailable

35

NUT This part replaces 08319-31055.

08319-3105B

$3.55

36

CABLE ASSY,SPEE This part replaces 34910-17E01.

34910-17E02

Unavailable

37

GUIDE, CABLE NO.1

34938-46E00

Unavailable

38

SCREW | MODEL P

02112-05164

$2.63

38

.SCREW | MODEL R This part replaces 02112-05163.

02112-0516A

$1.49

39

NUT | MODEL P This part replaces 08313-11055.

08313-1005B

$2.70

39

NUT | MODEL R This part replaces 08313-10053.

08313-1005B

$2.70

40

GUIDE, CABLE NO.3

34939-45000

Unavailable

41

SCREW

02142-06107

Unavailable

42

SCREW | MODEL P

02112-05164

$2.63

42

.SCREW | MODEL R This part replaces 02112-05163.

02112-0516A

$1.49

43

REFER TO FIG.27A(F-4) FOR

SPECIAL NOTE

Unavailable
