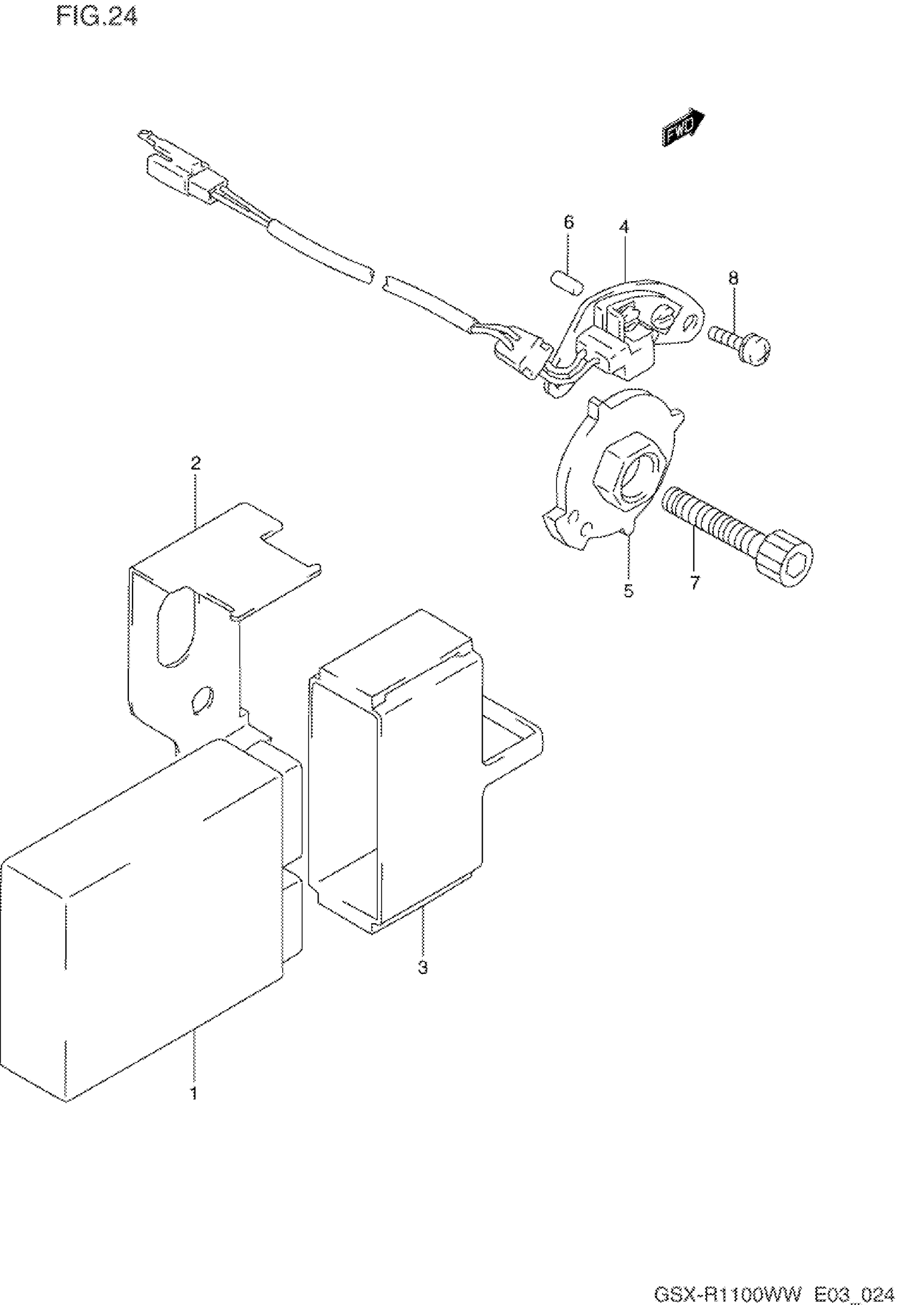

Suzuki GSX-R1100W (1998) SIGNAL GENERATOR Diagram

#

Description
Price

1

IGNITER | MODEL P/R

32900-46E10

Unavailable

1

IGNITER | MODEL S/T/V/W

32900-46E50

Unavailable

1

IGNITER | MODEL P/R,CALIFORNIA ONLY

32900-46E20

Unavailable

1

IGNITER | MODEL S/T/V/WCALIFORNIA ONLY

32900-46E70

Unavailable

2

BRACKET

32931-17E00

Unavailable

3

CUSHION

32980-40C01

$15.83

4

SIGNAL GENERATOR ASSY

33110-17E00

Unavailable

5

ROTOR, SIGNAL | MODEL P/R This part replaces 33120-17E00.

33120-17E20

Unavailable

5

ROTOR, SIGNAL | MODEL S/T/V/W

33120-17E20

Unavailable

5

ROTOR, SIGNAL | MODEL P/R,CALIFORNIA ONLY

33120-17E10

Unavailable

5

ROTOR, SIGNAL | MODEL S/T/V/WCALIFORNIA ONLY

33120-17E20

Unavailable

6

PIN (4X13.8)

04221-04089

$1.49

7

BOLT, STEERING DAMPER | MODEL P This part replaces 07110-08306.

07130-0830A

$1.74

7

BOLT, STEERING DAMPER | MODEL R/S/T/V/W This part replaces 07130-08303.

07130-0830A

$1.74

8

SCREW | MODEL P This part replaces 02152-05108.

02142-05107

$1.49

8

SCREW, THROTTLE | MODEL R/S/T/V/W This part replaces 02112-05103.

02112-0510A

$1.49
