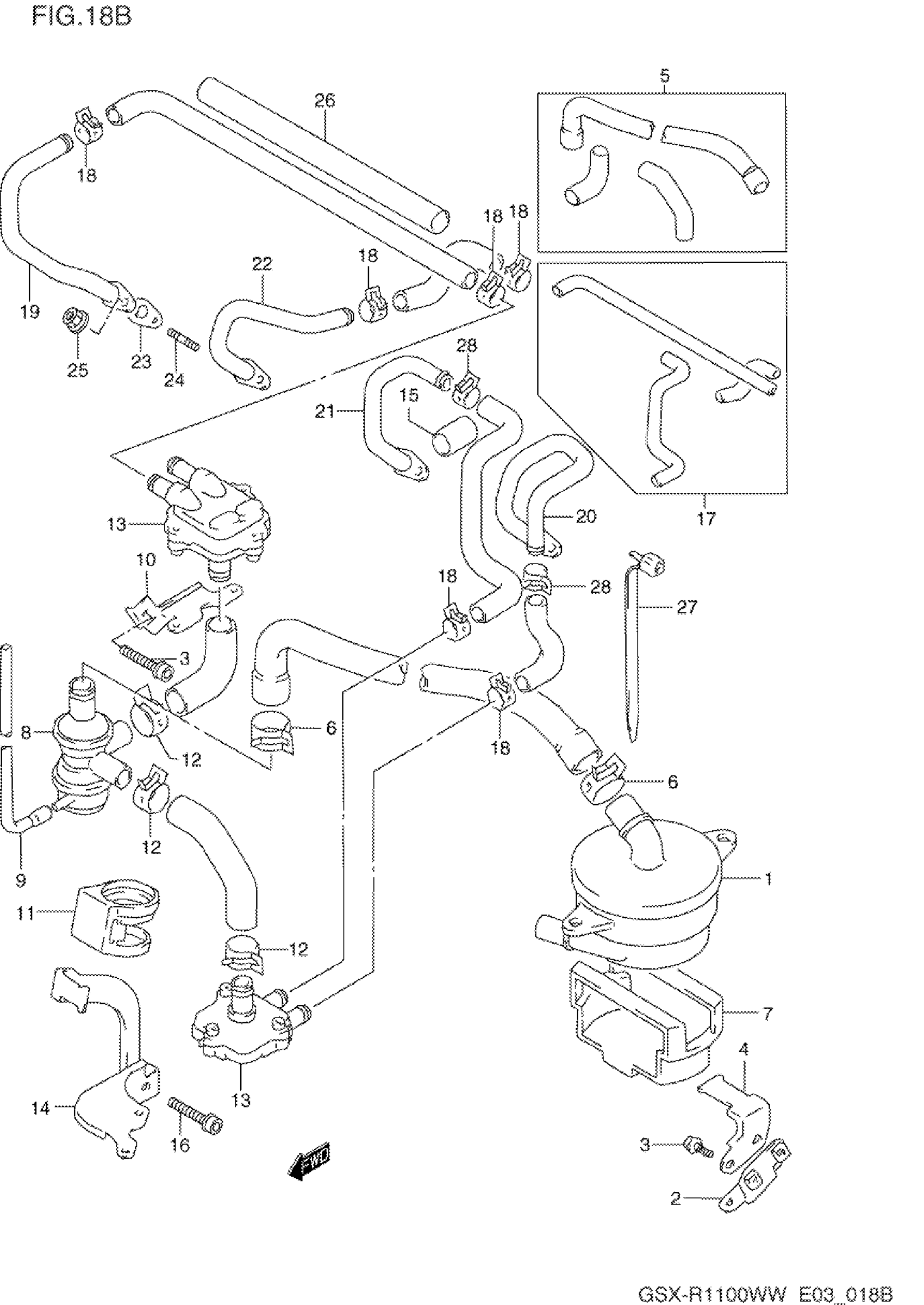

Suzuki GSX-R1100W (1998) SECOND AIR (CALIFORNIA ONLY) Diagram

#

Description
Price

1

CLEANER ASSY, 2ND AIR | MODEL P/R/S This part replaces 18700-48B03.

18700-17C03

Unavailable

1

CLEANER ASSY, 2ND AIR | MODEL T/V/W

18700-17C03

Unavailable

2

BRACKET, 2ND AIR

18760-46E00

Unavailable

3

BOLT, OIL GALLERY | MODEL P This part replaces 07120-06125.

07120-0612B

$3.04

3

BOLT, OIL GALLERY | MODEL R/S/T/V/W This part replaces 07120-06123.

07120-0612B

$3.04

4

BRACKET, 2ND AIR CLEANER

18751-46E00

Unavailable

5

HOSE SET, 2ND AIR NO.2 | MODEL P/R

18420-46810

Unavailable

5

HOSE SET, 2ND AIR NO.2 | MODEL S/T/V/W

18420-46820

Unavailable

6

CLIP | MODEL P/R/S/T/V

09401-25402

Unavailable

6

CLIP | MODEL W This part replaces 09401-25403.

09401-25406

$3.34

7

CUSHION, 2ND AIR CLEANER

18774-46E00

Unavailable

8

VALVE ASSY, AIR SWITCHING

18510-46E00

Unavailable

9

HOSE, VACUUM | L:600->500

09359-45852-600

Unavailable

10

BRACKET, 2ND AIR VALVE

18731-46E00

Unavailable

11

CUSHION, 2ND AIR VALVE

18487-01D00

Unavailable

12

CLIP | MODEL P/R

09401-21401

Unavailable

12

CLIP | MODEL S/T/V

09401-21403

Unavailable

12

CLIP | MODEL W

09401-20405

$4.08

13

VALVE ASSY, 2ND AIR REED

18450-48B00

Unavailable

14

BRACKET, REED VALVE LH | MODEL P/R/S This part replaces 18720-46E00.

18720-46E01

Unavailable

14

BRACKET, REED VALVE LH | MODEL T/V/W

18720-46E01

Unavailable

15

PROTECTOR, REED VALVE | MODEL P

44312-46E00

Unavailable

15

PROTECTOR, REED VALVE | MODEL R/S/T/V/W

44312-46E01

Unavailable

16

BOLT, EXHAUST COVER | MODEL P This part replaces 07120-06165.

07120-0616B

$2.45

16

BOLT, EXHAUST COVER | MODEL R This part replaces 07120-06163.

07120-0616B

$2.45

16

BOLT, OIL GALLERY | MODEL S/T/V/W This part replaces 07120-06123.

07120-0612B

$3.04

17

HOSE SET, 2ND AIR NO.1

18410-46810

Unavailable

18

CLAMP | MODEL P/R This part replaces 09401-13408.

09401-13417

$2.26

18

CLAMP | MODEL S/T/V This part replaces 09401-13413.

09401-13417

$2.26

18

CLIP | MODEL W

09401-13417

$2.26

19

PIPE, 2ND AIR NO.4 | ~E.NO.108264

18440-46E00

Unavailable

19

PIPE, 2ND AIR NO.4 | E.NO.108265~

18440-46E10

Unavailable

20

PIPE, 2ND AIR NO.1

18410-46E00

Unavailable

21

PIPE, 2ND AIR NO.2

18420-46E00

Unavailable

22

PIPE, 2ND AIR NO.3

18430-46E00

Unavailable

23

GASKET 2ND AIR PIPE This part replaces 18441-45C00.

18441-45C01

$7.05

24

BOLT,STUD | MODEL P/R This part replaces 01421-06165.

01421-0616A

$1.91

24

BOLT,STUD | MODEL S/T/V/W This part replaces 01421-06163.

01421-0616A

$1.91

25

NUT | MODEL P/R This part replaces 08316-16064.

08316-1006B

$2.50

25

NUT | MODEL S/T/V/W This part replaces 08316-10063.

08316-1006B

$2.50

26

PROTECTOR, REED VALVE HOSE | MODEL P

44311-46E00

Unavailable

26

PROTECTOR, REED VALVE HOSE | MODEL R/S/T/V/W

44311-46E01

Unavailable

27

CLAMP | MODEL P/R/S

09407-18402

$2.19
