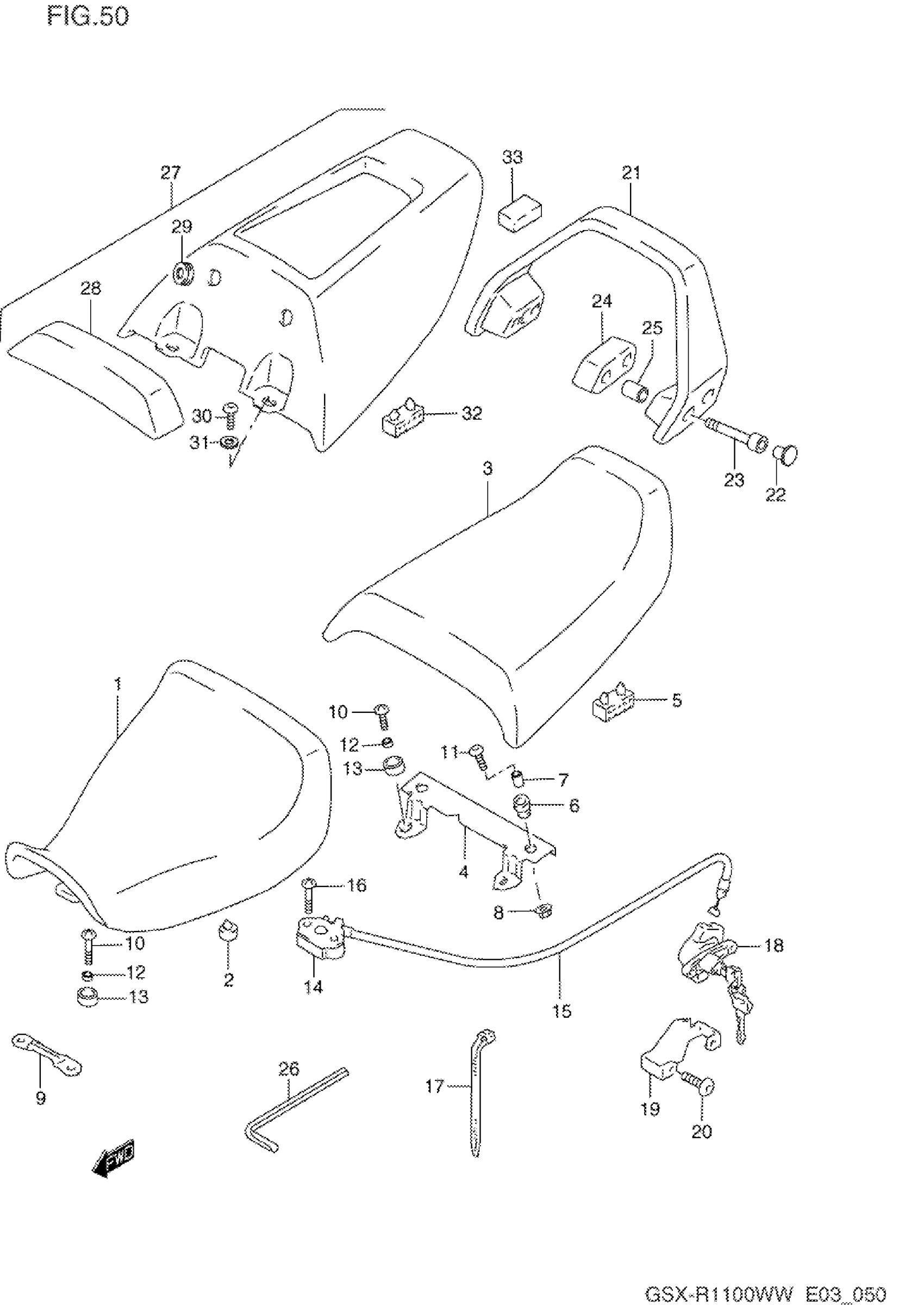

Suzuki GSX-R1100W (1998) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK) | Includes Item(s) 2

45100-46E00-58R

Unavailable

2

CUSHION

09321-10011

$2.91

3

SEAT ASSY, PILLION (BLACK)

45300-46E00-58R

Unavailable

3

SEAT ASSY, PILLION (BLACK) | MODEL R FOR M18; Includes Item(s) 4 - 8 This part replaces 45300-46E00-5FM.

45300-46E00-58R

Unavailable

4

PLATE, SEAT LOCK

45321-46E00

Unavailable

5

CUSHION

45149-31300

$3.56

6

CUSHION This part replaces 45215-06B00.

45215-06B01

$3.47

7

SPACER

45216-06B00

$3.37

8

NUT This part replaces 08316-10063.

08316-1006B

$2.50

9

PLATE. SEAT FRONT | MODEL P This part replaces 45119-46E00.

45119-17E00

$14.45

9

PLATE, SEAT FRONT | MODEL R/S/T/V/W

45119-17E00

$14.45

10

SCREW | MODEL P This part replaces 02142-06164.

02142-0616A

$1.49

10

SCREW,6X14 | MODEL R This part replaces 09139-06052.

09122-66007

$3.15

10

SCREW,6X14 | MODEL S/T/V/W This part replaces 09139-06081.

09122-66007

$3.15

11

SCREW, PILLION (6X12)

09139-06027

$2.16

12

SPACER | MODEL P This part replaces 09180-06053.

09180-06309

$2.06

13

CUSHION, SEAT SUPPORT

45149-04A00

$3.59

14

BRACKET, SEAT SUPPORT REAR

45220-46E00

Unavailable

15

CABLE, SEAT LOCK

45280-46E00

Unavailable

16

SCREW | MODEL P This part replaces 02112-06255.

02112-0625A

$1.80

16

SCREW | MODEL R/S/T/V/W This part replaces 02122-06253.

02122-0625A

$1.49

17

CLAMP | MODEL P/R/S This part replaces 09407-18403.

09407-18402

$2.19

18

LOCK SET,SEAT This part replaces 95700-12852.

95700-12853

$137.02

19

PLATE, SEAT LOCK GUARD

45289-45D01

Unavailable

20

SCREW (6X12)

09139-06075

Unavailable

21

HANDLE, PILLION RIDER (WHITE) | FOR M18,E9P,G4V,K1V

46211-46E00-0JW

Unavailable

21

HANDLE, PILLION RIDER (BLACK) | FOR 17U,33J,C3R,G2P

46211-46E00-33J

Unavailable

21

HANDLE, PILLION RIDER (GRAY) | FOR C3B

46211-46E00-17U

Unavailable

21

HANDLE, PILLION RIDER (GRAY) | FOR G2E

46211-46E00-35W

Unavailable

22

CAP

09250-06004

$1.49

23

BOLT | MODEL P This part replaces 07110-08655.

07130-0865B

$5.27

23

BOLT | MODEL R/S/T/V/W This part replaces 07130-08653.

07130-0865B

$5.27

24

CUSHION, RH

46238-46E00

Unavailable

24

CUSHION, LH

46239-46E00

Unavailable

25

NO DESCRIPTION AVAILABLE This part replaces 09180-08180.

09180-08180-XC0

Unavailable

26

HEXAGON SPANNER, 4

09816-00103

$6.17

27

BOX SET, SEAT TAIL (WHITE) | OPT,FOR M18,E9P,G4V,K1V

45500-46810-0JW

Unavailable

27

BOX SET, SEAT TAIL (BLACK) | OPT,FOR 17U,33J,C3R,G2P

45500-46810-33J

Unavailable

27

BOX SET, SEAT TAIL (GRAY) | OPT,FOR C3B

45500-46810-17U

Unavailable

27

BOX SET, SEAT TAIL (GRAY) | OPT,FOR G2E; Includes Item(s) 28 - 33

45500-46810-35W

Unavailable

28

BACKREST, SEAT (BLACK) | OPT

46220-46E00-58R

Unavailable

29

CUSHION | OPT

09320-12031

$2.34

30

SCREW(6X16) | OPT This part replaces 09139-06067.

09139-06237

$2.38

31

WASHER | OPT

09160-06066

$1.89

32

CUSHION | OPT

45149-31300

$3.56

33

PROTECTOR | OPT

45591-12C00

Unavailable

34

COLOR : M18 = 0JW(WHITE),

SPECIAL NOTE

Unavailable
