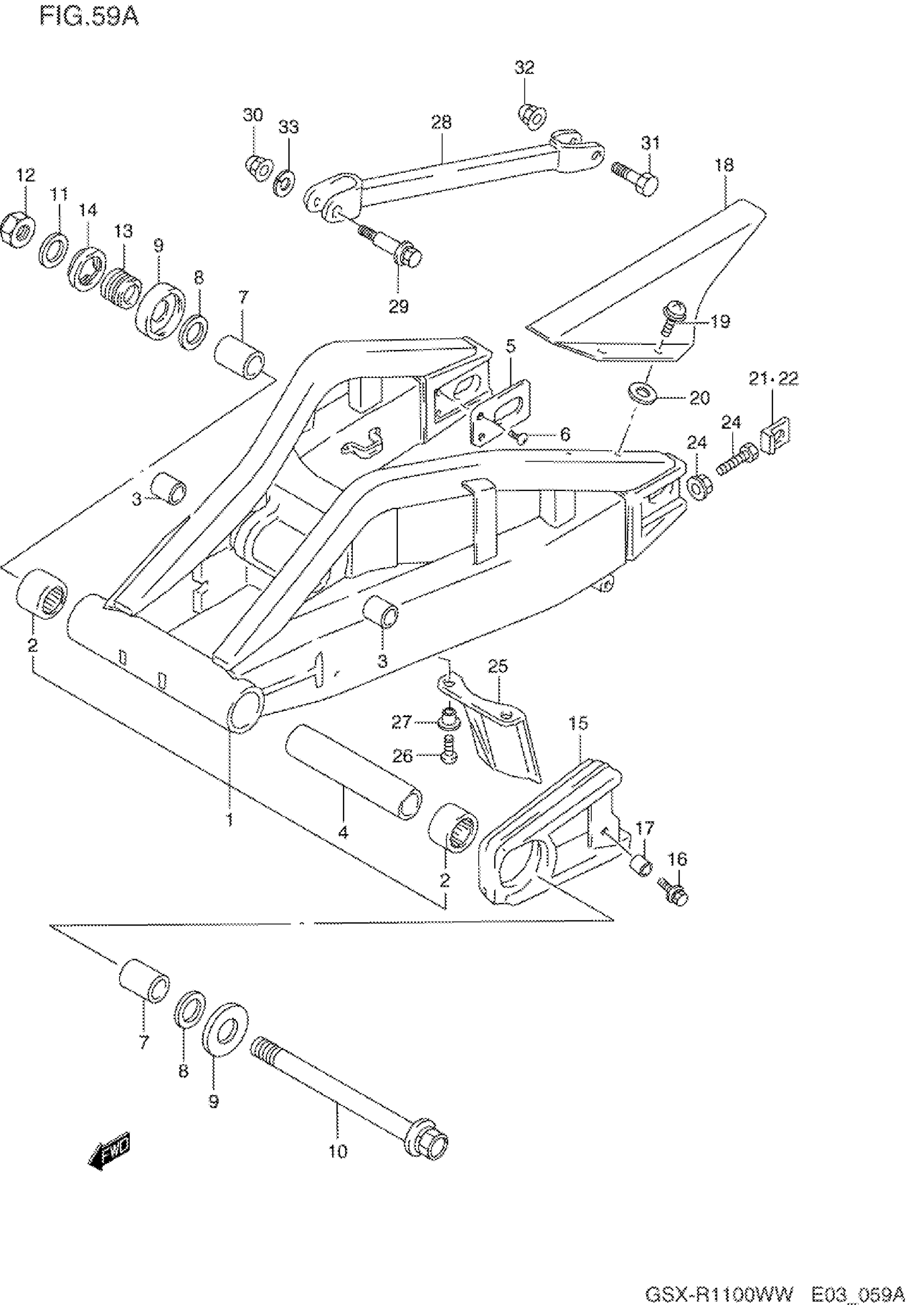

Suzuki GSX-R1100W (1998) REAR SWINGING ARM (MODEL S/T/V/W) Diagram

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 4

61000-46E10

Unavailable

BEARING, PIVOT (30X40X25)

09263-30040

$38.65

.BEARING This part replaces 09263-17039.

09263-17058

$16.23

NO DESCRIPTION AVAILABLE This part replaces 09180-25099.

09180-25099-XC0

Unavailable

PLATE, BRACKET

61124-17E10

$6.88

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49

SPACER,RR SWGARM PIVOT BEARIN This part replaces 61251-17E10.

61251-17E20

$13.12

WASHER, THRUST

08211-25481

$5.64

SEAL,DUST This part replaces 61262-17E10.

61262-17E11

$9.05

SHAFT, PIVOT

61211-17E10

Unavailable

WASHER

09160-25070

$4.77

NUT This part replaces 09159-25001.

09159-25003

$31.85

NO DESCRIPTION AVAILABLE This part replaces 61213-17E10.

61213-17E1V

Unavailable

NUT, PIVOT

61214-17E10

Unavailable

BUFFER, CHAIN TOUCH DEFENSE

61273-17E11

Unavailable

BOLT This part replaces 09116-06111.

09116-06152

$2.36

SPACER (6.5X10X7)

09180-06283

$1.91

CASE, CHAIN

61311-17E10

Unavailable

SCREW (6X20)

09136-06022

$2.21

WASHER | MODEL S/T/V

09160-06084

$1.78

WASHER | MODEL W This part replaces 09160-06132.

09160-06084

$1.78

WASHER,CHAIN AD | LH This part replaces 61446-17E10.

61446-17E11

$35.78

WASHER,CHAIN AD | RH This part replaces 61446-27C20.

61446-27C21

$37.60

BOLT (8X50)

09100-08287

$3.10

NUT This part replaces 08316-10083.

08316-1008B

$2.66

MUD GUARD, REAR UNIT This part replaces 63411-42A00.

63411C42A00J000

Unavailable

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

WASHER

09169-06010

$2.60

TORQUE LINK, REAR

64310-46E00

Unavailable

BOLT, FRONT (8X44) | MODEL S/T

09111-08058

Unavailable

BOLT, FRONT (8X44) | MODEL V/W

09111-08083

Unavailable

NUT

08319-31087

$2.32

BOLT, REAR (10X37)

09103-10019

$2.63

NUT

08319-31107

$2.73

WASHER,LOCK This part replaces 08321-01123.

08321-0112A

$2.10
