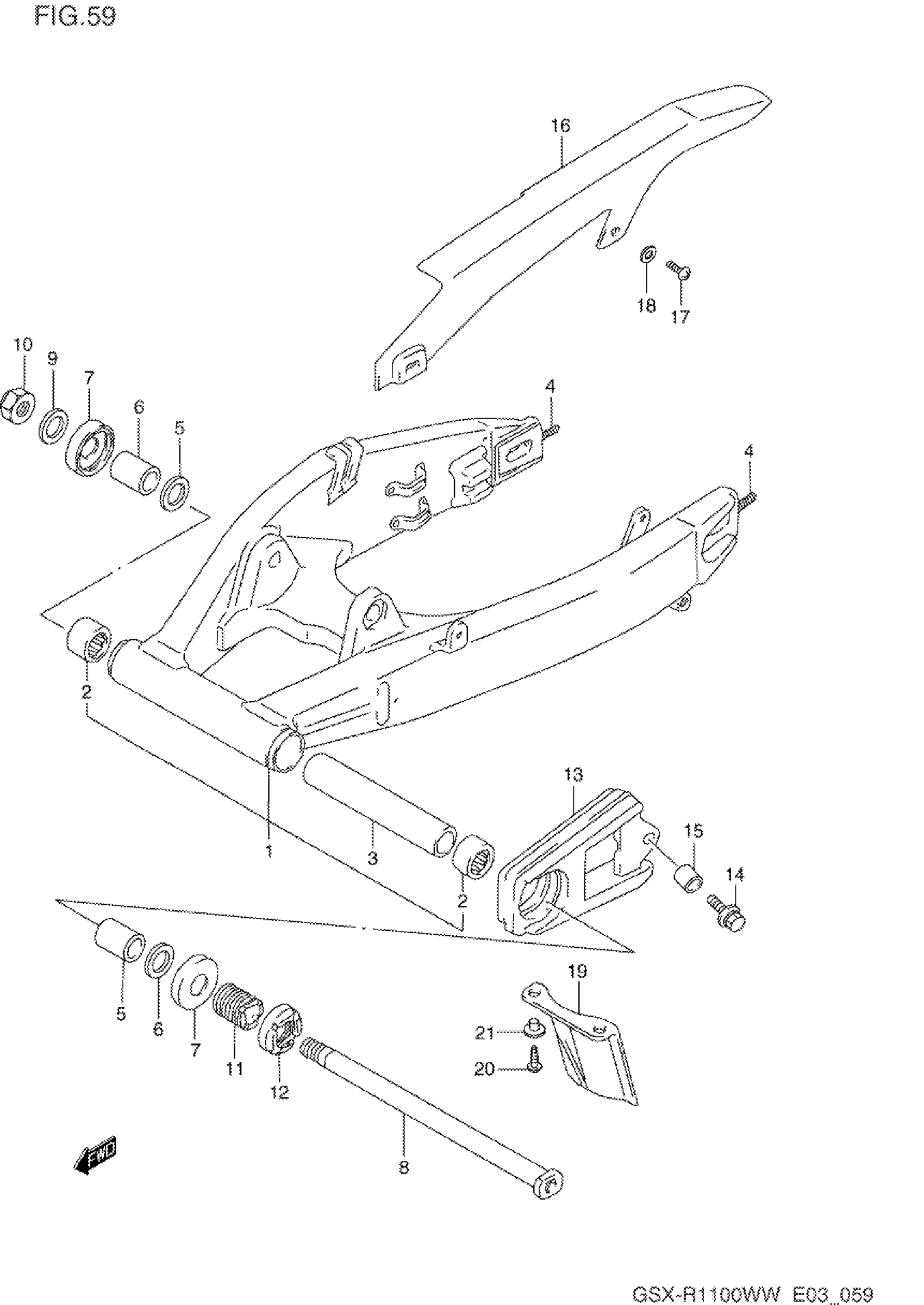

Suzuki GSX-R1100W (1998) REAR SWINGING ARM (MODEL P/R) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 4

61000-46E00

Unavailable

2

BEARING, PIVOT

09263-25024

$25.92

3

.SPACER,RR SWGARM PIVOT CTR

61282-17C00

$28.42

4

BOLT,STUD This part replaces 61431-40C00.

09108-08261

$6.47

5

SPACER, BEARING

61251-17C00

$43.37

6

WASHER, THRUST

08211-20381

$4.10

7

DUST SEAL,RR SW This part replaces 61262-17C00.

61262-17C01

$9.57

8

SHAFT, PIVOT

61211-17E01

Unavailable

9

WASHER | MODEL P This part replaces 08322-11188.

08322-0118B

$2.70

9

WASHER | MODEL R This part replaces 08322-01183.

08322-0118B

$2.70

10

NUT

09159-18007

$19.68

11

BOLT, PIVOT

61213-40C30

Unavailable

12

NUT, PIVOT BOLT This part replaces 61214-40C30.

61214-40C31

$56.90

13

BUFFER, CHAIN TOUCH DEFENSE

61273-46E00

Unavailable

14

BOLT This part replaces 09116-06111.

09116-06152

$2.36

15

SPACER (6.5X10X7) This part replaces 09180-06002.

09180-06283

$1.91

16

CASE, CHAIN

61310-17E00

Unavailable

17

STOPPER, CL RLSE CAM SHAFT | MODEL P This part replaces 02142-06104.

02142-0610A

$1.49

17

STOPPER, CL RLSE CAM SHAFT | MODEL R This part replaces 02142-06103.

02142-0610A

$1.49

18

WASHER

09169-06026

$2.20

19

MUD GUARD, REAR UNIT This part replaces 63411-42A00.

63411C42A00J000

Unavailable

20

SCREW | MODEL P

02142-06167

$1.49

20

SCREW | MODEL R This part replaces 02142-06163.

02142-0616A

$1.49

21

WASHER | MODEL P This part replaces 09169-06025.

09169-06010

$2.60

21

WASHER | MODEL R

09169-06010

$2.60

22

REFER TO FIG.59A(L- 5) FOR

SPECIAL NOTE

Unavailable
