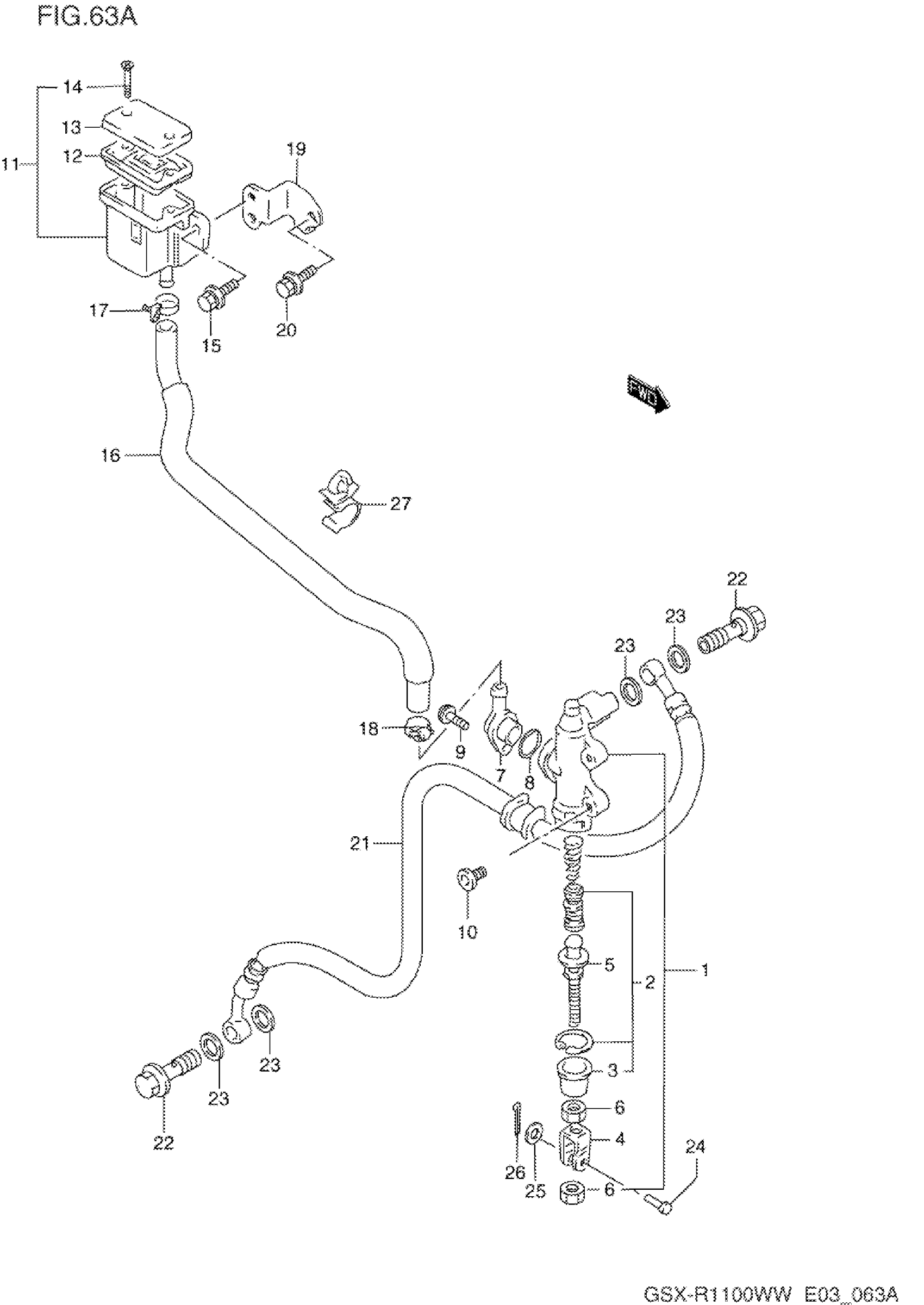

Suzuki GSX-R1100W (1998) REAR MASTER CYLINDER (MODEL S/T/V/W) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-17E00

Unavailable

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$32.27

3

.BOOT

69691-00A00

$5.30

4

YOKE

69692-27A30

$13.81

5

ROD, PUSH

69670-17E00

Unavailable

6

NUT

69693-05A00

$1.96

7

CONNECTOR

69672-05A00

$5.56

8

O RING

69686-34200

$2.93

9

.SCREW This part replaces 02112-74123.

02112-7412A

$2.12

10

BOLT, PANEL (8X18) This part replaces 09106-08118.

09106-08161

$3.70

11

TANK ASSY, REAR RESERVOIR | Includes Item(s) 12 - 14

69740-24A01

Unavailable

12

DIAPHRAGM

59667-04700

$9.78

13

CAP

59669-05D00

$16.76

14

SCREW

69689-04A00

$1.78

15

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

16

HOSE, RESERVOIR TANK

69731-17E00

Unavailable

17

CLAMP, UPPER

09401-13417

$2.26

18

CLAMP, LOWER

09401-13417

$2.26

19

PLATE, RESERVOIR TANK

69750-46E00

Unavailable

20

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

21

HOSE, REAR BRAKE

69480-46E10

Unavailable

22

UNION This part replaces 09360-10039.

09360-10061

$6.43

23

WASHER (10X15X1.5)

09161-10009

$1.84

24

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$4.11

25

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

26

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

27

GUIDE, RESERVOIR TANK HOSE

09403-16307

$2.53
