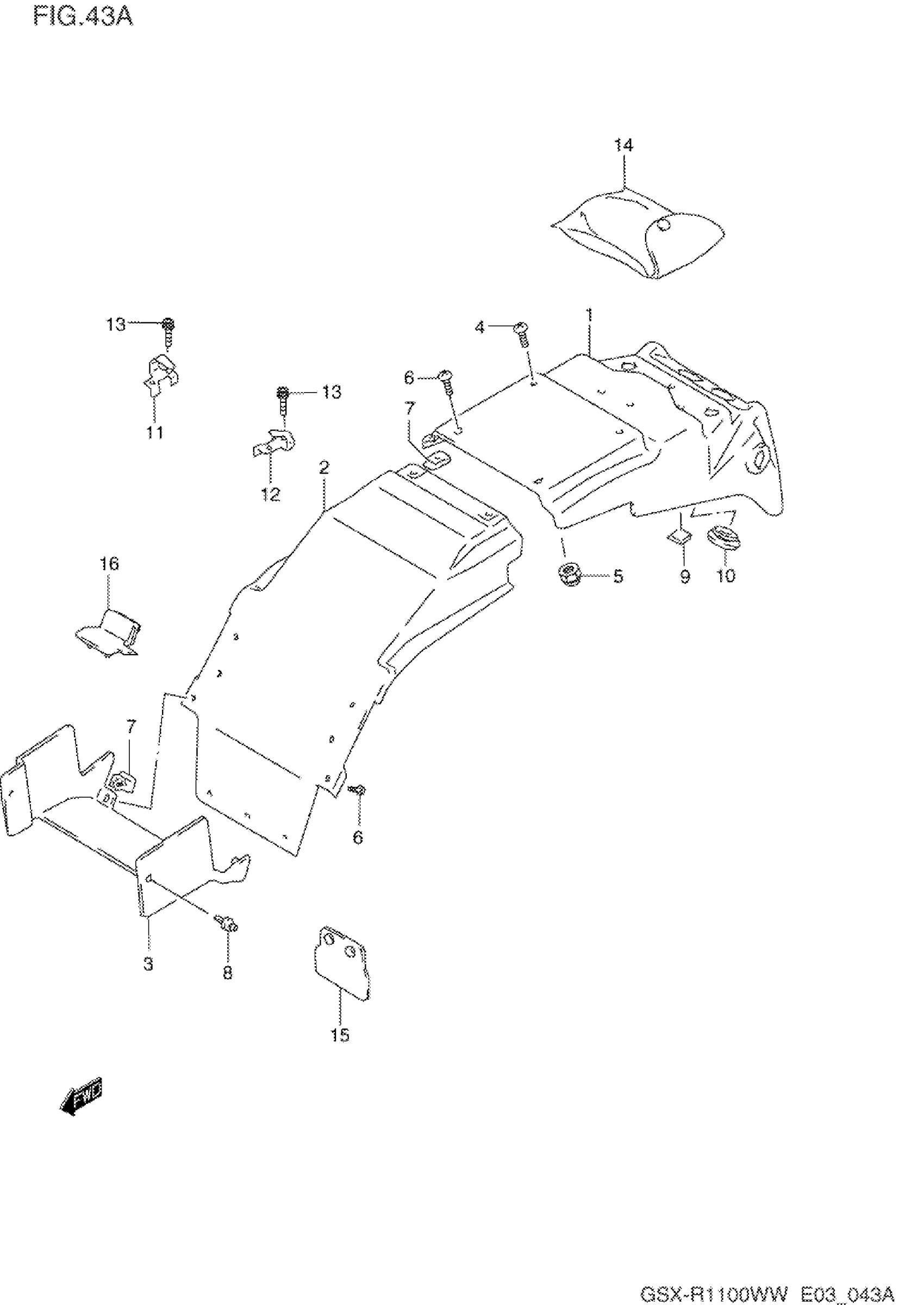

Suzuki GSX-R1100W (1998) REAR FENDER (MODEL S/T/V/W) Diagram

#

Description
Price

1

BODY, REAR FENDER UPPER

63112-40C30

Unavailable

2

BODY, REAR FENDER FRONT

63114-46E10

Unavailable

3

BODY, REAR FENDER FRONT

63113-17E10

Unavailable

4

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

5

NUT

08319-31067

$2.03

6

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

7

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

8

CLIP (BLACK)

09409-06322-5PK

$3.10

9

TAPE, HOLE

63115-46E00

Unavailable

10

CAP,OD:40 | MODEL S This part replaces 09250-30015.

72999-67H00

$5.10

10

CAP,OD:40 | MODEL T/V/W This part replaces 09250-30010.

72999-67H00

$5.10

11

HOLDER, HELMET RH

95721-18D00

Unavailable

12

HOLDER, HELMET LH

95731-18D00

Unavailable

13

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

$3.04

14

TOOL ASSY

09800-21035

Unavailable

15

MUD GUARD, REAR FENDER FRONT

63411-33400

Unavailable

16

MUD GUARD, REAR FENDER LH

63411-17E00

Unavailable
