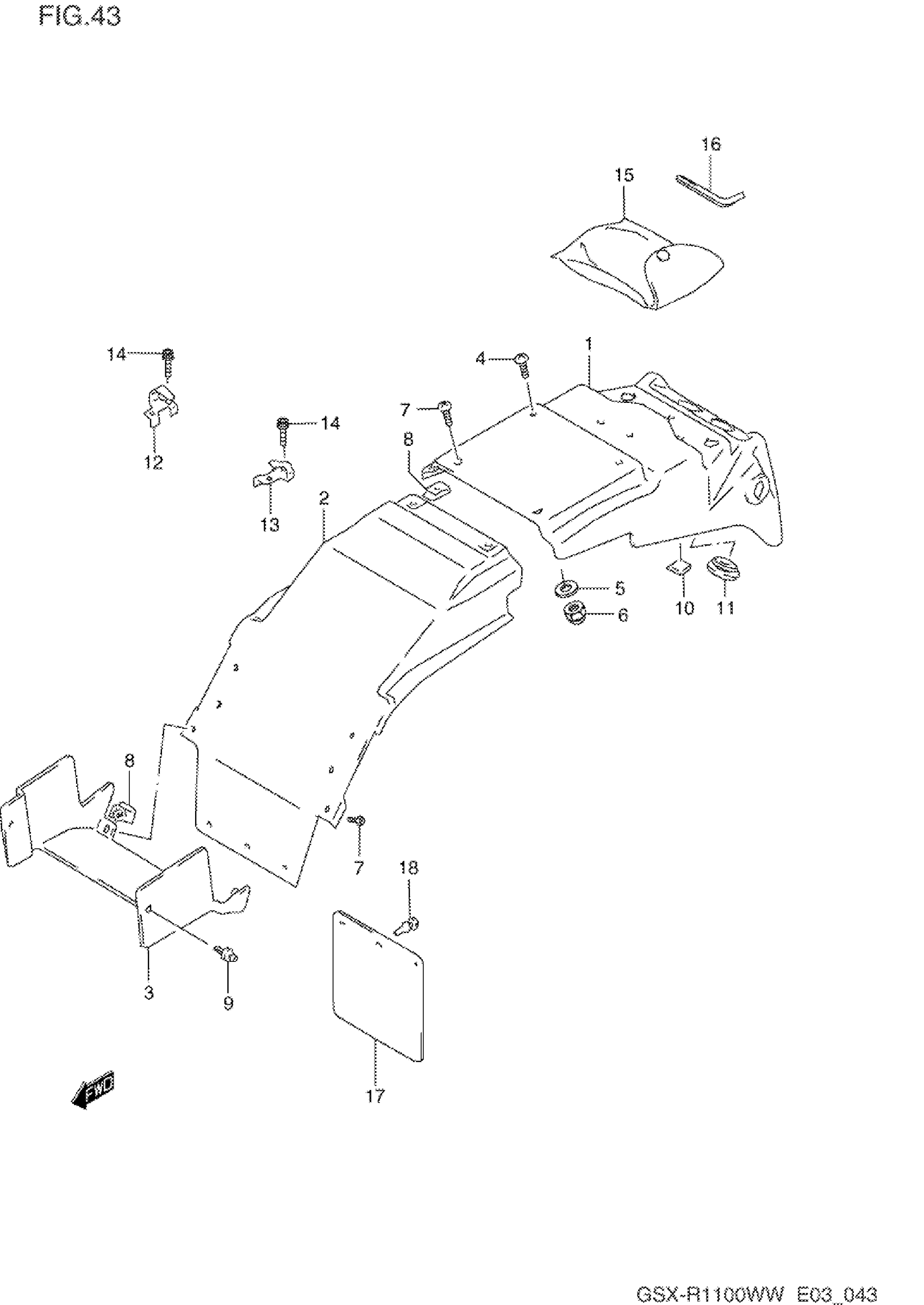

Suzuki GSX-R1100W (1998) REAR FENDER (MODEL P/R) Diagram

#

Description
Price

1

BODY, REAR FENDER UPPER

63112-40C30

Unavailable

2

BODY, REAR FENDER FRONT

63114-46E00

Unavailable

3

BODY, REAR FENDER FRONT

63113-17E00

Unavailable

4

SCREW | MODEL P This part replaces 02142-06164.

02142-0616A

$1.49

4

SCREW | MODEL R This part replaces 02142-06163.

02142-0616A

$1.49

5

WASHER | MODEL P This part replaces 09160-06006.

09160-06084

$1.78

6

.NUT | MODEL P This part replaces 08319-21066.

08319-2106A

$1.91

6

NUT | MODEL R This part replaces 08319-31063.

08319-3106A

$2.03

7

.SCREW | MODEL P This part replaces 02142-05124.

02142-0512A

$1.49

7

.SCREW | MODEL R This part replaces 02142-05123.

02142-0512A

$1.49

8

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

9

CLIP | MODEL P This part replaces 09409-06307.

09409-06322-5PK

$3.10

9

CLIP | MODEL R This part replaces 09409-06322.

09409-06322-5PK

$3.10

10

TAPE, HOLE

63115-46E00

Unavailable

11

CAP,OD:40 This part replaces 09250-30010.

72999-67H00

$5.10

12

HOLDER, HELMET RH

95721-18D00

Unavailable

13

HOLDER, HELMET LH

95731-18D00

Unavailable

14

BOLT, OIL GALLERY | MODEL P This part replaces 07120-06125.

07120-0612B

$3.04

14

BOLT, OIL GALLERY | MODEL R This part replaces 07120-06123.

07120-0612B

$3.04

15

TOOL ASSY | MODEL P->09800-21008 This part replaces 09800-20057.

09800-21065

Unavailable

15

TOOL ASSY | MODEL R This part replaces 09800-21008.

09800-21065

Unavailable

16

SPANNER, HEXAGON | MODEL P

09816-00103

$6.17

17

MUD GUARD, REAR FENDER FRONT

63411-46E00

Unavailable

18

CLIP, MUD GUARD

63415-10D00

Unavailable

19

REFER TO FIG.43A(I- 7) FOR

SPECIAL NOTE

Unavailable
