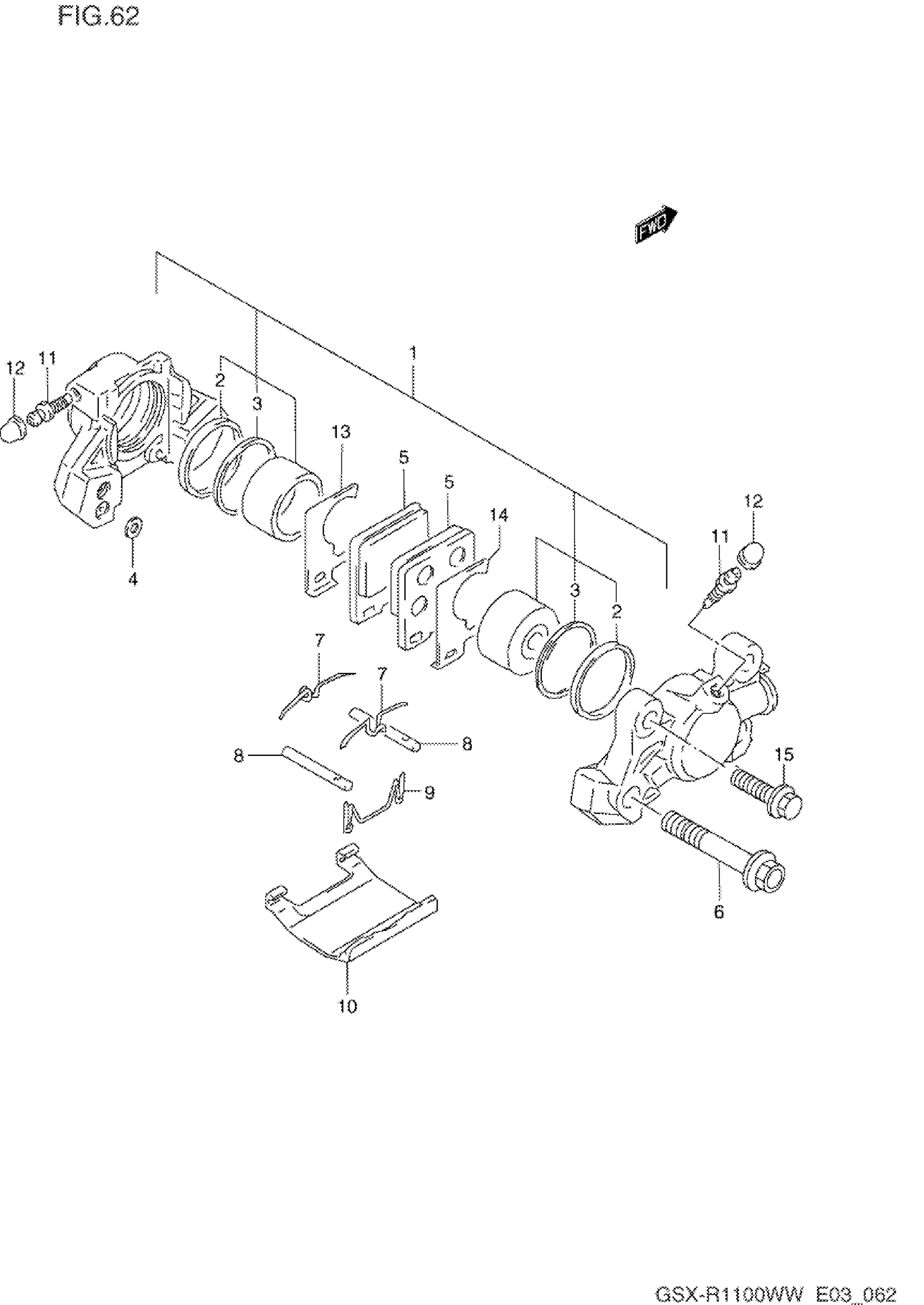

Suzuki GSX-R1100W (1998) REAR CALIPER (MODEL P/R) Diagram

#

Description
Price

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 14 This part replaces 69100-46E00.

69100-21E01-999

Unavailable

1

PISTON SET This part replaces 69100-32810.

69100-05851

$59.83

2

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

$9.07

3

BOOT

69108-32B00

$24.64

4

SEAL

69107-34200

$10.71

5

NO DESCRIPTION AVAILABLE This part replaces 59130-30B21.

59100-30850

Unavailable

6

BOLT

59145-17C00

Unavailable

7

SPRING

59143-16700

$5.80

8

PIN This part replaces 69141-46E00.

69141-46E01

$8.73

9

CLIP This part replaces 69142-46E00.

69142-46E01

$14.35

10

COVER

59151-16701

$13.36

11

BLEEDER

59121-18410

$8.73

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$5.17

13

SHIM, INNER

59371-20C00

$16.25

14

SHIM, OUTER

59381-20C00

$16.25

15

BOLT | MODEL P This part replaces 01517-08304.

01550-0830A

$3.04

15

BOLT | MODEL R This part replaces 01550-08303.

01550-0830A

$3.04

16

REFER TO FIG.62A(L-12) FOR

SPECIAL NOTE

Unavailable
