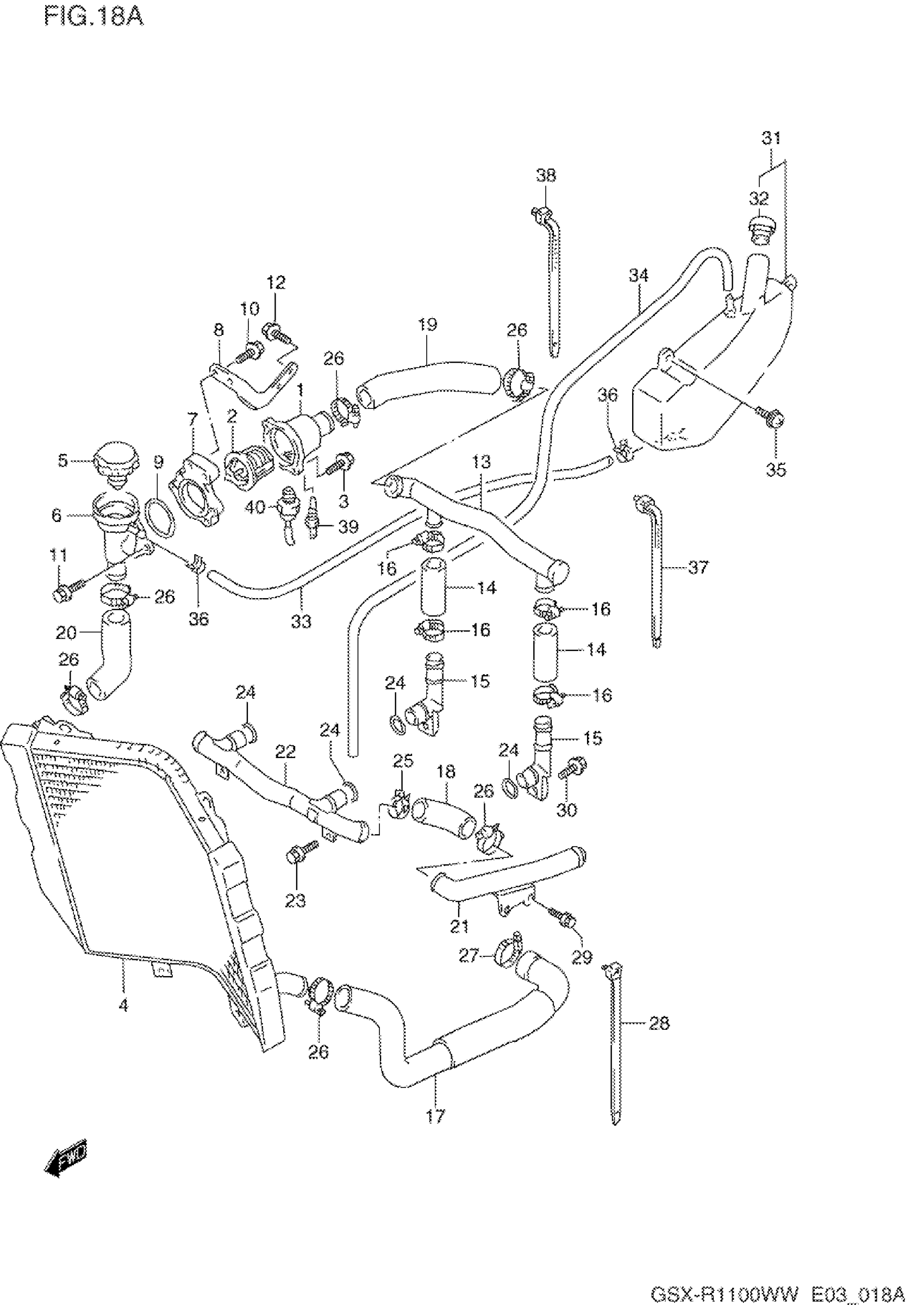

Suzuki GSX-R1100W (1998) RADIATOR HOSE (MODEL S/T/V/W) Diagram

#

Description
Price

1

CONNECTOR, THERMOSTAT INLET

17662-46E10

Unavailable

2

THERMOSTAT,WATE This part replaces 17670-32C01.

17670-32C02

$36.31

3

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

4

RADIATOR ASSY, WATER

17710-46E00

Unavailable

5

CAP, RADIATOR 1.1 This part replaces 17730-19D00.

17730-19D11

$42.32

6

CONDUCTION, RADIATOR

17791-46E10

Unavailable

7

BRACKET, CONDUCTION

17792-46E10

Unavailable

8

BRACKET, CONDUCTION BRACKET

17793-46E10

Unavailable

9

O RING, CONDUCTION

09280-44005

$3.72

10

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

11

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

12

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

13

PIPE, HEAD OUTLET JOINT

17840-46E10

Unavailable

14

HOSE, CYLINDER JOINT | MODEL S This part replaces 17859-17E00.

17851-01A00

$22.10

14

HOSE, CYLINDER JOINT | MODEL T/V This part replaces 17853-28C20.

17851-01A00

$22.10

14

HOSE, HEAD OUTLET JOINT | MODEL W

17851-01A00

$22.10

15

PIPE, HEAD OUTLET NO.1

17880-17E00

Unavailable

16

CLAMP, WATER HOSE NO.3

09402-28511

$6.88

17

HOSE, WATER PUMP INLET

17853-46E10

Unavailable

18

HOSE, CYLINDER INLET JOINT | MODEL S/T/V This part replaces 17856-17E50.

17858-17E50

Unavailable

18

HOSE, CYLINDER INLET JOINT | MODEL W

17858-17E50

Unavailable

19

HOSE, HEAD OUTLET

17856-46E10

Unavailable

20

HOSE, RADIATOR INLET

17857-46E10

Unavailable

21

PIPE, CYLINDER SIDE

17860-17E00

Unavailable

22

PIPE, CYLINDER INLET

17870-46E00

Unavailable

23

BOLT (6X12) | MODEL S This part replaces 09103-06184.

09103-06285

$1.97

23

BOLT (6X12) | MODEL T/V/W This part replaces 09103-06083.

09103-06285

$1.97

24

O RING (D:3.2,ID:17.8)

09280-18009

$5.83

25

CLIP This part replaces 09401-26404.

09401-26407

$4.62

26

CLAMP, WATER HOSE NO.1

09402-32511

$10.86

27

CLAMP, WATER HOSE NO.2

09402-38511

$11.67

28

CLAMP, WATER PUMP INLET | MODEL S

09407-22404

Unavailable

28

CLAMP, WATER PUMP INLET | MODEL T/V/W

09407-25401

$4.66

29

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

30

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

31

TANK ASSY, RESERVOIR

17910-17E10

Unavailable

31

TANK ASSY, RESERVOIR | CALIFORNIA ONLY; Includes Item(s) 32

17910-17E01

Unavailable

32

CAP, WATER RESERVOIR TANK

17932-12C00

$4.48

33

HOSE, RESERVOIR TANK INLET

17981-46E00

Unavailable

34

HOSE, RESERVOIR TANK INLET | MODEL S/T This part replaces 17981-21E00.

17981-21810

$42.85

34

HOSE, RESERVOIR TANK OVER FLO | MODEL V/W

17981-21810

$42.85

35

SCREW (6X20)

09136-06022

$2.21

36

CLIP, RESERVOIR TANK HOSE

09401-08411

$1.78

37

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

38

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

39

GAUGE ASSY, WATER TEMPERATURE

34850-50A00

$82.87

40

SWITCH, RADIATOR FAN | MODEL S/T/V This part replaces 17680-45D00.

17680-48E00

$119.72

40

SWITCH, RADIATOR FAN | MODEL W

17680-48E00

$119.72
