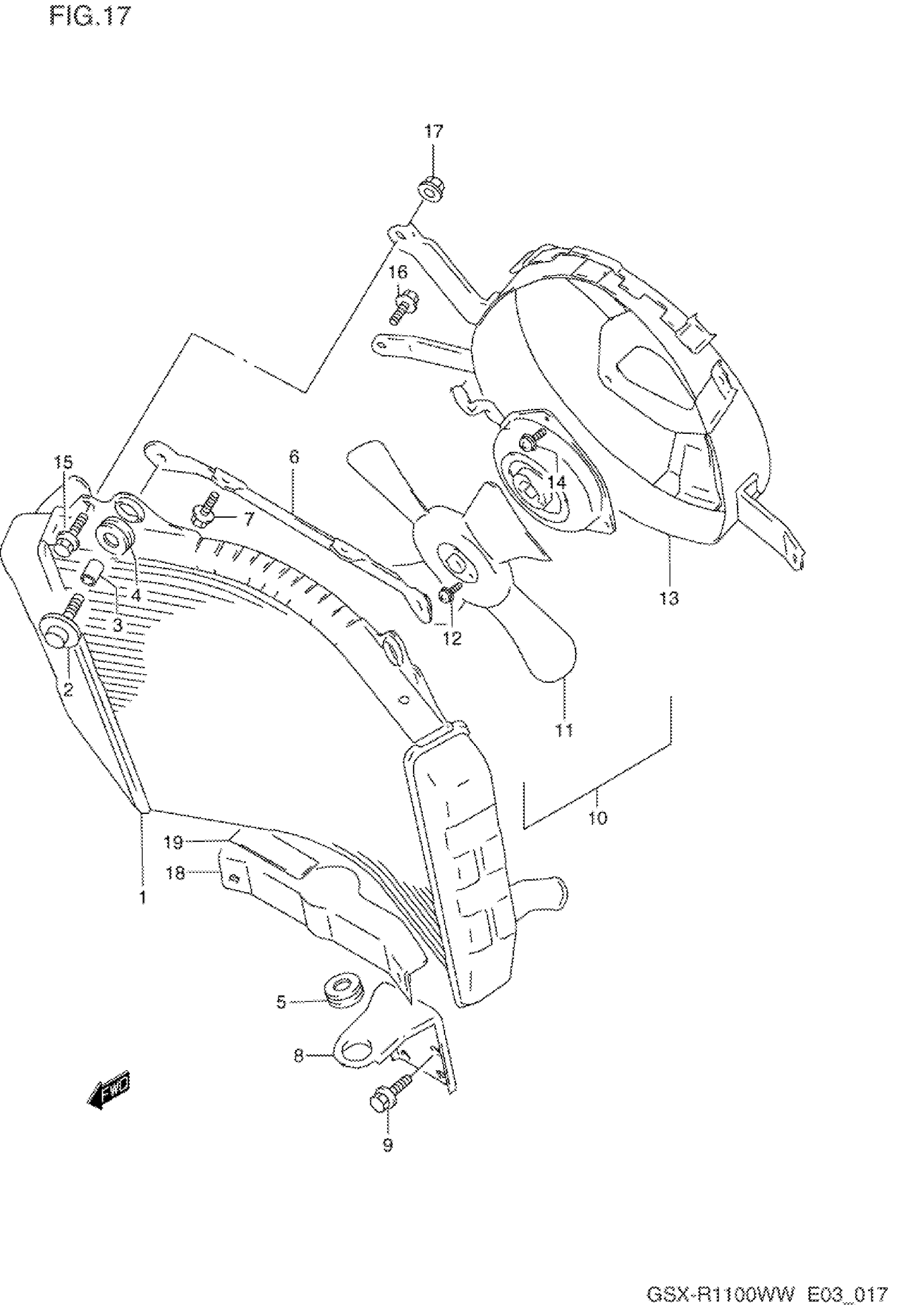

Suzuki GSX-R1100W (1998) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-46E00

Unavailable

2

BOLT (6X25)

09116-06147

$3.20

3

SPACER (6.5X10.5X12)

09180-07004

$2.30

4

CUSHION, RADIATOR UPPER

17787-19A00

$3.56

5

CUSHION This part replaces 09320-12053.

09320-12092

$3.37

6

BRACKET, RADIATOR UPPER

17740-17E00

Unavailable

7

BOLT | MODEL P This part replaces 01177-06125.

01580-0612A

$2.32

7

BOLT | MODEL R/S/T/V/W This part replaces 01580-06163.

01580-0616A

$2.42

8

BRACKET, RADIATOR LOWER

17750-46E00

Unavailable

9

BOLT | MODEL P This part replaces 01174-06165.

01580-0616A

$2.42

9

BOLT, REAR | MODEL R/S/T/V/W This part replaces 01580-06203.

01580-0620B

$3.30

10

FAN ASSY, RADIATOR | MODEL P/R This part replaces 17800-46E00.

17800-46E02

Unavailable

10

FAN ASSY, RADIATOR | MODEL S This part replaces 17800-46E01.

17800-46E02

Unavailable

10

FAN ASSY, RADIATOR | MODEL T/V/W; Includes Item(s) 11 - 14

17800-46E02

Unavailable

11

FAN ASSY

17820-17E00

Unavailable

12

SCREW | MODEL P/R This part replaces 17801-05A00.

02112-0406B

$1.55

12

SCREW | MODEL S/T/V/W This part replaces 02112-04063.

02112-0406B

$1.55

13

SHROUD ASSY, FAN

17770-46E00

Unavailable

14

SCREW | MODEL P/R

17801-45C00

Unavailable

14

SCREW | MODEL S/T/V/W This part replaces 02142-05083.

02142-0508A

$1.49

15

BOLT, CLAMP | MODEL P This part replaces 01517-06125.

01550-0612A

$1.97

15

BOLT, CLAMP | MODEL R/S/T/V/W This part replaces 01550-06123.

01550-0612A

$1.97

16

BOLT | MODEL P This part replaces 01517-06108.

01550-06107

$2.80

16

BOLT | MODEL R/S/T/V/W This part replaces 01550-06103.

01550-0610A

$1.97

17

NUT | MODEL P This part replaces 08316-16064.

08316-1006B

$2.50

17

NUT | MODEL R/S/T/V/W This part replaces 08316-10063.

08316-1006B

$2.50

18

BRACKET, RADIATOR LOWER NO.2

17760-46E00

Unavailable

19

CUSHION (50X42X2.0) | MODEL P/R/S This part replaces 94476-17E00.

51553-15D40

$7.18

19

CUSHION, RADIATOR LOWER | MODEL T/V/W

51553-15D40

$7.18
