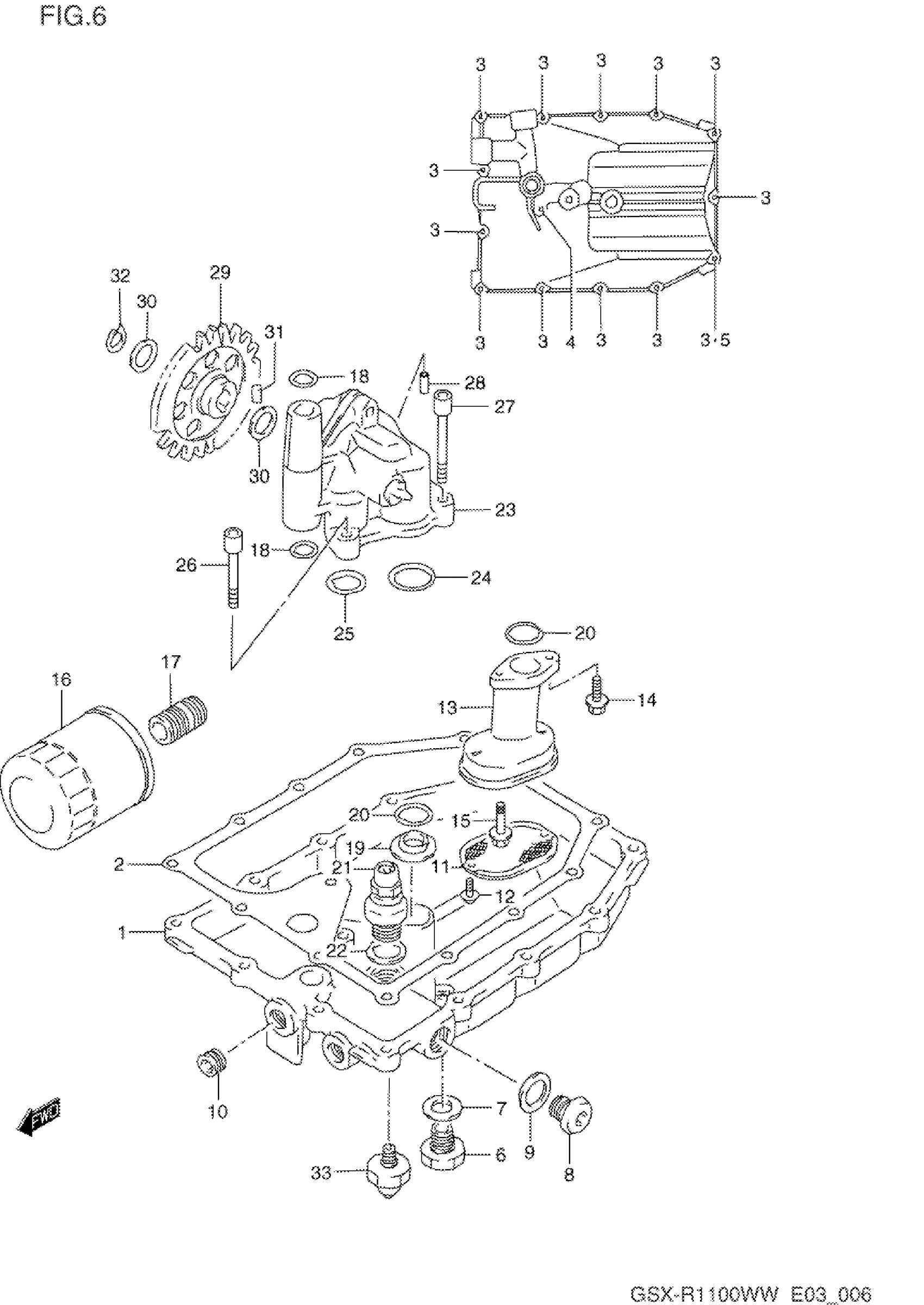

Suzuki GSX-R1100W (1998) OIL PAN - OIL PUMP Diagram

#

Description
Price

1

PAN, OIL

11511-46E02

Unavailable

2

GASKET, OIL PAN | MODEL P/R This part replaces 11489-17E00.

11489-17E01

Unavailable

2

GASKET, OIL PAN | MODEL S/T/V/W

11489-17E01

Unavailable

3

BOLT | MODEL P

01547-06257

$2.01

3

BOLT, FINAL GEAR CASE COVER | MODEL R/S/T/V/W This part replaces 01547-06253.

01547-0625B

$2.43

4

BOLT | MODEL P

01547-06357

$2.01

4

BOLT, WATER PUMP | MODEL R/S/T/V/W This part replaces 01547-06353.

01547-0635B

$2.73

5

GASKET

09168-06024

$2.19

6

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$4.73

7

GASKET

09168-14002

$2.83

8

PLUG, OIL DRAIN This part replaces 09248-16010.

09248-16012

$4.19

9

GASKET

09168-16002

$1.89

10

JET, OIL PAN GALLERY

11532-46E00

$13.02

11

STRAINER, ENGINE OIL

16520-38A00

$9.17

12

SCREW | MODEL P/R This part replaces 02112-75123.

02112-7512A

$2.43

12

BOLT | MODEL S/T/V/W

01580-05123

Unavailable

13

PROTECTOR, OIL STRAINER

16525-46E01

Unavailable

14

BOLT | MODEL P This part replaces 01517-06206.

01550-0620A

$1.97

14

BOLT | MODEL R/S/T/V/W This part replaces 01550-06203.

01550-0620A

$1.97

15

BOLT | MODEL P This part replaces 01517-06556.

01550-0655B

$3.58

15

BOLT | MODEL R/S/T/V/W This part replaces 01550-06553.

01550-0655B

$3.58

16

FILTER, ENGINE OIL | MODEL P/R/S/T/V This part replaces 16510-06B01.

16510-07J00

$11.99

16

FILTER, ENGINE OIL | MODEL W This part replaces 16510-34E00.

16510-07J00

$11.99

17

UNION,OIL STAND This part replaces 16591-06B00.

16591-06B01

$6.45

18

O RING, OIL GALLERY

09280-12012

$4.19

19

GASKET, OUTLET

16529-27A01

$2.15

20

O RING (D:3.2,ID:17.8)

09280-18009

$5.26

21

VALVE ASSY, OIL RELIEF | ~E.NO.109413 This part replaces 16440-17C00.

16440-17C10

$75.95

21

VALVE ASSY, OIL RELIEF | E.NO.109414~ This part replaces 16440-17C01.

16440-17C10

$75.95

22

GASKET

09168-16002

$1.89

23

PUMP ASSY, ENGINE OIL

16400-46E00

Unavailable

24

O RING (D:2.4,ID:26.2)

09280-26005

$2.31

25

O RING (D:3.2,ID:17.8)

09280-18009

$5.26

26

BOLT | MODEL P This part replaces 07110-06307.

07130-06307

$4.70

26

BOLT | MODEL R/S/T/V/W This part replaces 07130-06303.

07130-0630B

$3.04

27

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 07110-06357.

07130-06357

Unavailable

27

BOLT | MODEL R/S/T/V/W This part replaces 07130-06353.

07130-0635B

$3.04

28

PIN

04211-09129

$1.64

29

GEAR, OIL PUMP DRIVEN (NT:37)

16332-19C00

$83.30

30

WASHER

08221-12205

$2.50

31

PIN

09261-05006

$1.46

32

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.77

33

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D00.

37820-33D11

$27.58
