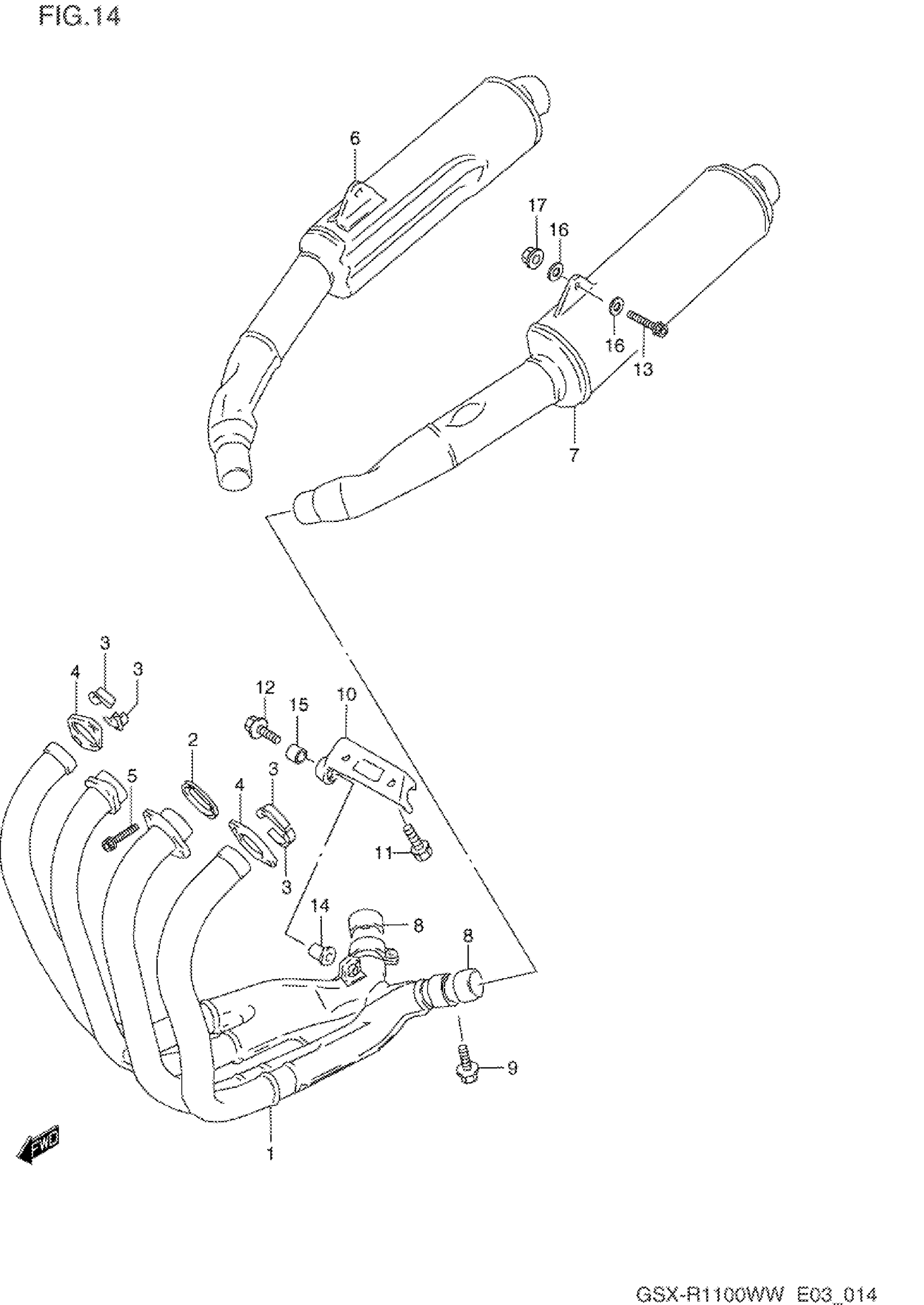

Suzuki GSX-R1100W (1998) MUFFLER (MODEL P/R) Diagram

#

Description
Price

1

EXHAUST ASSY

14100-46E00

Unavailable

2

GASKET This part replaces 14181-46E00.

14181-46E10

$7.22

3

PLATE, EXHAUST PIPE

14155-27A00

$3.56

4

CLAMP, EXHAUST PIPE

14182-27A00

Unavailable

5

BOLT | MODEL P This part replaces 07130-08255.

07130-0825B

$3.37

5

BOLT | MODEL R This part replaces 07130-08253.

07130-0825B

$3.37

6

BODY, MUFFLER RH | MODEL P This part replaces 14310-46E21-H01.

14310-46E12-H01

Unavailable

6

BODY, MUFFLER RH | MODEL R

14310-46E12-H01

Unavailable

7

BODY, MUFFLER LH | MODEL P This part replaces 14340-46E21-H01.

14340-46E12-H01

Unavailable

7

BODY, MUFFLER LH | MODEL R

14340-46E12-H01

Unavailable

8

CONNECTOR, MUFFLER

14771-46E00

$18.68

9

BOLT | MODEL P This part replaces 01517-08407.

01550-08407

$3.42

9

BOLT | MODEL R This part replaces 01550-08403.

01550-0840A

$3.05

10

DAMPER, MUFFLER SUPPORT CENTE

14770-46E00

Unavailable

11

BOLT This part replaces 09100-08240.

09100-08299

$4.17

12

BOLT (8X35)

09118-08080

$3.03

13

BOLT

09116-10122

Unavailable

14

SPACER (8.6X12X18.5)

09180-08157

$7.12

15

CUSHION

09320-12062

Unavailable

16

WASHER, LOWER (10.5X24X2.3) | MODEL P This part replaces 09160-10066.

09160-10093

$2.35

16

WASHER, LOWER (10.5X24X2.3) | MODEL R This part replaces 09160-10505.

09160-10093

$2.35

17

NUT | MODEL P This part replaces 08316-16105.

08316-1010B

$2.66

17

NUT | MODEL R This part replaces 08316-10103.

08316-1010B

$2.66

18

REFER TO FIG.14A(C-11) FOR

SPECIAL NOTE

Unavailable
