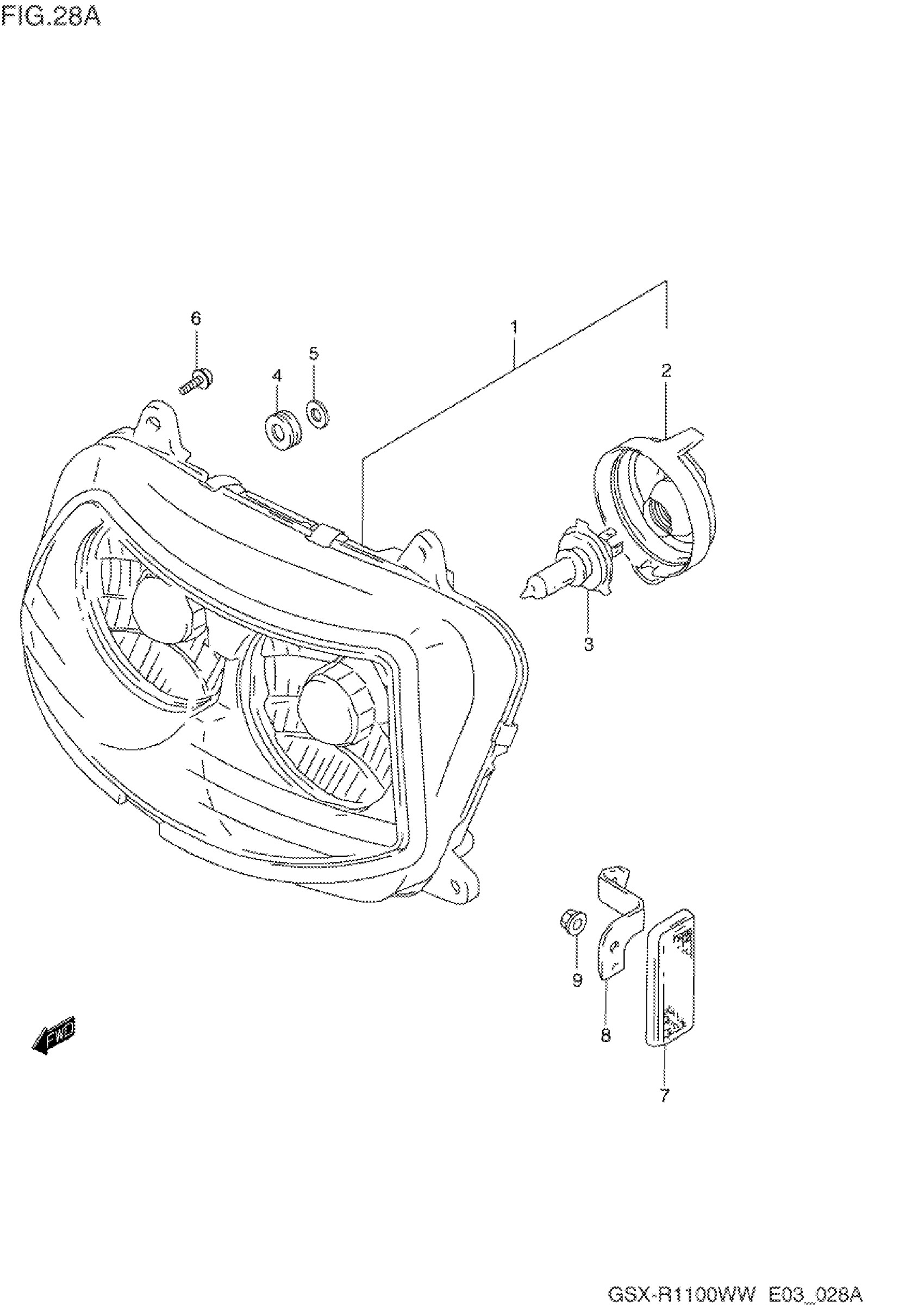

Suzuki GSX-R1100W (1998) HEADLAMP (MODEL S/T/V/W) Diagram

HEADLAMP ASSY | Includes Item(s) 2

35100-18E00-999

Unavailable

COVER, SOCKET

35173-18E00

Unavailable

BULB (12V60/55W,H4)

09471-12060

$25.15

CUSHION (8.4X18X6) This part replaces 09320-08051.

09320-08066

$8.24

WASHER (5.5X16X1.20)

09160-05037

$1.49

SCREW This part replaces 03511-05163.

03511-0516A

$1.86

REFLECTOR, FRONT SIDE

35950-43431

$17.83

BRACKET, RH

35956-17D00

Unavailable

BRACKET, LH

35957-17D00

Unavailable

NUT This part replaces 08310-00053.

08310-0005A

$1.84
