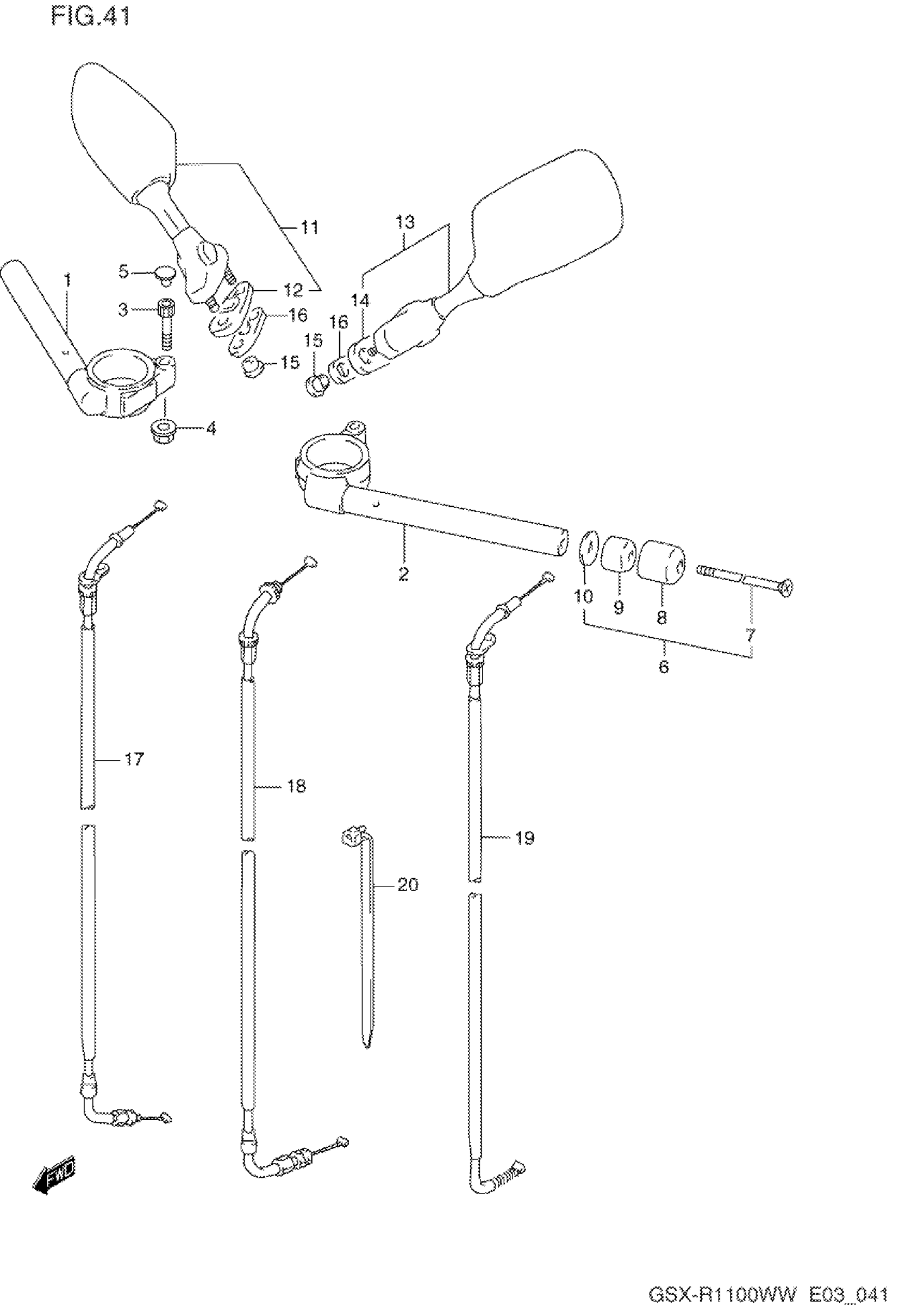

Suzuki GSX-R1100W (1998) HANDLEBAR (MODEL P/R) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 56111-46E00.

56111-46E01

Unavailable

2

HANDLEBAR, L This part replaces 56151-46E00.

56151-46E01

Unavailable

3

BOLT

07130-10507

Unavailable

4

NUT

08319-31107

$2.73

5

CAP

09250-08014

$2.85

6

BALANCER SET,HN | MODEL P This part replaces 56200-46820.

56200-48822

Unavailable

6

BALANCER SET,HN | MODEL R; Includes Item(s) 7 - 10 This part replaces 56200-46830.

56200-48822

Unavailable

7

SCREW | MODEL P This part replaces 02132-06605.

02122-0660B

$3.04

7

SCREW | MODEL R This part replaces 02122-06603.

02122-0660B

$3.04

8

CAP

56274-00A11

Unavailable

9

BALANCER

56271-00A00

Unavailable

10

SPACER This part replaces 56275-26D00.

56275-26D01

Unavailable

11

MIRROR ASSY, REAR VIEW RH | Includes Item(s) 12

56500-18D01-84N

Unavailable

12

CUSHION, MIRROR RH

56528-18D00

Unavailable

13

MIRROR ASSY, REAR VIEW LH | Includes Item(s) 14

56600-18D01-84N

Unavailable

14

CUSHION, MIRROR LH

56628-18D00

Unavailable

15

NUT, MIRROR

56619-12C00

$7.78

16

CUSHION, MIRROR

94576-22D00

$5.44

17

CABLE ASSY,THRO | MODEL P~F.NO.100893 This part replaces 58300-17E00.

58300-17E01

Unavailable

17

CABLE ASSY, THROTTLE NO.1 | MODEL PF.NO.100894~MODEL RCALIFORNIA ONLY

58300-17E20

Unavailable

18

CABLE ASSY,THRO | MODEL P~F.NO.100893 This part replaces 58300-17E10.

58300-17E11

Unavailable

18

CABLE ASSY, THROTTLE NO.2 | MODEL PF.NO.100894~MODEL RCALIFORNIA ONLY

58300-17E30

Unavailable

19

CABLE, STARTER

58410-46E00

$49.63

20

CLAMP

09407-25401

$4.66

21

REFER TO FIG.41A(I- 4) FOR

SPECIAL NOTE

Unavailable
