1998 Suzuki GSX-R1100W Handle Switch Diagram

← All diagrams

Find the part on the Handle Switch diagram for your 1998 Suzuki GSX-R1100W, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

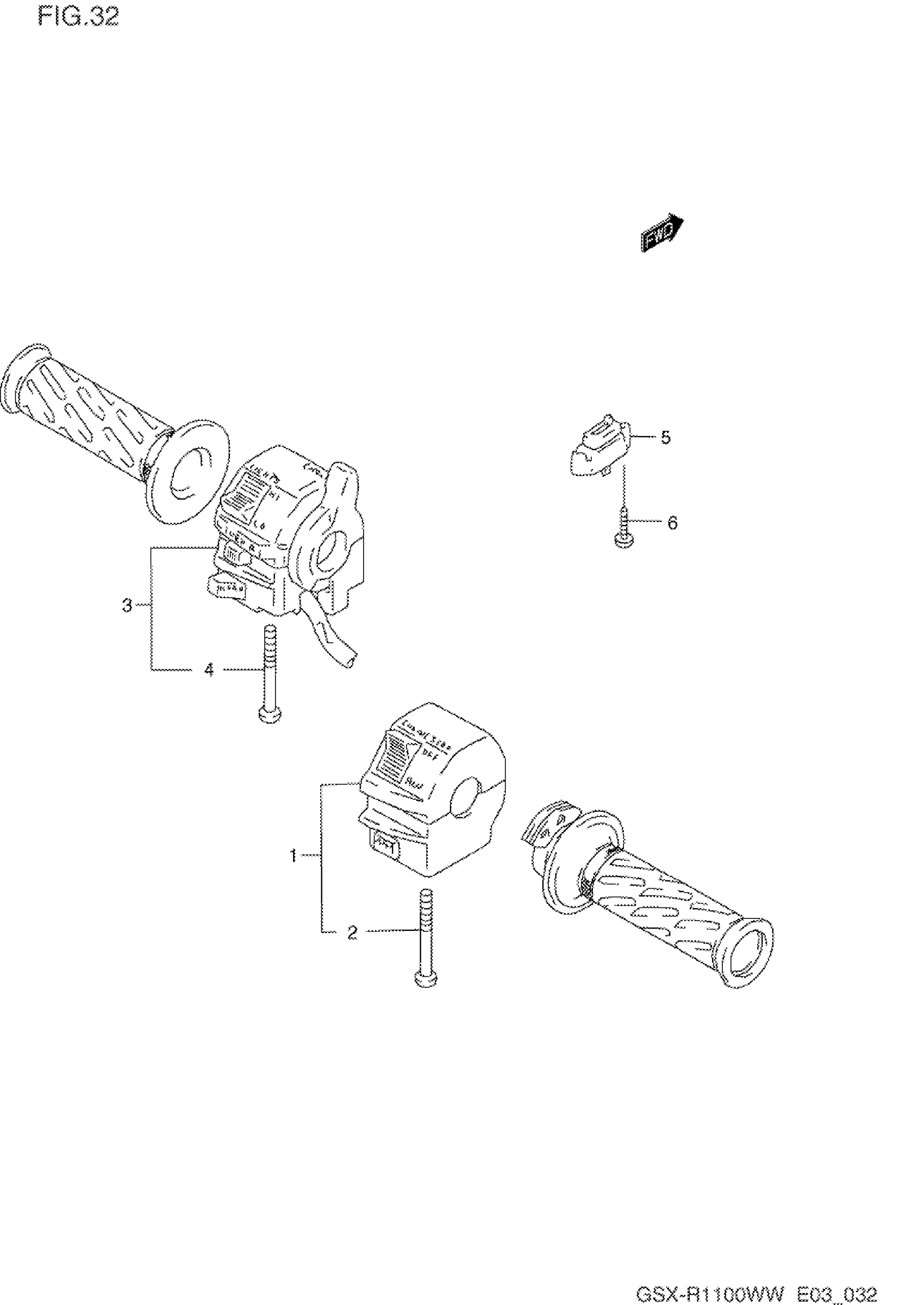

1998 Suzuki GSX-R1100W Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWITCH ASSY,HAN | MODEL P/R/S This part replaces 37200-17E31.

37200-26E30

1
Out of stock

1

SWITCH ASSY,HAN | MODEL T This part replaces 37200-17E40.

37200-26E30

1
Out of stock

1

SWITCH ASSY,HAN | MODEL V/W; Includes Item(s) 2 This part replaces 37200-17E41.

37200-26E30

1
Out of stock

2

.SCREW This part replaces 02112-05455.

02112-0545B

2
Out of stock

3

SWITCH ASSY, HANDLE LH | Includes Item(s) 4

37400-17E31

1
Out of stock

4

.SCREW This part replaces 02112-05455.

02112-0545B

2
Out of stock

5

SWITCH ASSY, CLUTCH | MODEL V/W

37560-38A00

1
Out of stock

6

SCREW, CLUTCH SWITCH | MODEL V/W This part replaces 37564-26E00.

09132-03017

2
Out of stock
