1998 Suzuki GSX-R1100W Battery Diagram

← All diagrams

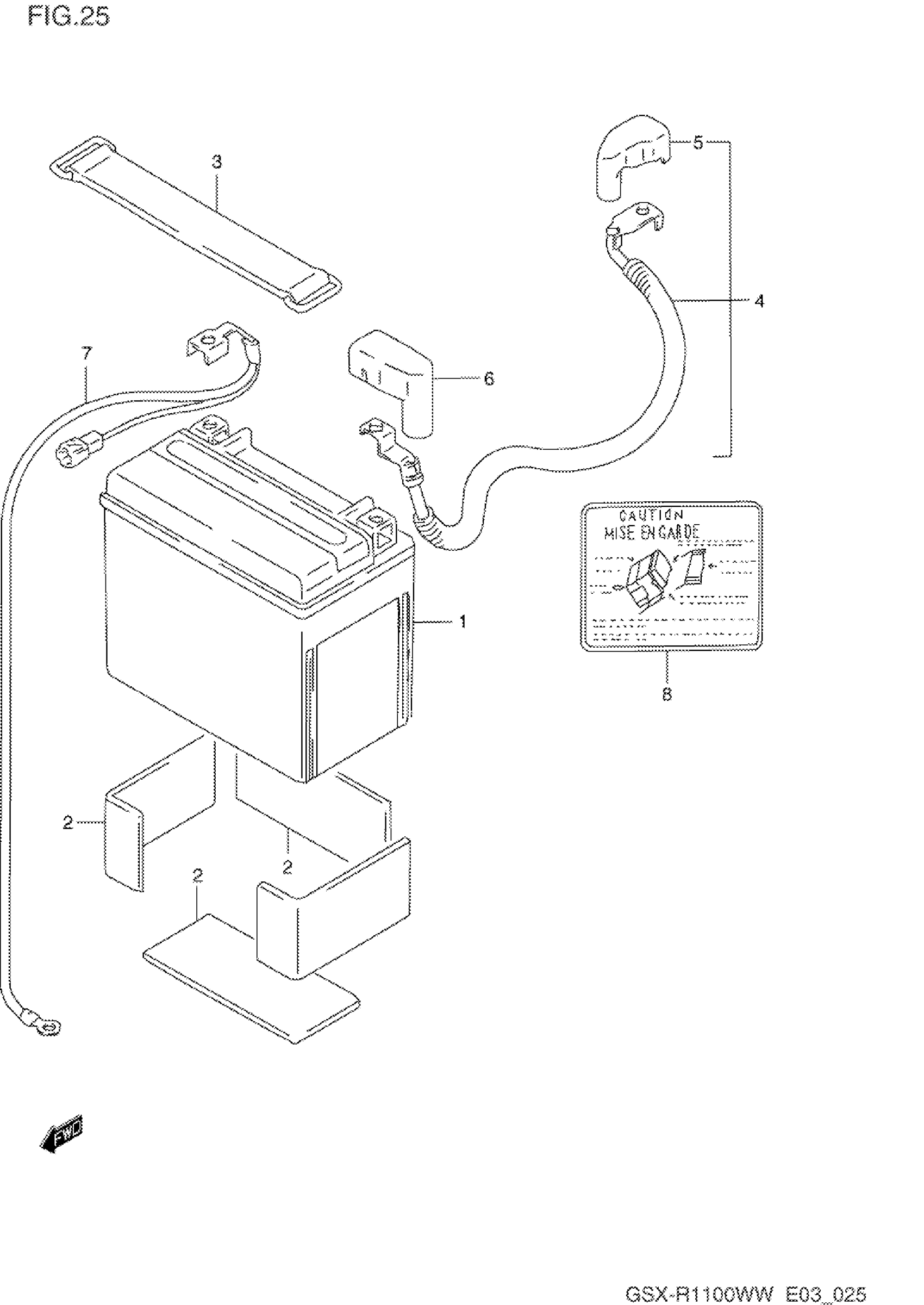

Find the part on the Battery diagram for your 1998 Suzuki GSX-R1100W, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Suzuki GSX-R1100W Battery Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BATTERY (FTX12-BS,12V,10AH) | MODEL P/R/S/T/V This part replaces 33610-17E00.

33610-48E20

1
Out of stock

1

BATTERY (FTX12-BS,12V,10AH) | MODEL W This part replaces 33610-17E10.

33610-48E20

1
Out of stock

2

CUSHION | CUT AS REQUIRED PROFILE(50X115)

33651-37000

4
Out of stock

3

BAND

09462-00015

1
Out of stock

4

LEAD WIRE (+) | MODEL P This part replaces 33820-46E00.

33820-46E01

1
Out of stock

4

LEAD WIRE (+) | MODEL R/S/T/V/W; Includes Item(s) 5 - 6

33820-46E01

1
Out of stock

5

CAP, TERMINAL | MODEL P

33624-01D10

1
Out of stock

6

CAP, BATTERY (+) TERMINAL | MODEL R This part replaces 33624-38400.

33624-43500

1
Out of stock

6

CAP, BATTERY PLUS | MODEL S/T/V/W

33624-43500

1
Out of stock

7

LEAD WIRE (-)

33860-46E00

1
Out of stock

8

PLATE, BATTERY CAUTION

33690-17E00

1
Out of stock
