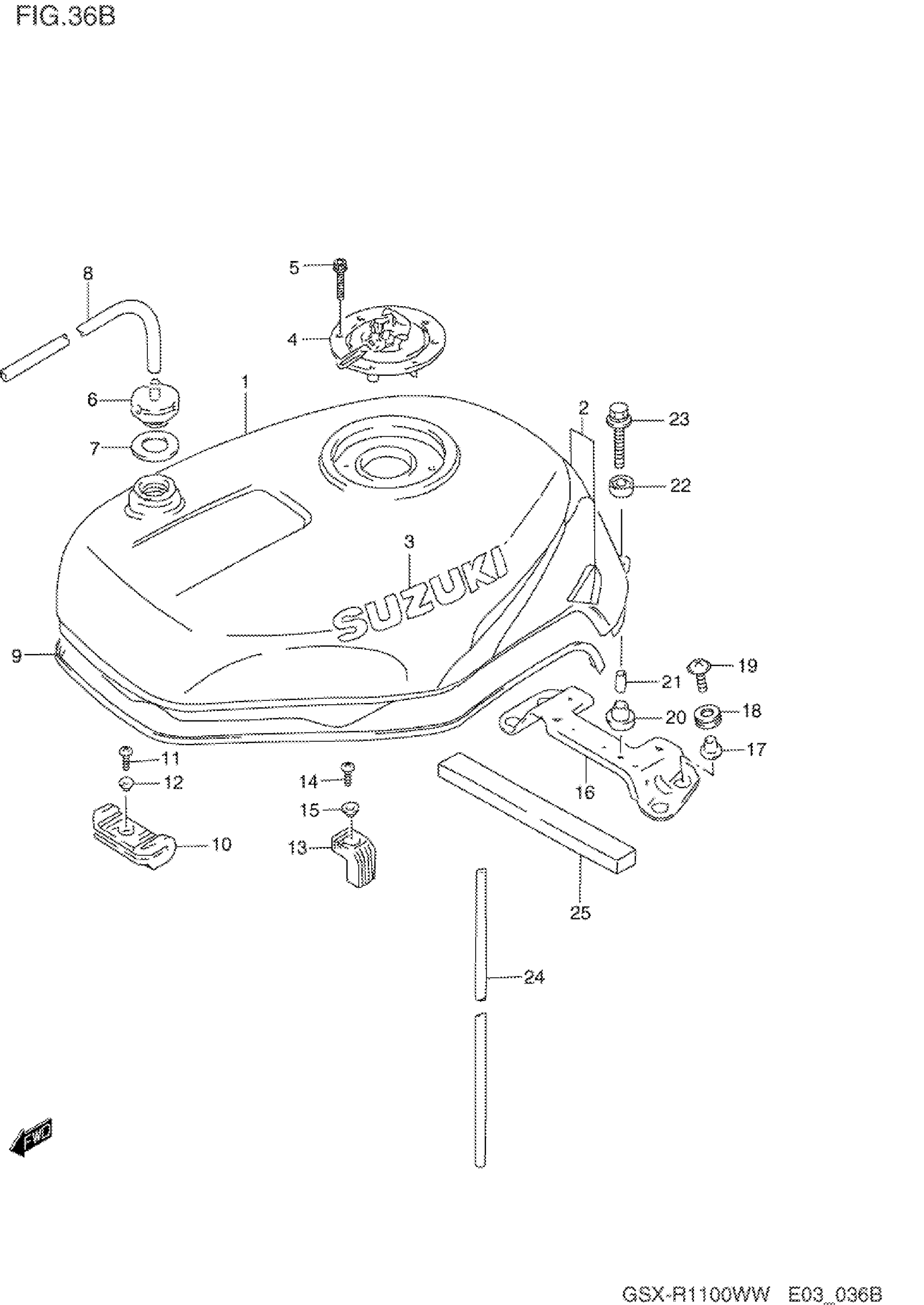

Suzuki GSX-R1100W (1998) FUEL TANK (MODEL T) Diagram

#

Description
Price

1

TANK ASSY, FUEL | FOR E9P

44100-46EG0-E9S

Unavailable

1

TANK ASSY, FUEL | FOR C3B

44100-46EG0-3CG

Unavailable

1

TANK ASSY, FUEL | CALIFORNIA ONLY

44100-46EJ0-E9S

Unavailable

1

TANK ASSY, FUEL | CALIFORNIA ONLY; Includes Item(s) 2 - 3

44100-46EJ0-3CG

Unavailable

2

TAPE, FUEL TANK | FOR E9S

68110-46E00-E9P

Unavailable

2

TAPE, FUEL TANK | FOR 3CG

68110-46E00-C3B

Unavailable

3

EMBLEM (WHITE) This part replaces 68111-12C00-0JW.

68111-12C30-0JW

$21.47

4

CAP SET, FUEL TANK

44201-01852

Unavailable

5

BOLT

09106-05017

$2.83

6

PLUG, BREATHER

44240-06B10

$38.33

6

PLUG, BREATHER | CALIFORNIA ONLY

44240-28A01

Unavailable

7

GASKET

09168-12012

$1.83

7

GASKET | CALIFORNIA ONLY

09168-27001

Unavailable

8

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

9

MOLDING, FUEL TANK

68241-04X50-00B

$27.30

10

CUSHION, FRONT

44511-41C00

Unavailable

11

SCREW This part replaces 02142-05103.

02142-0510B

$1.78

12

WASHER

09169-05012

$2.38

13

CUSHION, SIDE

44545-33C01

Unavailable

14

SCREW This part replaces 02142-06203.

02142-0620A

$1.49

15

WASHER This part replaces 09169-06045.

09169-06055

$2.27

16

BRACKET, REAR

44530-46E01

Unavailable

17

WASHER

09169-06062

$2.50

18

CUSHION, BRACKET

09320-09009

$4.64

19

SCREW

09136-06126

$3.15

20

CUSHION, LOWER

09320-10038

$2.61

21

SPACER This part replaces 09180-06072.

09180-06271

$2.35

22

CUSHION, UPPER

09320-14017

$2.35

23

BOLT This part replaces 01550-06353.

01550-0635A

$2.32

24

HOSE(7X10.2X200 This part replaces 09352-70103-00B.

09352-70104-00B

$15.32

25

CUSHION, AIR SEAL

13841-17E00

Unavailable

26

COLOR : E9S = 0JW(WHITE),

SPECIAL NOTE

Unavailable
