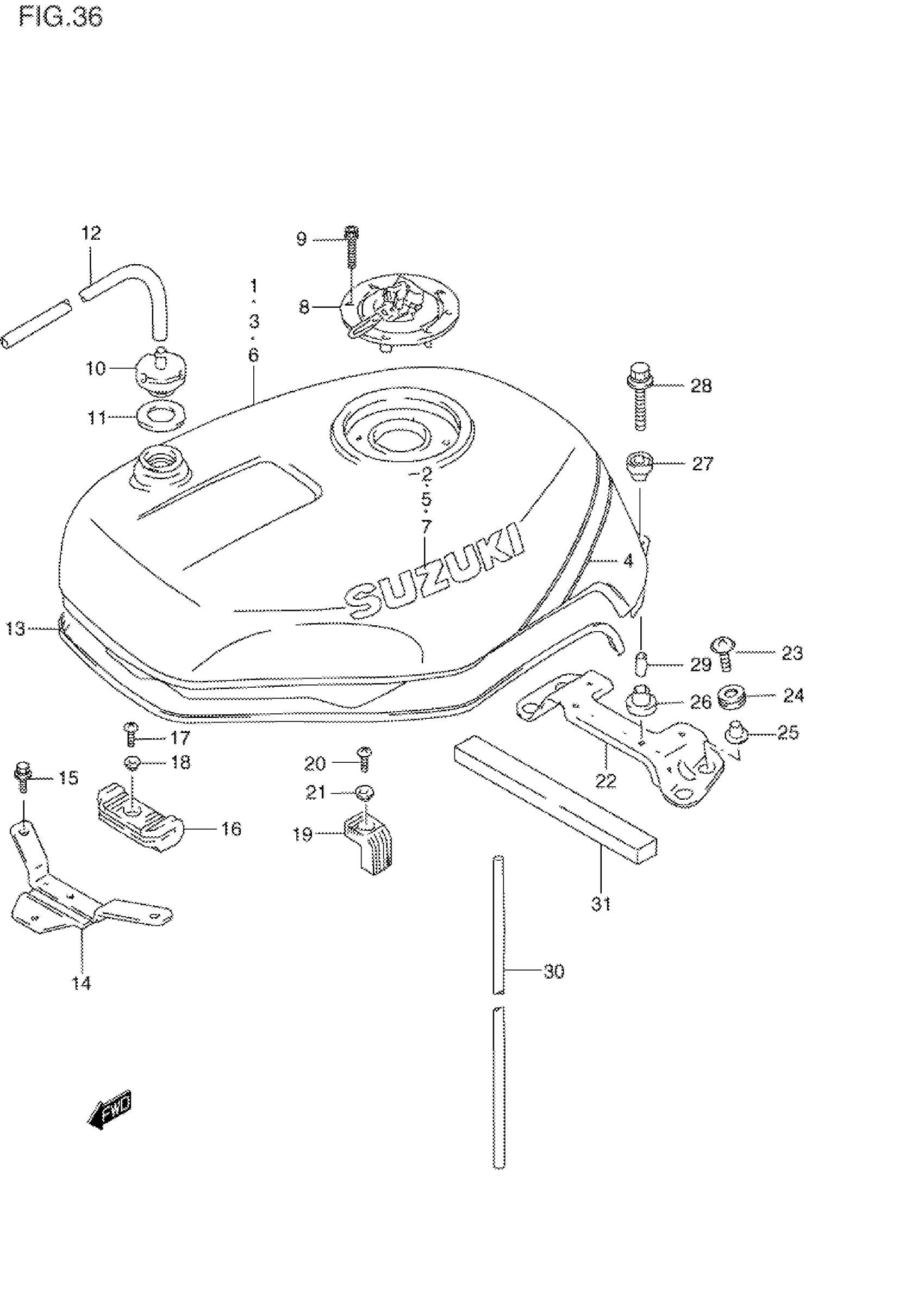

Suzuki GSX-R1100W (1998) FUEL TANK (MODEL P/R) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 44100-46850-17U.

44100-46E41-17U

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY,MODEL P; Includes Item(s) 2 This part replaces 44100-46870-17U.

44100-46E52-17U

Unavailable

2

EMBLEM | MODEL P FOR 17U This part replaces 68111-12C00-33J.

68111-12C30-33J

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 44100-46820-M18.

44100-46E11-M18

Unavailable

3

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY,MODEL P; Includes Item(s) 4 - 5 This part replaces 44100-46840-M18.

44100-46E22-M18

Unavailable

4

TAPE, FUEL TANK | MODEL P FOR M18

68115-17E11-A5S

Unavailable

5

EMBLEM (WHITE) | MODEL P FOR M18 This part replaces 68111-12C00-0JW.

68111-12C30-0JW

$21.47

6

TANK ASSY,FUEL | MODEL R FOR M18 This part replaces 44100-46EA0-1LE.

44100-46EA1-1LE

Unavailable

6

NO DESCRIPTION AVAILABLE | MODEL R FOR 33J This part replaces 44100-46EA0-33J.

44100-46EA1-33J

Unavailable

6

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY,MODEL R This part replaces 44100-46EC0-1LE.

44100-46EC1-1LE

Unavailable

6

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY,MODEL R; Includes Item(s) 7 - 7 This part replaces 44100-46EC0-33J.

44100-46EC1-33J

Unavailable

7

EMBLEM (WHITE) | MODEL R FOR 1LE This part replaces 68111-12C00-0JW.

68111-12C30-0JW

$21.47

7

EMBLEM | MODEL R FOR 33J This part replaces 68111-12C00-17U.

68111-12C30-17U

Unavailable

8

CAP SET, FUEL TANK This part replaces 44201-01851.

44201-01852

Unavailable

9

BOLT

09106-05017

$2.83

10

PLUG, BREATHER

44240-06B10

$38.33

10

PLUG, BREATHER | CALIFORNIA ONLY

44240-28A01

Unavailable

11

GASKET

09168-12012

$1.83

11

GASKET | CALIFORNIA ONLY

09168-27001

Unavailable

12

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

13

MOLDING This part replaces 68241-17E00.

68241-04X50-00B

$27.30

14

BRACKET, FRONT

44520-17E03

Unavailable

15

BOLT

01550-06167

$2.30

16

CUSHION, FRONT

44511-41C00

Unavailable

17

SCREW | MODEL P This part replaces 02142-05104.

02142-0510B

$1.78

17

SCREW | MODEL R This part replaces 02142-05103.

02142-0510B

$1.78

18

WASHER

09169-05012

$2.38

19

CUSHION, SIDE

44545-33C01

Unavailable

20

SCREW

02142-06207

$1.49

21

WASHER This part replaces 09169-06051.

09169-06055

$2.27

22

BRACKET, FUEL TANK REAR

44530-46E01

Unavailable

23

BOLT | MODEL P

09136-06022

$2.21

23

SCREW | MODEL R

09136-06126

$3.15

24

CUSHION, REAR

09320-09009

$4.64

25

SPACER

09169-06062

$2.50

26

CUSHION, REAR LOWER

09320-10038

$2.61

27

CUSHION, REAR UPPER

09320-14017

$2.35

28

BOLT This part replaces 01550-06353.

01550-0635A

$2.32

29

SPACER This part replaces 09180-06072.

09180-06271

$2.35

30

HOSE(7X10.2X200 This part replaces 09352-70103-00B.

09352-70104-00B

$15.32

31

CUSHION, AIR SEAL

13841-17E00

Unavailable

32

COLOR : M18 = 0JW(WHITE),

SPECIAL NOTE

Unavailable
