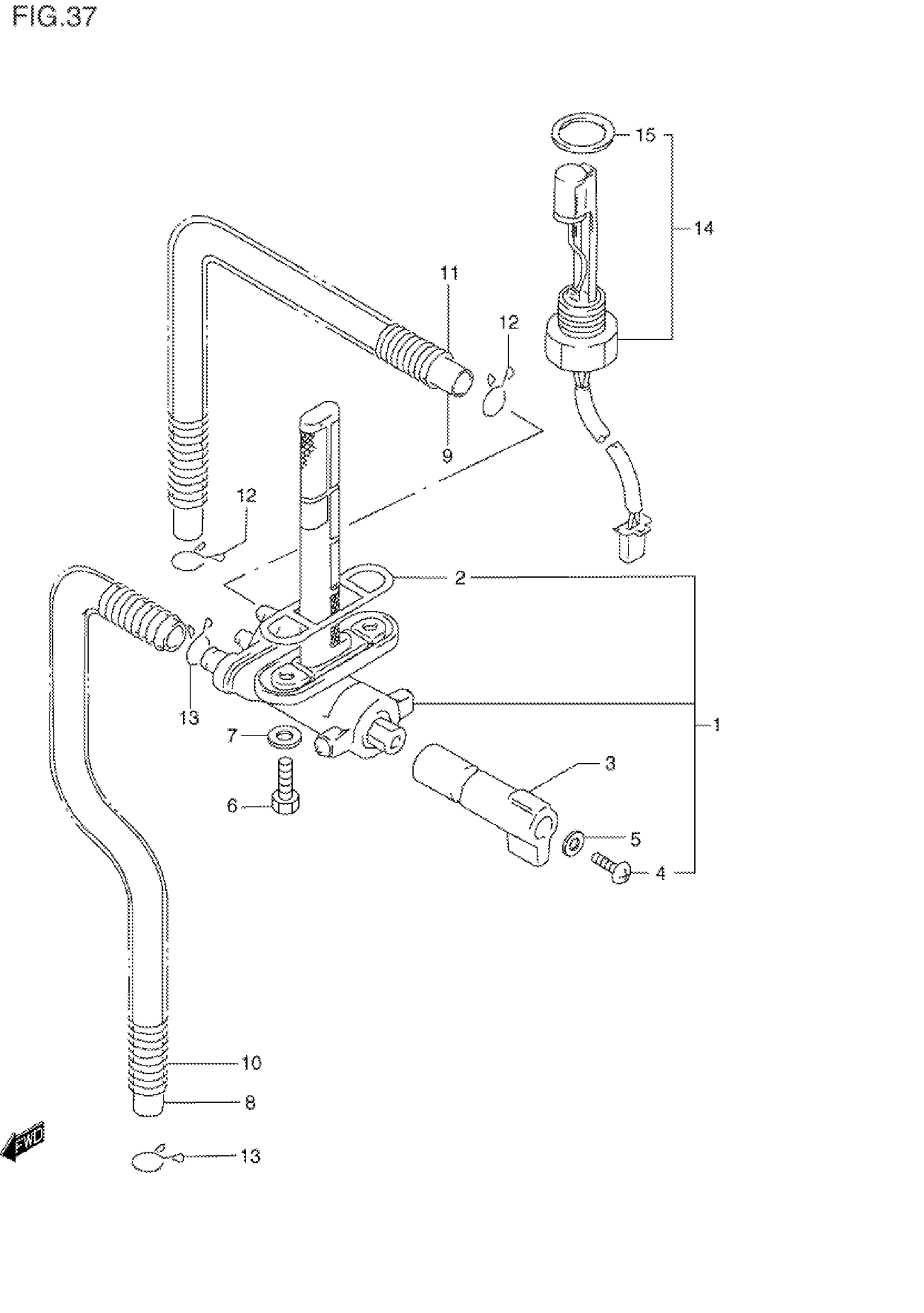

Suzuki GSX-R1100W (1998) FUEL COCK Diagram

#

Description
Price

1

COCK,FUEL | MODEL P/R This part replaces 44300-46E00.

44310-46E10

$185.50

1

COCK,FUEL | MODEL S/T/V/W; Includes Item(s) 2 - 5 This part replaces 44300-46E11.

44310-46E10

$185.50

2

O RING

44305-17C00

$7.85

3

LEVER | MODEL P/R This part replaces 44306-17E00.

44306-17E20

Unavailable

3

LEVER | MODEL S/T/V/W

44306-17E20

Unavailable

4

SCREW | MODEL P/R This part replaces 02112-04123.

02112-0412A

$1.49

4

SCREW | MODEL S/T/V/W This part replaces 02112-34123.

02112-3412B

$2.30

5

LOCK WASHER This part replaces 08321-01043.

08321-0104A

$1.84

6

BOLT

09128-06057

$1.65

7

GASKET

09168-06026

$3.10

8

HOSE(7X10.2X600 This part replaces 09352-70103-600.

09352-70104-600

$5.63

9

HOSE(7X10.2X600 This part replaces 09352-70103-600.

09352-70104-600

$5.63

10

SPRING This part replaces 09440-13038.

09440-13038-XC0

Unavailable

11

SPRING, NO.2 (L:270)

09440-13047

$4.82

12

CLIP

09401-10403

$1.65

13

CLIP This part replaces 09401-10201.

09401-10201-XC0

$2.19

14

GAUGE ASSY,FUEL | Includes Item(s) 15 This part replaces 34810-40C01.

34810-40C02

Unavailable

15

GASKET,FUEL LEV This part replaces 34825-40C00.

34825-40C01

$5.02
