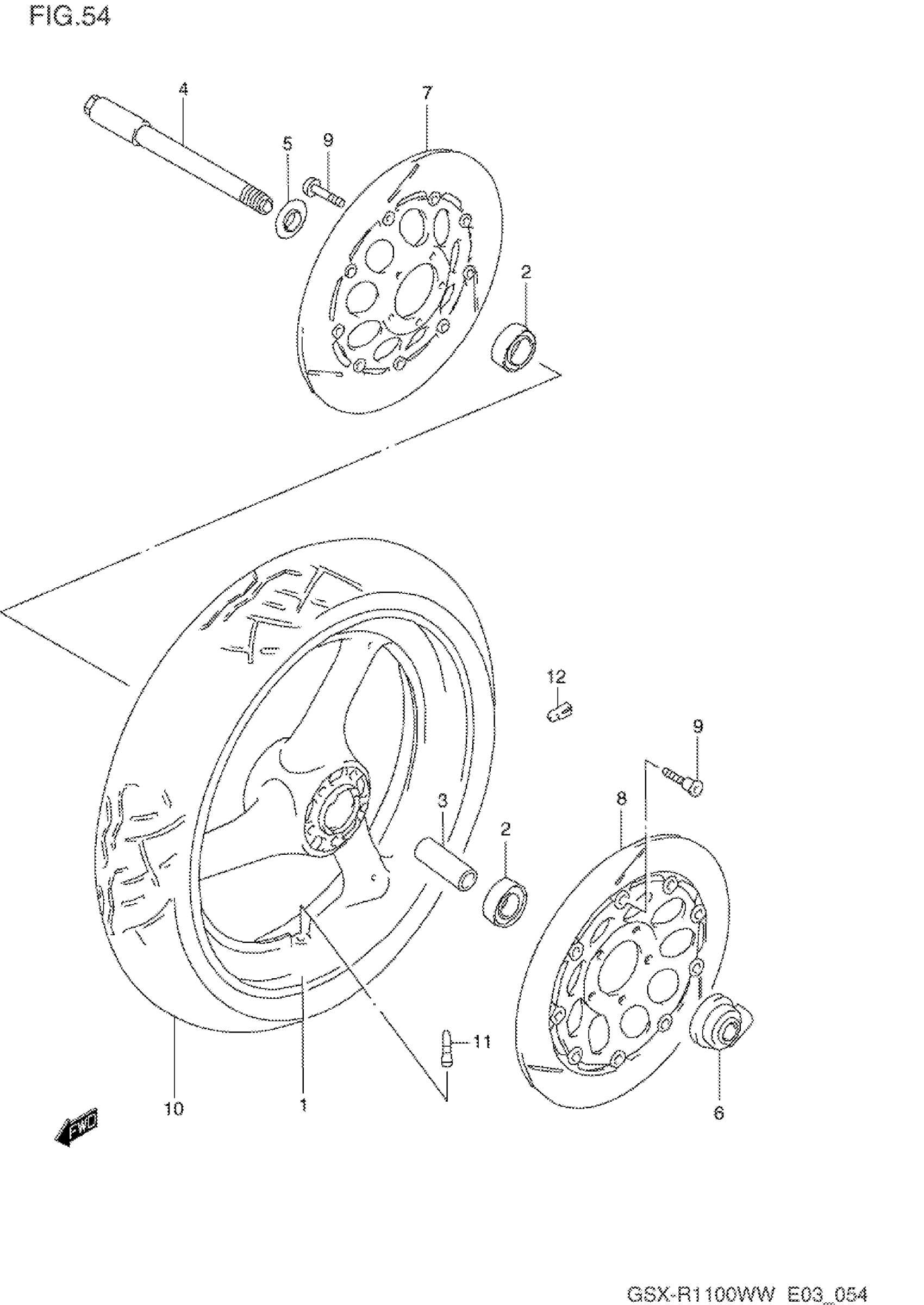

Suzuki GSX-R1100W (1998) FRONT WHEEL (MODEL P/R) Diagram

#

Description
Price

1

WHEEL, FRONT (17XMT3.50) | FOR M18

54111-17C10-1MJ

Unavailable

1

WHEEL, FRONT (17XMT3.50) | FOR 17U

54111-17C10-1TU

Unavailable

1

NO DESCRIPTION AVAILABLE | FOR 33J This part replaces 54111-17C10-1DR.

54111-17C10-12R

Unavailable

2

BEARING This part replaces 08123-62047.

08123-6204B

$17.41

3

SPACER

09180-20103

$26.25

4

AXLE, FRONT

54711-17D00

Unavailable

5

SPACER, BEARING RH

54740-17C00

$19.15

6

BOX ASSY, SPEEDOMETER GEAR

54600-17C01

Unavailable

7

DISC, FRONT BRAKE RH

59210-40C11

Unavailable

8

DISC, FRONT BRAKE LH

59220-40C11

Unavailable

9

BOLT (8X33) | MODEL P This part replaces 09106-08082.

09106-08148

$4.80

9

BOLT (8X33) | MODEL R This part replaces 09106-08125.

09106-08148

$4.80

10

TIRE, FRONT This part replaces 55110-46E10.

55110-46E20

Unavailable

11

VALVE ASSY | ->43130-24A11

43130-24A00

$8.85

11

VALVE ASSY, WHEEL RIM (TR412) This part replaces 43130-24A11.

43130-24A00

$8.85

12

BALANCER (10G)

55411-00A00

$1.49

12

BALANCER, WHEEL NO.2 This part replaces 55412-00A00.

55412-17G00

$7.05

12

BALANCER (30G) This part replaces 55413-00A00.

55413-00A01

Unavailable

13

REFER TO FIG.54A(K- 7) FOR

SPECIAL NOTE

Unavailable
