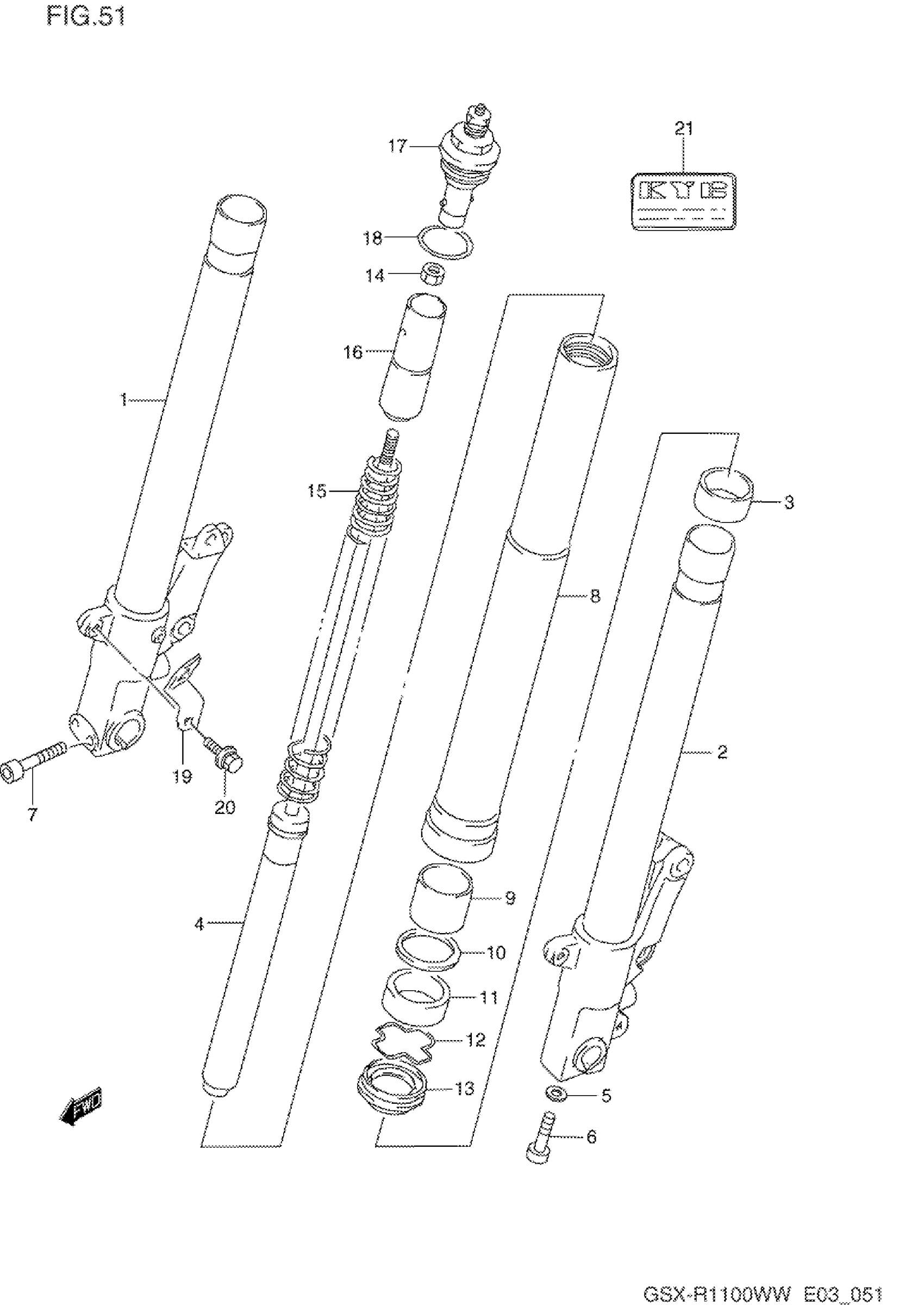

Suzuki GSX-R1100W (1998) FRONT DAMPER (MODEL P/R) Diagram

#

Description
Price

DAMPER ASSY, FRONT FORK RH

51103-46E00

Unavailable

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 1 - 18

51104-46E00

Unavailable

1

TUBE, INNER RH

51110-46E00

Unavailable

2

TUBE, INNER LH

51120-46E00

Unavailable

3

.PISTON This part replaces 51121-28C00.

51121-26E10

$30.22

4

CYLINDER ASSY

51146-46E00

Unavailable

5

GASKET

51148-40300

$2.03

6

BOLT

51147-40C00

$22.74

7

BOLT This part replaces 51766-40C40.

07130-08507

$4.77

8

TUBE, OUTER

51130-46E00

Unavailable

9

METAL, SLIDE

51167-40C40

$28.85

10

WASHER

51158-05A00

$5.83

11

SEAL, OIL This part replaces 51153-28C00.

51153-27C20

$13.63

12

RING, SNAP

51156-49440

$5.05

13

SEAL, DUST

51173-46E00

$23.07

14

.NUT, ROD

51352-13A60

$3.03

15

SPRING, MAIN

51171-46E00

Unavailable

16

SPACER, SPRING

51176-46E00

Unavailable

17

CAP

51351-46E00

Unavailable

18

O RING This part replaces 51117-28C00.

51117-28C01

$3.35

19

PLATE,FRONT FEN This part replaces 51590-17D10.

51590-17D1V

Unavailable

19

PLATE,FRONT FEN This part replaces 51580-17D10.

51580-17D1V

Unavailable

20

BOLT

01550-08127

$2.85

21

LABEL

51498-41C00

Unavailable

22

REFER TO FIG.51A(K- 3) FOR

SPECIAL NOTE

Unavailable
