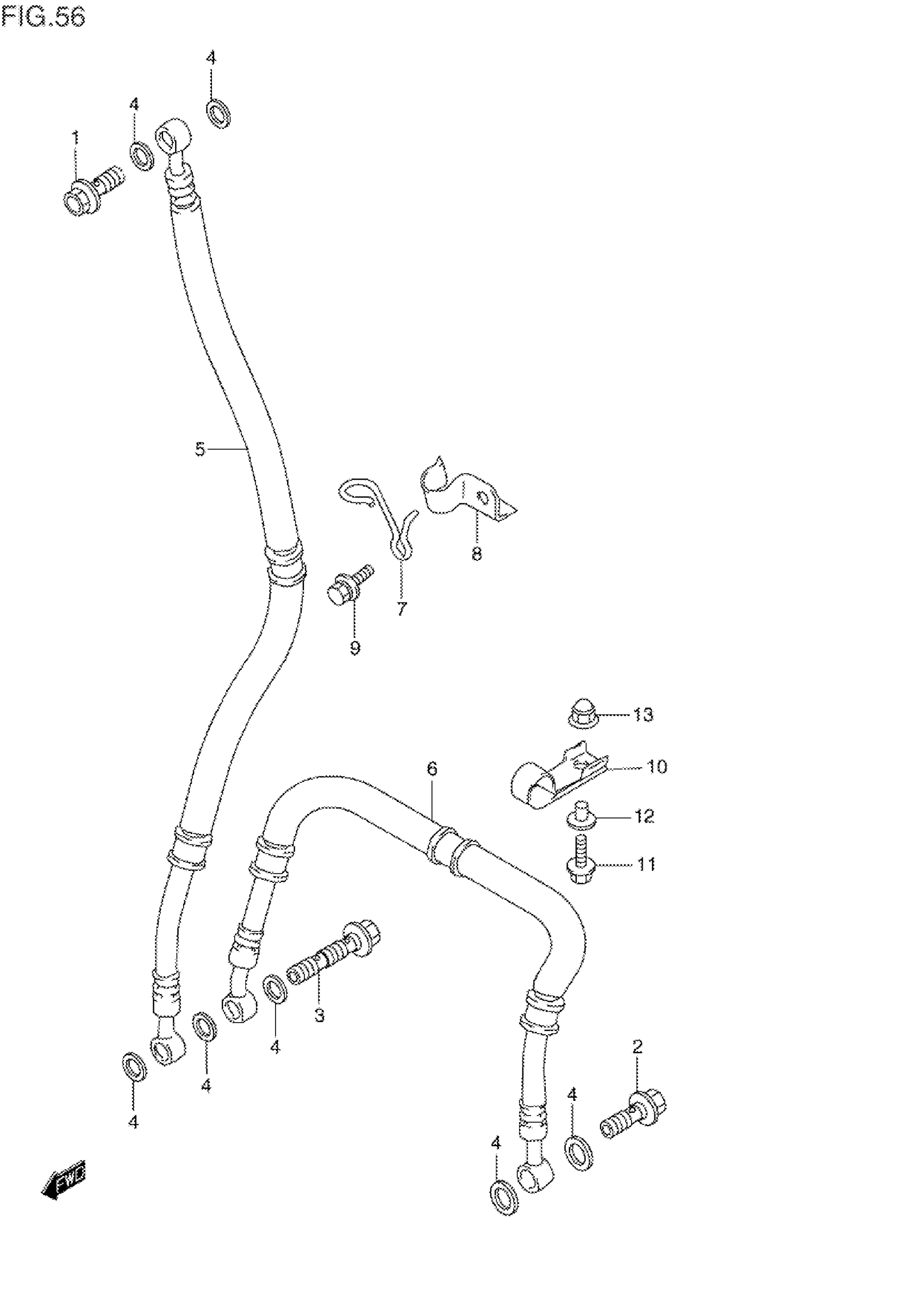

Suzuki GSX-R1100W (1998) FRONT BRAKE HOSE (MODEL P/R) Diagram

#

Description
Price

1

UNION | MODEL P This part replaces 09360-10033.

09360-10062

$5.81

1

UNION | MODEL R This part replaces 09360-10040.

09360-10062

$5.81

2

UNION | MODEL P This part replaces 09360-10033.

09360-10062

$5.81

2

UNION | MODEL R This part replaces 09360-10040.

09360-10062

$5.81

3

UNION This part replaces 09360-10038.

09360-10063

$8.53

4

WASHER (10X15X1.5)

09161-10009

$1.83

5

HOSE, FRONT BRAKE NO.1

59480-46E00

Unavailable

6

HOSE, FRONT BRAKE NO.2

59240-46E00

Unavailable

7

GUIDE, BRAKE HOSE NO.1 This part replaces 59268-46E00.

59268-46E01

Unavailable

8

CLAMP, BRAKE HOSE NO.1

59266-38D00

$15.83

9

BOLT | MODEL P This part replaces 01174-06165.

01580-0616A

$2.43

9

BOLT | MODEL R This part replaces 01580-06163.

01580-0616A

$2.43

10

CLAMP, BRAKE HOSE NO.2

59268-45D00

$12.75

11

BOLT | MODEL P This part replaces 01517-06164.

01550-0616A

$1.97

11

BOLT | MODEL R This part replaces 01550-06163.

01550-0616A

$1.97

12

WASHER | MODEL P

09169-06011

$3.77

12

WASHER | MODEL R

09169-06037

$2.67

13

NUT

09159-06038

$6.08

14

REFER TO FIG.56A(K-11) FOR

SPECIAL NOTE

Unavailable
