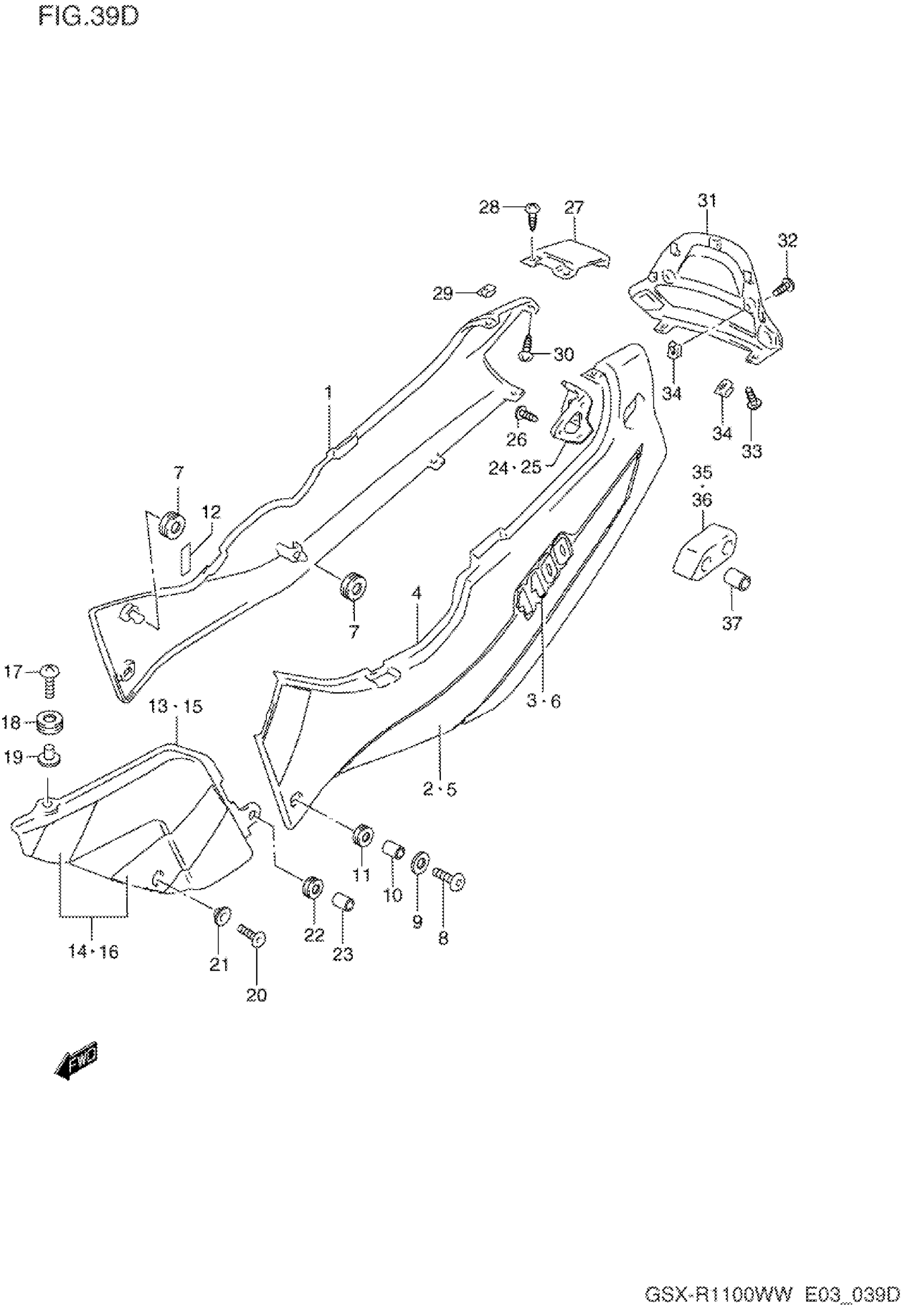

Suzuki GSX-R1100W (1998) FRAME COVER (MODEL V/W) Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE) | MODEL V FOR G4V

47100-46E70-0JW

Unavailable

1

COVER, FRAME RH (BLACK) | MODEL V FOR G2P

47100-46E70-33J

Unavailable

1

COVER, FRAME RH (WHITE) | MODEL W FOR K1V

47100-46E70-1LX

Unavailable

1

COVER, FRAME RH (GRAY) | MODEL W FOR G2E; Includes Item(s) 2 - 3

47100-46E70-35W

Unavailable

2

TAPE, FRONT RH | MODEL V FOR 0JW

68130-46E10-G6N

Unavailable

2

TAPE, FRONT RH | MODEL V FOR 33J

68130-46E10-G6P

Unavailable

2

TAPE, FRONT RH | MODEL W FOR 1LX

68130-46E10-K2M

Unavailable

2

TAPE, FRONT RH | MODEL W FOR 35W

68130-46E10-K2N

Unavailable

3

EMBLEM, RH | MODEL V FOR 0JW

68131-46E41-G6R

Unavailable

3

EMBLEM, RH | MODEL V FOR 33J

68131-46E41-G6S

Unavailable

3

EMBLEM, RH | MODEL W FOR 1LX

68131-46E41-K2H

Unavailable

3

EMBLEM, RH | MODEL W FOR 35W

68131-46E41-K2J

Unavailable

4

COVER, FRAME LH (WHITE) | MODEL V FOR G4V

47200-46E70-0JW

Unavailable

4

COVER, FRAME LH (BLACK) | MODEL V FOR G2P

47200-46E70-33J

Unavailable

4

COVER, FRAME LH (WHITE) | MODEL W FOR K1V

47200-46E70-1LX

Unavailable

4

COVER, FRAME LH (GRAY) | MODEL W FOR G2E; Includes Item(s) 5 - 6

47200-46E70-35W

Unavailable

5

TAPE, FRONT LH | MODEL V FOR 0JW

68140-46E10-G6N

Unavailable

5

TAPE, FRONT LH | MODEL V FOR 33J

68140-46E10-G6P

Unavailable

5

TAPE, FRONT LH | MODEL W FOR 1LX

68140-46E10-K2M

Unavailable

5

TAPE, FRONT LH | MODEL W FOR 35W

68140-46E10-K2N

Unavailable

6

EMBLEM, LH | MODEL V FOR 0JW

68141-46E41-G6R

Unavailable

6

EMBLEM, LH | MODEL V FOR 33J

68141-46E41-G6S

Unavailable

6

EMBLEM, LH | MODEL W FOR 1LX

68141-46E41-K2H

Unavailable

6

EMBLEM, LH | MODEL W FOR 35W

68141-46E41-K2J

Unavailable

7

CUSHION, INNER

09320-08018

$3.04

8

SCREW, FRONT

09139-06042

$5.55

9

WASHER | MODEL V This part replaces 09160-06006.

09160-06084

$1.78

9

WASHER | MODEL W This part replaces 09160-06132.

09160-06084

$1.78

10

SPACER

09180-06263

$2.03

11

CUSHION

09320-09016

$1.97

12

PROTECTOR

44885-38A00

$4.58

13

COVER, FRAME BODY RH (WHITE) | MODEL V FOR G4V

47500-46E70-0JW

Unavailable

13

COVER, FRAME BODY RH (BLACK) | MODEL V FOR G2P

47500-46E70-33J

Unavailable

13

COVER, FRAME BODY RH (WHITE) | MODEL W FOR K1V

47500-46E70-1LX

Unavailable

13

COVER, FRAME BODY RH (GRAY) | MODEL W FOR G2E; Includes Item(s) 14 - 14

47500-46E70-35W

Unavailable

14

TAPE, RH | MODEL V FOR 0JW

68660-46E30-G6L

Unavailable

14

TAPE, RH | MODEL V FOR 33J

68660-46E30-G6M

Unavailable

14

TAPE, RH | MODEL W FOR 1LX

68660-46E30-K2G

Unavailable

14

TAPE, RH | MODEL W FOR 35W

68660-46E30-E88

Unavailable

15

COVER, FRAME BODY LH (WHITE) | MODEL V FOR G4V

47600-46E70-0JW

Unavailable

15

COVER, FRAME BODY LH (BLACK) | MODEL V FOR G2P

47600-46E70-33J

Unavailable

15

COVER, FRAME BODY LH (WHITE) | MODEL W FOR K1V

47600-46E70-1LX

Unavailable

15

COVER, FRAME BODY LH (GRAY) | MODEL W FOR 35W; Includes Item(s) 16 - 16

47600-46E70-35W

Unavailable

16

TAPE, LH | MODEL V FOR 0JW

68670-46E30-G6L

Unavailable

16

TAPE, LH | MODEL V FOR 33J

68670-46E30-G6M

Unavailable

16

TAPE, LH | MODEL W FOR 1LX

68670-46E30-K2G

Unavailable

16

TAPE, LH | MODEL W FOR 35W

68670-46E30-E88

Unavailable

17

SCREW

09136-06126

$3.15

18

CUSHION

09320-09016

$1.97

19

WASHER

09169-06062

$2.50

20

SCREW, FRONT

09139-05025

$2.05

21

WASHER

09169-06040

$1.92

22

CUSHION

09320-09016

$1.97

23

SPACER

09180-06263

$2.03

24

BRACKET, REAR RH

45531-46E00

Unavailable

25

BRACKET, REAR LH

45532-46E00

Unavailable

26

SCREW This part replaces 03541-04103.

03541-0410A

$1.68

27

COVER, FRAME CENTER (WHITE) | FOR G4V,K1V

47300-46E00-0JW

Unavailable

27

COVER, FRAME CENTER (BLACK) | FOR G2P

47300-46E00-33J

Unavailable

27

COVER, FRAME CENTER (GRAY) | FOR G2E

47300-46E00-35W

Unavailable

28

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

29

NUT

09148-05021

$1.86

30

SCREW This part replaces 03541-04103.

03541-0410A

$1.68

31

COVER, FRAME REAR

47411-46E00

Unavailable

32

SCREW, REAR

09139-05021

$1.72

33

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

34

NUT

09148-05021

$1.86

35

CUSHION, PILLION RH

46238-46E00

Unavailable

36

CUSHION, PILLION LH

46239-46E00

Unavailable

37

NO DESCRIPTION AVAILABLE This part replaces 09180-08180.

09180-08180-XC0

Unavailable

38

COLOR : G2P = 22U(MAROON),

SPECIAL NOTE

Unavailable
