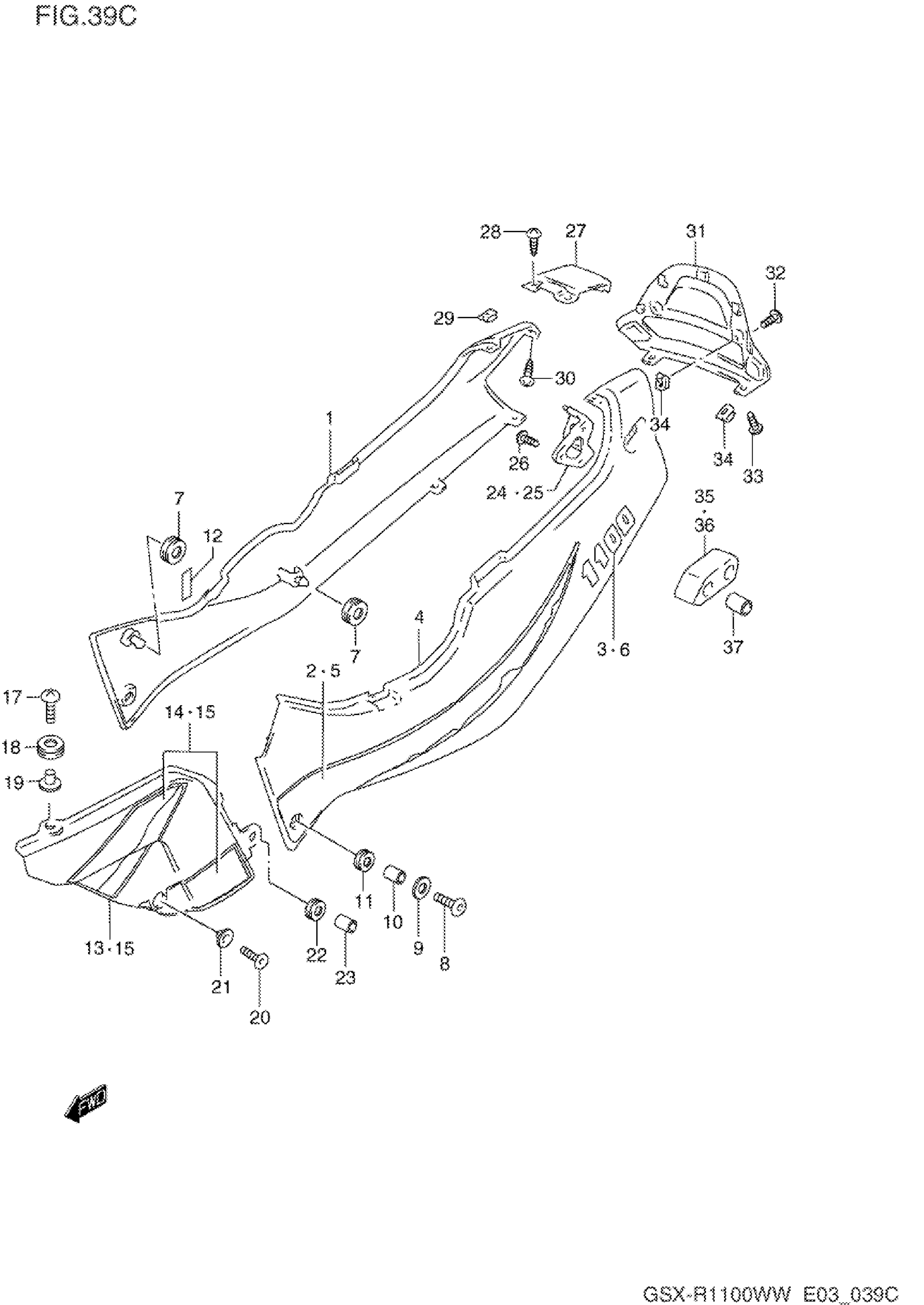

Suzuki GSX-R1100W (1998) FRAME COVER (MODEL T) Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE) | FOR E9P

47100-46E60-0JW

Unavailable

1

COVER, FRAME RH (GRAY) | FOR C3B; Includes Item(s) 2 - 3

47100-46E60-17U

Unavailable

2

TAPE, FRONT RH | FOR 0JW

68135-46E40-E9P

Unavailable

2

TAPE, FRONT RH | FOR 17U

68135-46E40-C3B

Unavailable

3

EMBLEM, RH | FOR 0JW

68131-46E30-Z75

Unavailable

3

EMBLEM, RH | FOR 17U

68131-46E30-Z76

Unavailable

4

COVER, FRAME LH (WHITE) | FOR E9P

47200-46E60-0JW

Unavailable

4

COVER, FRAME LH (GRAY) | FOR C3B; Includes Item(s) 5 - 6

47200-46E60-17U

Unavailable

5

TAPE, FRONT LH | FOR 0JW

68145-46E40-E9P

Unavailable

5

TAPE, FRONT LH | FOR 17U

68145-46E40-C3B

Unavailable

6

EMBLEM, LH | FOR 0JW

68141-46E30-Z75

Unavailable

6

EMBLEM, LH | FOR 17U

68141-46E30-Z76

Unavailable

7

CUSHION, INNER

09320-08018

$3.04

8

SCREW, FRONT

09139-06042

$5.55

9

WASHER This part replaces 09160-06006.

09160-06084

$1.78

10

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

11

CUSHION

09320-09016

$1.97

12

PROTECTOR

44885-38A00

$4.58

13

COVER, FRAME BODY RH (WHITE) | FOR E9P

47500-46E60-0JW

Unavailable

13

COVER, FRAME BODY RH (BLACK) | FOR C3B; Includes Item(s) 14

47500-46E60-17U

Unavailable

14

TAPE, RH | FOR 0JW

68660-46E20-E9P

Unavailable

14

TAPE, RH | FOR 17U

68660-46E20-C3B

Unavailable

15

COVER, FRAME BODY LH (WHITE) | FOR E9P

47600-46E60-0JW

Unavailable

15

COVER, FRAME BODY LH (GRAY) | FOR C3B; Includes Item(s) 16 - 16

47600-46E60-17U

Unavailable

16

TAPE, LH | FOR 0JW

68670-46E20-E9P

Unavailable

16

TAPE, LH | FOR 17U

68670-46E20-C3B

Unavailable

17

SCREW, UPPER

09136-06113

$2.83

18

CUSHION

09320-09016

$1.97

19

WASHER

09169-06062

$2.50

20

SCREW, FRONT

09139-05025

$2.05

21

WASHER

09169-06040

$1.92

22

CUSHION

09320-09016

$1.97

23

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

24

BRACKET, REAR RH

45531-46E00

Unavailable

25

BRACKET, REAR LH

45532-46E00

Unavailable

26

SCREW This part replaces 03541-04103.

03541-0410A

$1.68

27

COVER, FRAME CENTER (WHITE) | FOR E9P

47300-46E00-0JW

Unavailable

27

COVER, FRAME CENTER (GRAY) | FOR C3B

47300-46E00-17U

Unavailable

28

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

29

NUT

09148-05021

$1.86

30

SCREW This part replaces 03541-04103.

03541-0410A

$1.68

31

COVER, FRAME REAR

47411-46E00

Unavailable

32

SCREW, REAR

09139-05021

$1.72

33

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

34

NUT

09148-05021

$1.86

35

CUSHION, PILLION RH

46238-46E00

Unavailable

36

CUSHION, PILLION LH

46239-46E00

Unavailable

37

NO DESCRIPTION AVAILABLE This part replaces 09180-08180.

09180-08180-XC0

Unavailable

38

COLOR : E9P = 0JW(WHITE),

SPECIAL NOTE

Unavailable
