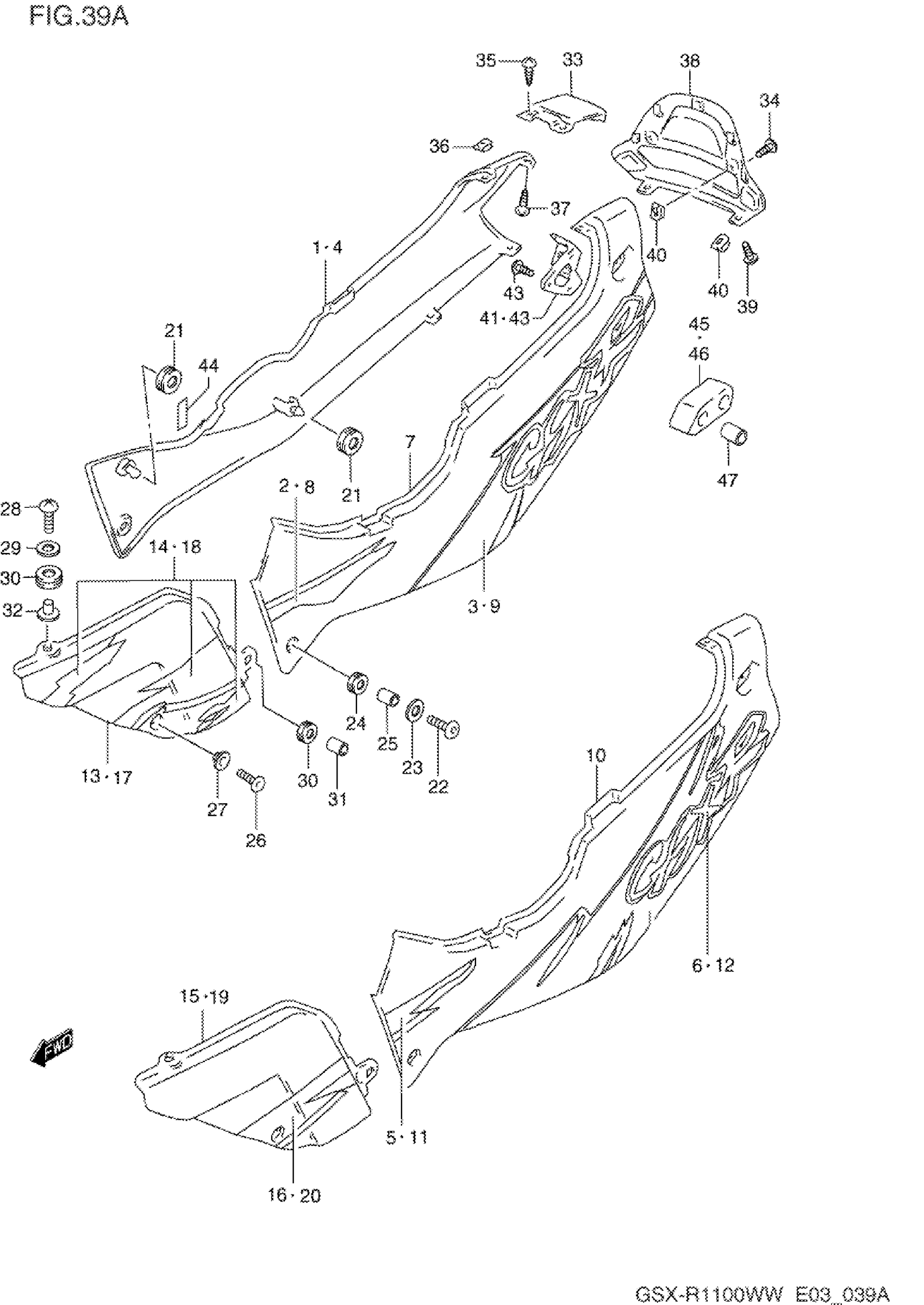

Suzuki GSX-R1100W (1998) FRAME COVER (MODEL R) Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE) | FOR M18; Includes Item(s) 2 - 3

47100-46E20-0JW

Unavailable

2

TAPE, RH | FOR 0JW

68135-46E10-C3T

Unavailable

3

EMBLEM, RH | FOR 0JW

68131-46E00-1WJ

Unavailable

4

COVER, FRAME RH (BLACK) | FOR 33J; Includes Item(s) 5 - 6

47100-46E30-33J

Unavailable

5

TAPE, RH | FOR 33J

68135-46E20-C3U

Unavailable

6

EMBLEM, RH | FOR 33J

68131-46E10-1WK

Unavailable

7

COVER, FRAME LH (WHITE) | FOR M18; Includes Item(s) 8 - 9

47200-46E20-0JW

Unavailable

8

TAPE, UPPER LH | FOR 0JW

68145-46E10-C3T

Unavailable

9

EMBLEM, LH | FOR 0JW

68141-46E00-1WJ

Unavailable

10

COVER, FRAME LH (BLACK) | FOR 33J; Includes Item(s) 11 - 12

47200-46E30-33J

Unavailable

11

TAPE, LH | FOR 33J

68145-46E20-C3U

Unavailable

12

EMBLEM, LH | FOR 33J

68141-46E10-1WK

Unavailable

13

COVER, FRAME BODY RH (BLUE) | FOR M18; Includes Item(s) 14

47500-46E20-1UX

Unavailable

14

TAPE SET, RH | FOR 1UX

68660-46E10-C3T

Unavailable

15

COVER, FRAME BODY RH (BLACK) | FOR 33J; Includes Item(s) 16

47500-46E30-33J

Unavailable

16

TAPE SET, RH | FOR 33J

68665-46E00-C3U

Unavailable

17

COVER, FRAME BODY LH (BLUE) | FOR M18; Includes Item(s) 18

47600-46E20-1UX

Unavailable

18

TAPE SET, LH | FOR 1UX

68670-46E10-C3T

Unavailable

19

COVER, FRAME BODY LH (BLACK) | FOR 33J; Includes Item(s) 20

47600-46E30-33J

Unavailable

20

TAPE SET, LH | FOR 33J

68675-46E00-C3U

Unavailable

21

CUSHION, INNER

09320-08018

$3.04

22

SCREW, FRAME COVER FRONT

09139-06042

$5.55

23

WASHER This part replaces 09160-06006.

09160-06084

$1.78

24

CUSHION

09320-09016

$1.97

25

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

26

SCREW, BODY COVER SIDE

09139-05025

$2.05

27

WASHER

09169-06040

$1.92

28

SCREW This part replaces 02142-06253.

02142-0625A

$1.49

29

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

30

CUSHION

09320-09016

$1.97

31

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

32

SPACER, UPPER

09169-06062

$2.50

33

COVER, FRAME CENTER (WHITE) | FOR M18

47300-46E00-0JW

Unavailable

33

COVER, FRAME CENTER (BLACK) | FOR 33J

47300-46E00-33J

Unavailable

34

SCREW, CENTER

09139-05021

$1.72

35

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

36

NUT, FRONT

09148-05021

$1.86

37

SCREW This part replaces 03541-04103.

03541-0410A

$1.68

38

COVER, FRAME REAR

47411-46E00

Unavailable

39

SCREW

09139-05021

$1.72

40

NUT, REAR COVER

09148-05021

$1.86

41

BRACKET, RH

45531-46E00

Unavailable

42

BRACKET, LH

45532-46E00

Unavailable

43

SCREW This part replaces 03541-14123.

03541-1412A

$2.13

44

CUSHION

44885-38A00

$4.58

45

CUSHION,PILLION RH

46238-46E00

Unavailable

46

CUSHION,PILLION LH

46239-46E00

Unavailable

47

NO DESCRIPTION AVAILABLE This part replaces 09180-08180.

09180-08180-XC0

Unavailable

48

COLOR : M18 = 0JW(WHITE),

SPECIAL NOTE

Unavailable
