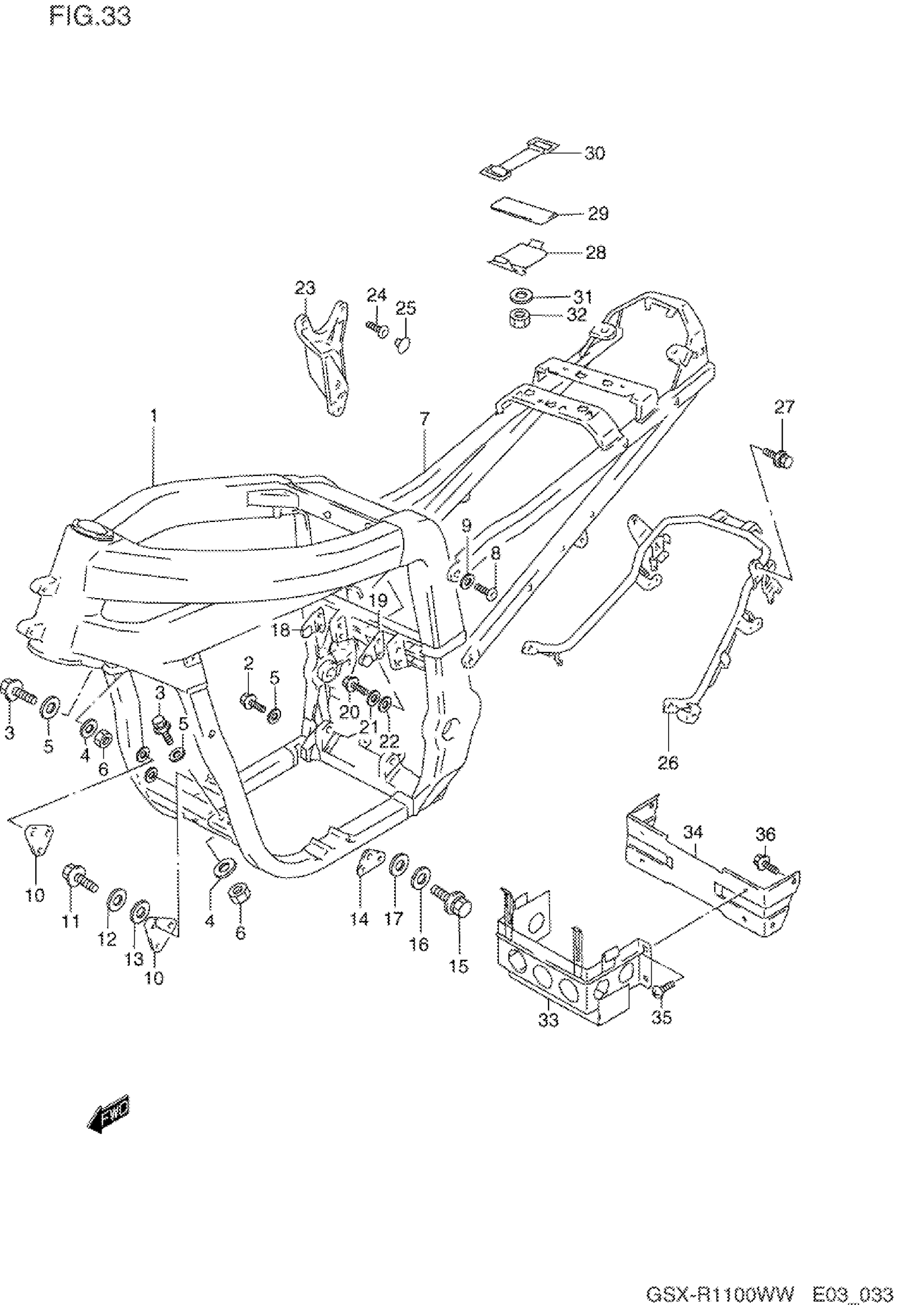

Suzuki GSX-R1100W (1998) FRAME Diagram

#

Description
Price

1

FRAME SET | MODEL P This part replaces 41100-46820.

41100-46830

Unavailable

1

FRAME SET | CALIFORNIA ONLY,MODEL PMODEL R

41100-46830

Unavailable

1

FRAME SET | MODEL S/T/V/W; Includes Item(s) 2 - 6

41100-46840

Unavailable

2

BOLT, RH

01550-10307

$3.91

3

BOLT | MODEL P/R

09103-10284

$4.77

3

BOLT | MODEL S/T/V/W This part replaces 01550-10453.

01550-1045B

$4.77

4

WASHER | MODEL P/R/S/T/V This part replaces 09160-10013.

09160-10123

$2.12

4

WASHER | MODEL W

09160-10123

$2.12

5

WASHER

09164-10010

$4.83

6

NUT

09159-10027

$3.10

7

RAIL, SEAT | MODEL P/R

41200-46E00

Unavailable

7

RAIL, SEAT | MODEL S/T/V/W

41200-46E20

Unavailable

8

BOLT This part replaces 43529-17D00.

09139-10004

$5.00

9

WASHER

09164-10010

$4.83

10

PLATE, ENGINE MOUNT NO.1

41911-17E00

Unavailable

11

BOLT, HOOK This part replaces 09103-08255.

09103-08288

$4.00

12

.LOCK WASHER | MODEL P/R

08321-01087

$2.13

12

LOCK WASHER | MODEL S/T/V/W This part replaces 08321-01083.

08321-0108A

$1.84

13

WASHER (8.5X20X1.6) | MODEL P/R/S/T/V This part replaces 09160-08010.

09160-08054

$1.49

13

WASHER (8.5X20X1.6) | MODEL W This part replaces 09160-08125.

09160-08054

$1.49

14

PLATE, MOUNT NO.2 LH

41921-17E00

Unavailable

14

PLATE, MOUNT NO.2 RH

41931-17E00

Unavailable

15

BOLT, HOOK This part replaces 09103-08255.

09103-08288

$4.00

16

.LOCK WASHER | MODEL P/R

08321-01087

$2.13

16

LOCK WASHER | MODEL S/T/V/W This part replaces 08321-01083.

08321-0108A

$1.84

17

WASHER (8.5X20X1.6) | MODEL P/R/S/T/V This part replaces 09160-08010.

09160-08054

$1.49

17

WASHER (8.5X20X1.6) | MODEL W This part replaces 09160-08125.

09160-08054

$1.49

18

PLATE, ENGINE MOUNT NO.3 RH

41940-17E00

Unavailable

19

PLATE, ENGINE MOUNT NO.3 LH

41950-17E00

Unavailable

20

BOLT

09106-08005

Unavailable

21

.LOCK WASHER | MODEL P/R

08321-01087

$2.13

21

LOCK WASHER | MODEL S/T/V/W This part replaces 08321-01083.

08321-0108A

$1.84

22

WASHER (8.5X20X1.6) | MODEL P/R/S/T/V This part replaces 09160-08010.

09160-08054

$1.49

22

WASHER (8.5X20X1.6) | MODEL W This part replaces 09160-08125.

09160-08054

$1.49

23

PLATE, MOUNT UPPER RH | MODEL S/T/V/W

41961-46E20

Unavailable

23

PLATE, MOUNT UPPER LH | MODEL S/T/V/W

41971-46E20

Unavailable

24

BOLT | MODEL S/T/V/W

09106-08129

$5.40

25

CAP | MODEL S/T/V/W

09250-05009

$2.19

26

GRIP, REAR | MODEL P/R This part replaces 43980-46E10.

43980-46E11

Unavailable

26

GRIP, REAR | MODEL S/T/V/W

43980-46E11

Unavailable

27

BOLT | MODEL P/R

01550-08207

$2.69

27

BOLT | MODEL S/T/V/W This part replaces 01550-08203.

01550-0820A

$2.23

28

HOLDER, TOOL | MODEL P/R/S This part replaces 41550-49200.

41550-49201

$16.00

28

HOLDER, TOOL | MODEL T/V/W

41550-49201

$16.00

29

CUSHION

36920-02200

$3.37

30

BAND, TOOL

09462-00034

$4.24

31

WASHER | MODEL P/R/S/T/V This part replaces 09160-06006.

09160-06084

$1.78

31

WASHER | MODEL W

09160-06084

$1.78

32

.NUT | MODEL P This part replaces 08319-21066.

08319-2106A

$1.91

32

NUT | MODEL R This part replaces 08319-31063.

08319-3106A

$2.03

32

NUT | MODEL S This part replaces 09159-06058.

09159-06078

$2.62

32

NUT | MODEL T/V/W

09159-06078

$2.62

33

HOLDER, BATTERY | MODEL P/R This part replaces 41540-17E00.

41540-17E10

Unavailable

33

HOLDER, BATTERY | MODEL S This part replaces 41540-17E50.

41540-17E61

Unavailable

33

HOLDER, BATTERY | MODEL P/R CALIFORNIA ONLY

41540-17E10

Unavailable

33

HOLDER, BATTERY | MODEL S CALIFORNIA ONLY This part replaces 41540-17E60.

41540-17E61

Unavailable

33

HOLDER, BATTERY | MODEL T/V/W

41540-17E61

Unavailable

34

BRACKET | MODEL P/R

41560-17E00

Unavailable

34

BRACKET | MODEL S/T/V/W

41560-17E50

Unavailable

35

SCREW, FRONT | MODEL P/R

02142-06127

$1.49

35

SCREW | MODEL S/T/V/W This part replaces 02142-06123.

02142-0612A

$1.49

36

BOLT This part replaces 01550-06163.

01550-0616A

$1.97
