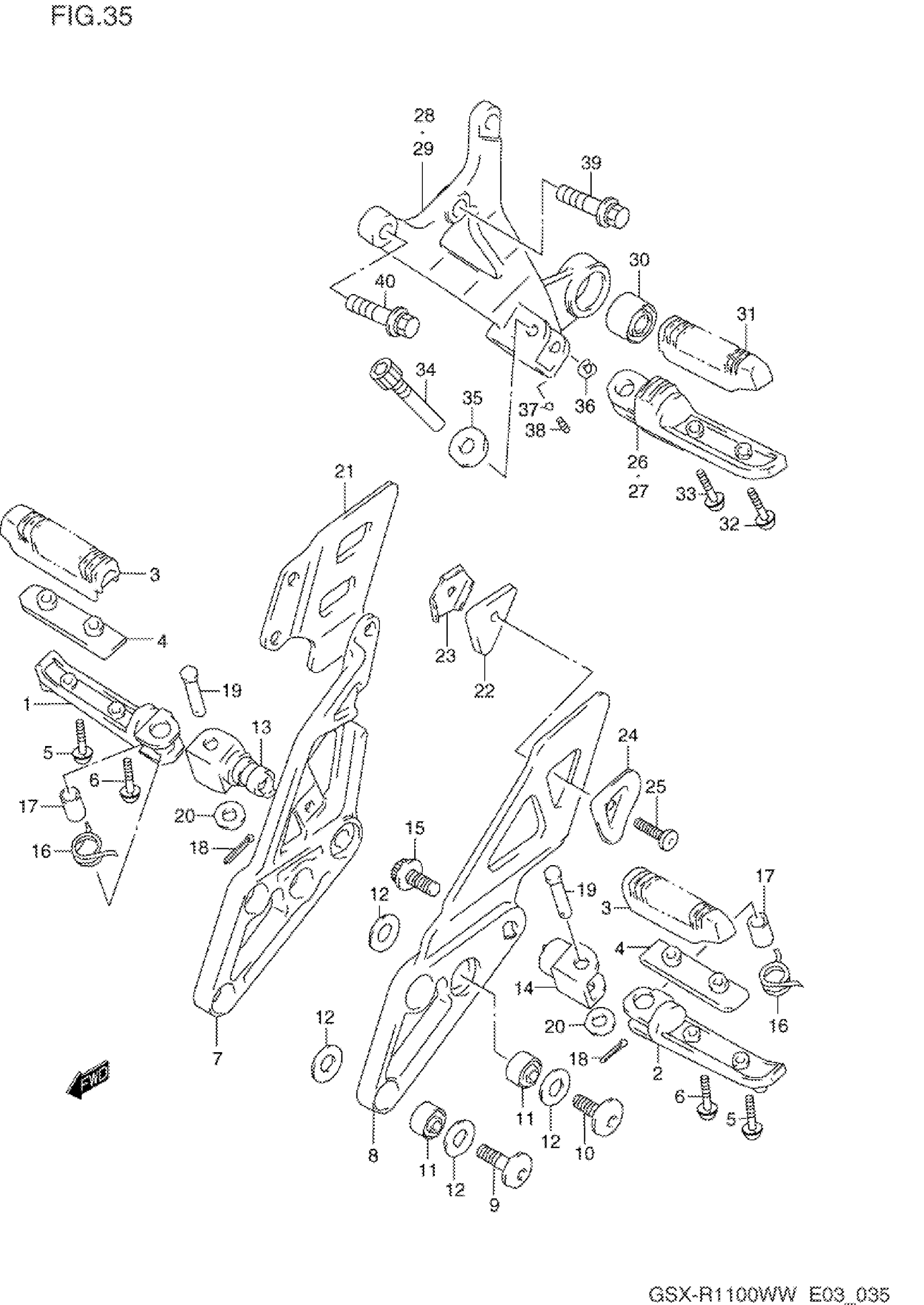

Suzuki GSX-R1100W (1998) FOOTREST (MODEL P/R) Diagram

#

Description
Price

1

BAR, FRONT FOOTREST RH

43511-40C00

$63.90

2

BAR, FRONT FOOTREST LH

43521-40C00

$63.90

3

RUBBER, FOOTREST

43550-46E00

$32.17

4

BAR, FOOTREST INNER

43534-46E00

Unavailable

5

SCREW This part replaces 02112-35203.

02112-3520B

Unavailable

6

SCREW This part replaces 02112-35253.

02112-3525B

Unavailable

7

BRACKET, FOOTREST RH

43511-46E00

Unavailable

8

NO DESCRIPTION AVAILABLE This part replaces 43522-46E00.

43522-46E01

Unavailable

9

BOLT, MUFFLER SUPPORT FRONT This part replaces 09106-08080.

09106-08147

$6.25

10

BOLT, REAR

09106-08089

$9.27

11

BUSH

09319-08036

$25.12

12

WASHER

09161-12009

$4.32

13

HOLDER, FRONT FOOTREST,RH

43530-46E01

Unavailable

14

HOLDER, FRONT FOOTREST,LH

43540-46E01

Unavailable

15

BOLT, FOOTREST HOLDER

09106-10052

Unavailable

16

SPRING This part replaces 09448-19020.

09448-18022

$3.79

17

SPACER, FRONT FOOTREST

09180-08149

$5.58

18

PIN This part replaces 04111-25158.

04111-2515A

$1.49

19

PIN

09200-08057

$2.36

20

WASHER

09160-08043

$1.83

21

GUARD, FOOTREST RH

43586-17E01

Unavailable

22

WEIGHT, BRACKET LH

43535-46E00

Unavailable

23

COVER, WEIGHT

43560-46E00

Unavailable

24

PLATE, WEIGHT

43532-17E00

Unavailable

25

SCREW, WEIGHT PLATE

09139-06028

$3.70

26

FOOTREST, PILLION RH

43610-46E00

Unavailable

27

FOOTREST, PILLION LH

43620-46E00

Unavailable

28

BRACKET, PILLION FOOTREST RH

43810-46E00

Unavailable

29

BRACKET, PILLION FOOTREST LH | Includes Item(s) 30

43820-46E00

Unavailable

30

NO DESCRIPTION AVAILABLE This part replaces 09319-10057.

09319-10065

Unavailable

31

RUBBER

43550-40C11

$21.90

32

SCREW, OUTER

02112-35167

$2.63

33

SCREW This part replaces 02112-35203.

02112-3520B

Unavailable

34

BOLT

43642-40C00

$8.98

35

WASHER This part replaces 09160-10031.

09160-10126

$2.12

36

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.49

37

BALL

06111-07004

$1.49

38

SPRING

09440-05003

$1.49

39

BOLT

01550-08207

$2.69

40

BOLT

01550-08307

$3.54

41

REFER TO FIG.35A(G-7) FOR

SPECIAL NOTE

Unavailable
