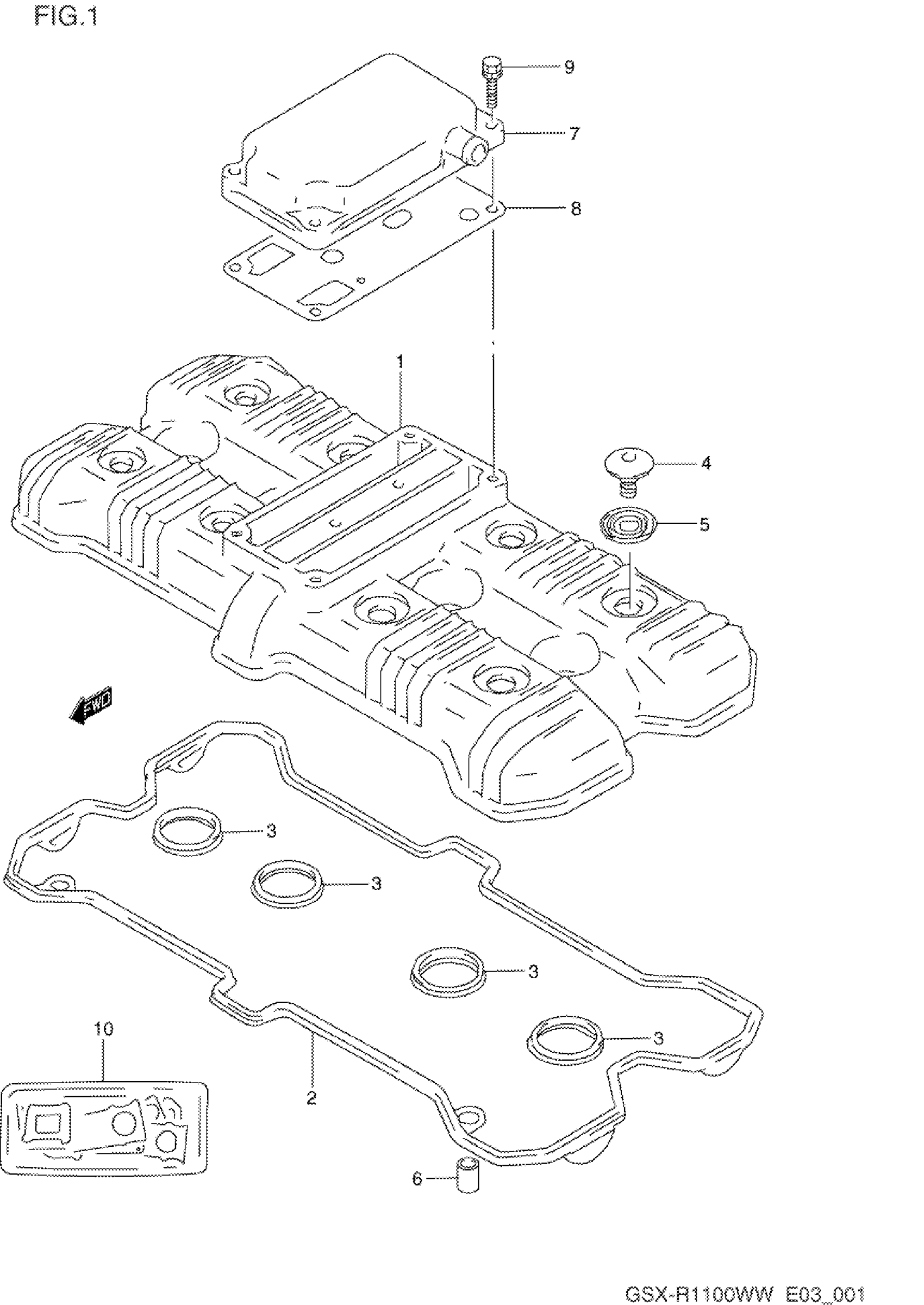

Suzuki GSX-R1100W (1998) CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD | MODEL P/R This part replaces 11171-17E00.

11171-17E11

Unavailable

1

COVER, CYLINDER HEAD | MODEL S/T/V/W

11171-17E11

Unavailable

2

GASKET, HEAD COVER NO.1

11173-17E00

Unavailable

3

GASKET, HEAD COVER NO.2

11178-17E00

$6.64

4

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

$4.50

5

WASHER

09161-11008

$4.49

6

PIN

09206-08001

$1.78

7

COVER, BREATHER | MODEL P/R

11176-26D00

Unavailable

7

COVER, BREATHER | MODEL S/T/V/W

11176-31E00

Unavailable

8

GASKET, BREATHER COVER

11177-17E00

$10.24

9

BOLT | MODEL P This part replaces 01517-06257.

01550-06257

$2.30

9

BOLT | MODEL R/S/T/V/W This part replaces 01550-06253.

01550-0625A

$1.97

10

GASKET SET | MODEL P/R/S/T This part replaces 11403-46812.

11403-46813

Unavailable

10

GASKET SET | MODEL V/W

11403-46813

Unavailable
