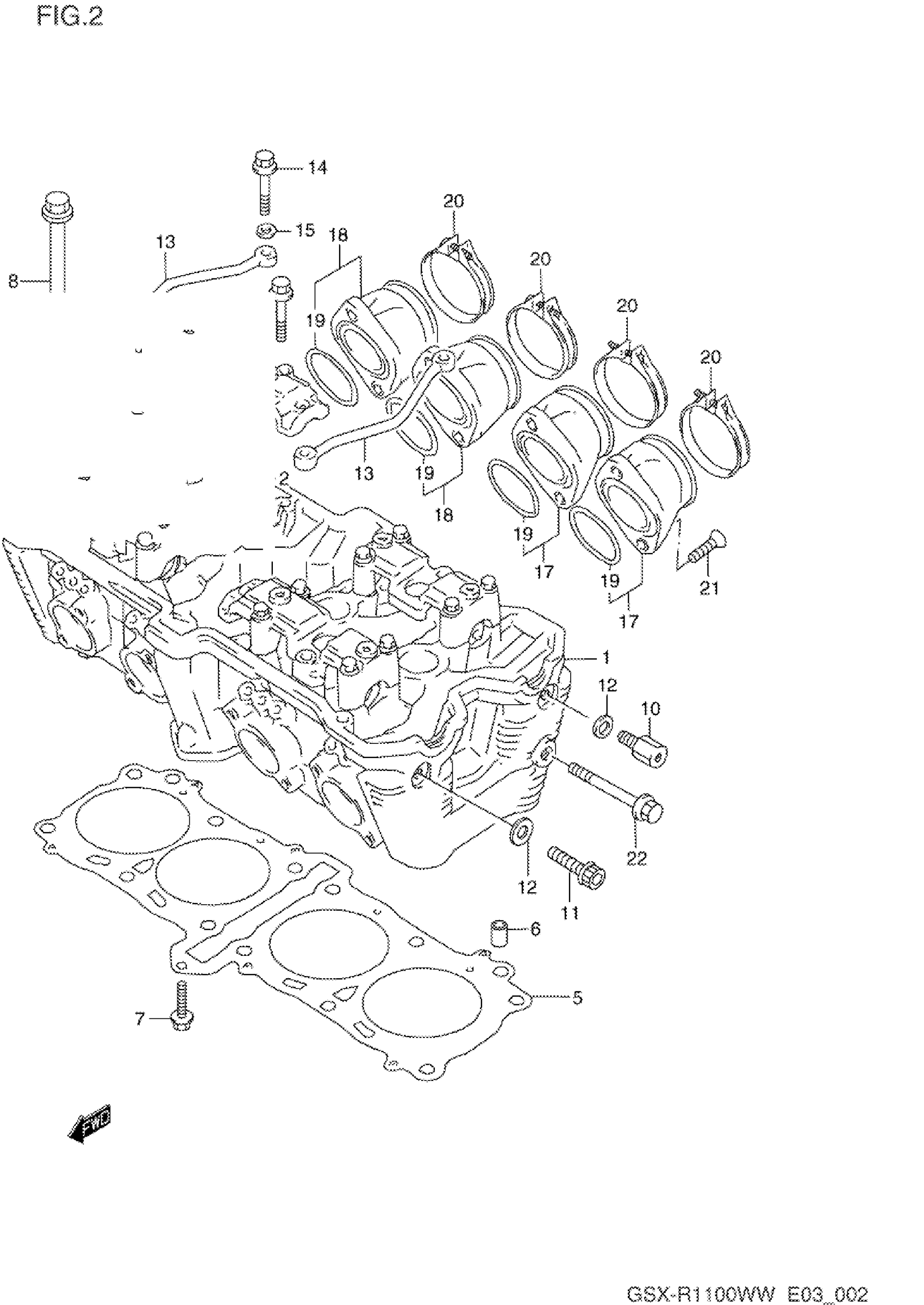

Suzuki GSX-R1100W (1998) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | MODEL P/R This part replaces 11100-46E00.

11100-46E20

Unavailable

1

HEAD ASSY, CYLINDER | MODEL P/R,CALIFORNIA ONLY

11100-46E10

Unavailable

1

HEAD ASSY, CYLINDER | MODEL S/T/V/W

11100-46E20

Unavailable

1

HEAD ASSY, CYLINDER | MODEL S/T/V/WCALIFORNIA ONLY; Includes Item(s) 2 - 4

11100-46E30

Unavailable

2

GUIDE, VALVE

11115-17E70

Unavailable

3

BOLT (6X45) | MODEL P This part replaces 09103-06013.

09103-06165

$3.03

3

BOLT (6X45) | MODEL R/S/T/V/W

09103-06165

$3.03

4

PIN

09206-08001

$1.78

5

GASKET, CYLINDER HEAD

11141-46E01

Unavailable

6

PIN

04211-11189

$1.78

7

BOLT | MODEL P This part replaces 01517-06305.

01550-0630A

$2.32

7

BOLT | MODEL R/S/T/V/W This part replaces 01550-06303.

01550-0630A

$2.32

8

BOLT (10X175) | MODEL P/R/S/T/V This part replaces 09103-10270.

09103-10276

$16.01

8

BOLT (10X175) | MODEL W

09103-10276

$16.01

9

WASHER

09160-10082

$1.61

10

BOLT | MODEL P This part replaces 09119-08079.

09119-08079-XC0

Unavailable

10

BOLT | MODEL R/S/T/V/W This part replaces 07120-08163.

07120-0816A

$3.05

11

BOLT | MODEL P This part replaces 07120-08165.

07120-0816A

$3.05

11

BOLT | MODEL R/S/T/V/W This part replaces 07120-08163.

07120-0816A

$3.05

12

GASKET

09168-08015

$2.79

13

PIPE, OIL

11131-17E00

Unavailable

14

BOLT (6X39)

09103-06026

$1.98

15

.WASHER | MODEL P This part replaces 08322-21064.

08322-0106B

$2.26

15

.WASHER | MODEL R/S/T/V/W This part replaces 08322-01063.

08322-0106B

$2.26

16

PLUG SPARK (CR9E)

09482-00458

$6.47

16

SPARK PLUG (DENSO,U27ESR-N)

09482-00459

$6.09

16

SPARK PLUG (NGK,CR8E) | OPT

09482-00456

$6.73

16

SPARK PLUG (NGK,CR10E) | OPT

09482-00460

$6.47

16

SPARK PLUG (DENSO,U24ESR-N) | OPT

09482-00457

$6.09

16

SPARK PLUG (DENSO,U31ESR-N) | OPT

09482-00461

$12.62

17

PIPE ASSY,INTAK | MODEL P/R/S This part replaces 13101-46E10.

13101-46E12

Unavailable

17

PIPE ASSY,INTAK | MODEL T/V/W This part replaces 13101-46E11.

13101-46E12

Unavailable

18

PIPE ASSY,INTAK | MODEL P/R/S This part replaces 13102-46E10.

13102-46E12

Unavailable

18

PIPE ASSY,INTAK | MODEL T/V/W; Includes Item(s) 19 This part replaces 13102-46E11.

13102-46E12

Unavailable

19

.O-RING (D:2.4,ID:47X42) This part replaces 09280-46006.

09280-46007

$7.01

20

CLAMP

09402-52208

$5.36

21

SCREW (6X16) | MODEL P/R

09126-06014

$2.06

21

SCREW,6X16 | MODEL S/T/V/W This part replaces 09120-06010.

09120-06010-XC0

$2.28

22

BOLT | MODEL S/T/V/W This part replaces 01550-10403.

01550-1040A

$3.55
