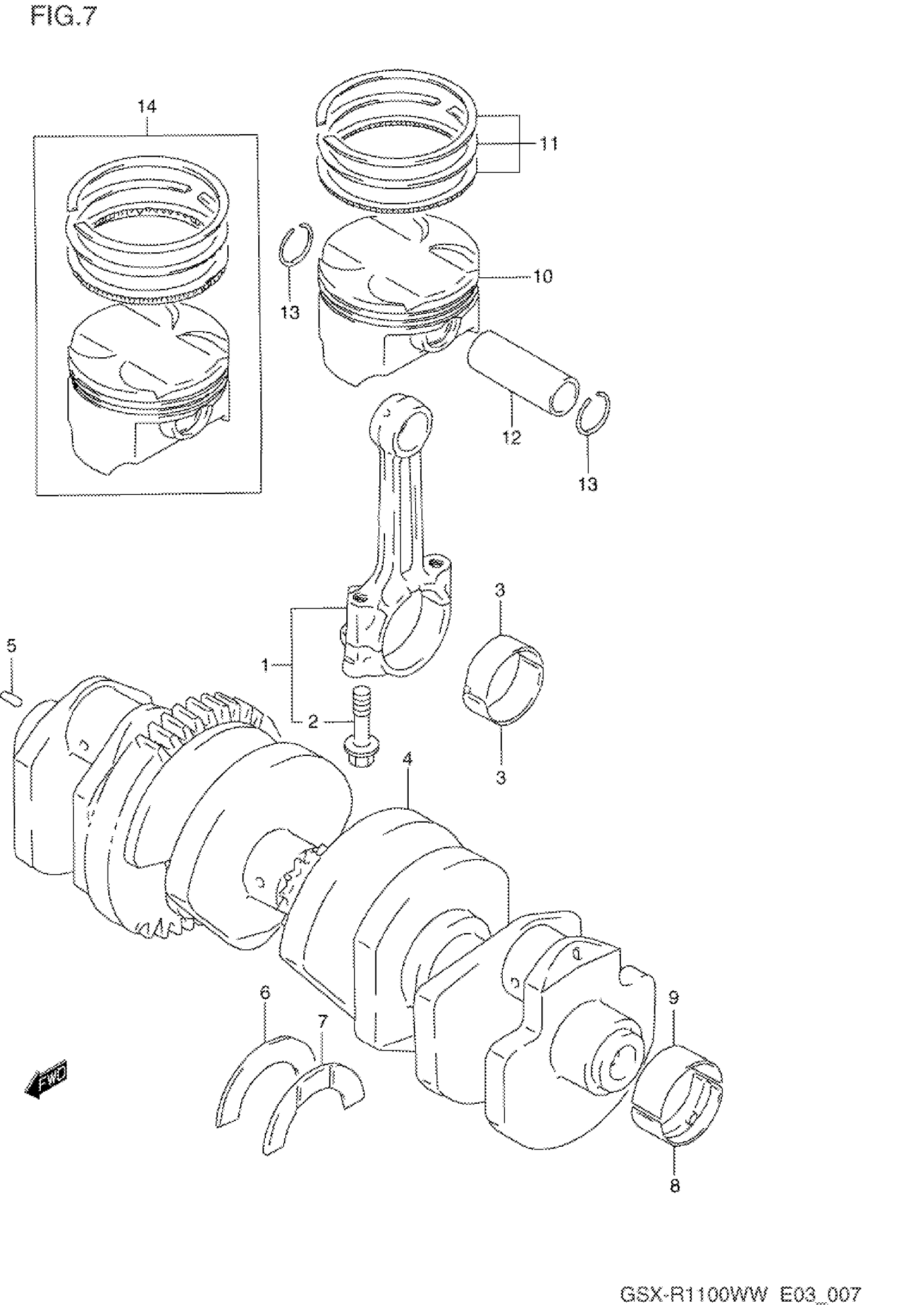

Suzuki GSX-R1100W (1998) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING | Includes Item(s) 2

12160-46E02

Unavailable

2

BOLT

12163-17C50

Unavailable

3

BEARING, CRANK PIN (GREEN)

12164-46E01-0A0

$16.80

3

BEARING, CRANK PIN (BLACK)

12164-46E01-0B0

$16.80

3

BEARING, CRANK PIN (BROWN)

12164-46E01-0C0

$17.30

3

BEARING, CRANK PIN (YELLOW)

12164-46E01-0D0

$17.30

4

CRANKSHAFT SET | Includes Item(s) 5 - 7

12000-46821

Unavailable

5

PIN (4X13.8)

04221-04089

$1.49

6

BEARING, THRUST RH (GREEN)

12228-17E00-0D0

$9.50

7

BEARING, THRUST LH (RED)

12228-17E00-0A0

$11.38

7

BEARING, THRUST LH (BLACK)

12228-17E00-0B0

$9.69

7

BEARING, THRUST LH (BLUE)

12228-17E00-0C0

$9.69

7

BEARING, THRUST LH (GREEN)

12228-17E00-0D0

$9.50

7

BEARING, THRUST LH (YELLOW)

12228-17E00-0E0

$11.38

7

BEARING, THRUST LH (WHITE)

12228-17E00-0F0

$11.60

8

BEARING, CRANKSHAFT (GREEN) | LOWER MODEL P/R

12229-17E00-0A0

Unavailable

8

BEARING, CRANKSHAFT (BLACK) | MODEL P/R

12229-17E00-0B0

Unavailable

8

BEARING, CRANKSHAFT (BROWN) | MODEL P/R

12229-17E00-0C0

Unavailable

8

BEARING, CRANKSHAFT (YELLOW) | MODEL P/R

12229-17E00-0D0

Unavailable

8

BEARING, CRANKSHAFT (GREEN) | LOWER MODEL S/T/V/W

12229-46E00-0A0

Unavailable

8

BEARING, CRANKSHAFT (BLACK) | MODEL S/T/V/W

12229-46E00-0B0

Unavailable

8

BEARING, CRANKSHAFT (BROWN) | MODEL S/T/V/W

12229-46E00-0C0

Unavailable

8

BEARING, CRANKSHAFT (YELLOW) | MODEL S/T/V/W

12229-46E00-0D0

Unavailable

9

BEARING, CRANKSHAFT (GREEN) | UPPER MODEL P/R

12229-17E10-0A0

Unavailable

9

BEARING, CRANKSHAFT (BLACK) | MODEL P/R

12229-17E10-0B0

$13.97

9

BEARING, CRANKSHAFT (BROWN) | MODEL P/R

12229-17E10-0C0

Unavailable

9

BEARING, CRANKSHAFT (YELLOW) | MODEL P/R

12229-17E10-0D0

Unavailable

9

BEARING, CRANKSHAFT (GREEN) | UPPER MODEL S/T/V/W

12229-46E10-0A0

Unavailable

9

BEARING, CRANKSHAFT (BLACK) | MODEL S/T/V/W

12229-46E10-0B0

Unavailable

9

BEARING, CRANKSHAFT (BROWN) | MODEL S/T/V/W

12229-46E10-0C0

Unavailable

9

BEARING, CRANKSHAFT (YELLOW) | MODEL S/T/V/W

12229-46E10-0D0

Unavailable

10

PISTON | MODEL P/R This part replaces 12111-46E06-0F0.

12111-46E07-0F0

Unavailable

10

PISTON | MODEL S/T/V/W

12111-46E07-0F0

Unavailable

11

RING SET, PISTON | MODEL P/R This part replaces 12140-46E12.

12140-46E13

$86.20

11

RING SET, PISTON | MODEL S/T/V/W

12140-46E13

$86.20

12

PIN,PISTON

12151-24A00

$22.03

13

CIRCLIP

09381-20004

$1.65

14

PISTON SET (OS:0.5) | OPT

12100-46E01-050

Unavailable
