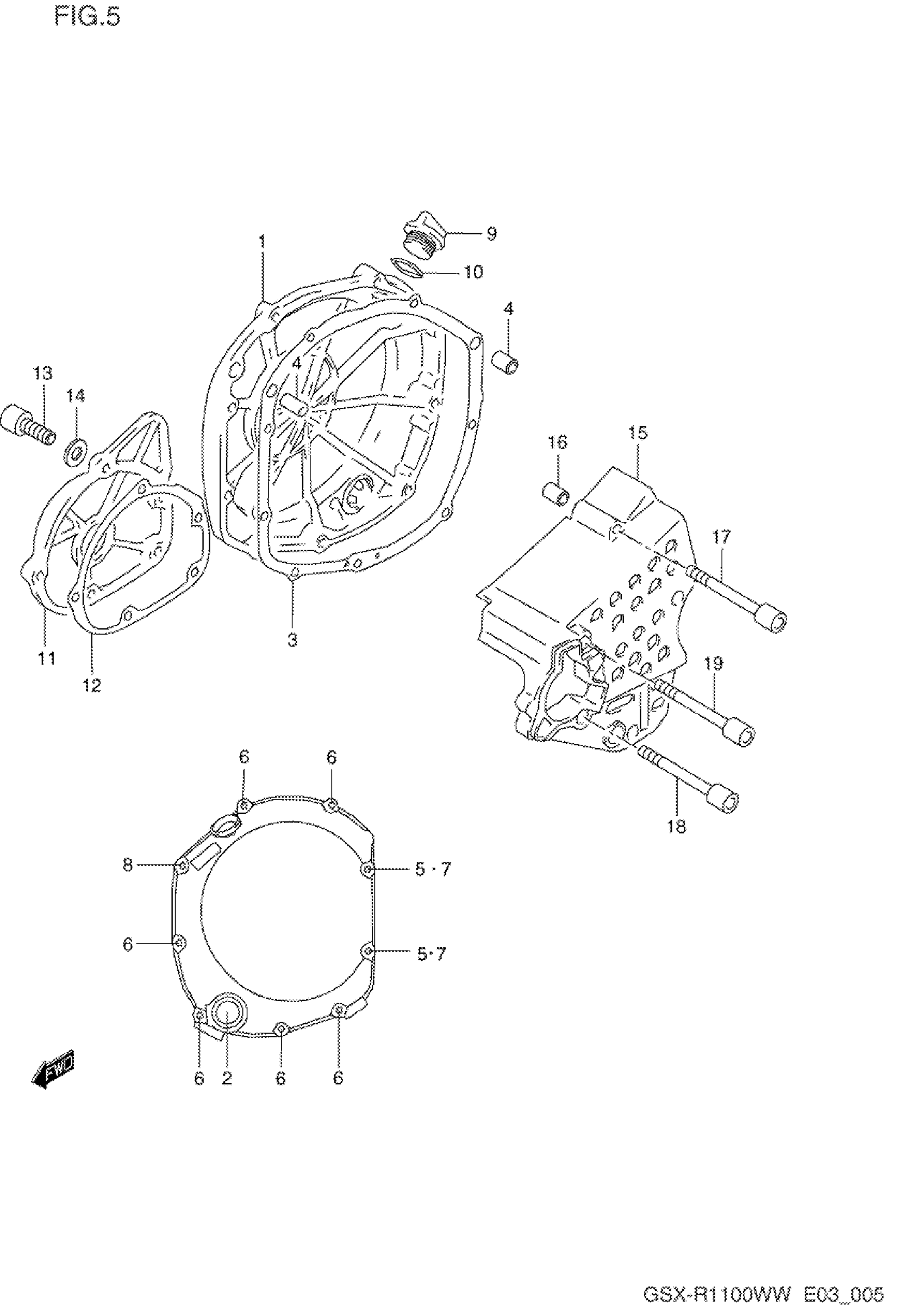

Suzuki GSX-R1100W (1998) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | MODEL P/R This part replaces 11340-46E00.

11340-31E01

Unavailable

1

COVER, CLUTCH | MODEL S/T/V/W; Includes Item(s) 2

11340-31E01

Unavailable

2

LENS, OIL LEVEL

11971-33210

$18.20

3

GASKET, CLUTCH COVER

11482-17E00

Unavailable

4

PIN

04211-09189

$1.65

5

GASKET

09168-06024

$2.20

6

BOLT | MODEL P This part replaces 07130-06255.

07130-0625B

$3.04

6

BOLT | MODEL R/S/T/V/W This part replaces 07130-06253.

07130-0625B

$3.04

7

BOLT | MODEL P This part replaces 07110-06305.

07130-0630B

$3.37

7

BOLT | MODEL R/S/T/V/W This part replaces 07130-06303.

07130-0630B

$3.37

8

BOLT | MODEL P This part replaces 07130-06355.

07130-0635B

$3.37

8

BOLT | MODEL R/S/T/V/W This part replaces 07130-06353.

07130-0635B

$3.37

9

.PLUG | ~E.NO.111149 This part replaces 09259-20012.

09259-20008-XC0

$7.50

9

.PLUG | E.NO.111150~ This part replaces 09259-20008.

09259-20008-XC0

$7.50

10

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

11

COVER, SIGNAL GENERATOR | MODEL P This part replaces 11381-17E00.

11381-31E00

Unavailable

11

COVER, SIGNAL GENERATOR | MODEL R/S/T/V/W

11381-31E00

Unavailable

12

GASKET, SIGNAL GENERATOR COVE

11491-17E01

Unavailable

13

BOLT,6X23 | MODEL P This part replaces 09106-06059.

09106-06059-XC0

Unavailable

13

BOLT (6X23) | MODEL R/S/T/V/W

09106-06082

$2.62

14

GASKET

09168-06024

$2.20

15

COVER, ENGINE SPROCKET | MODEL P/R

11361-46E00

Unavailable

15

COVER, ENGINE SPROCKET | MODEL S/T/V/W

11361-46E10

Unavailable

16

PIN

04211-09129

$1.65

17

BOLT | MODEL P This part replaces 07110-06555.

07130-0655B

$4.10

17

BOLT | MODEL R/S/T/V/W This part replaces 07130-06553.

07130-0655B

$4.10

18

BOLT | MODEL P This part replaces 07110-06705.

07130-0670B

$3.89

18

BOLT | MODEL RMODEL S/T/V/W This part replaces 07130-06703.

07130-0670B

$3.89

19

BOLT | MODEL P This part replaces 07110-06805.

07130-0680B

$4.68

19

BOLT | MODEL R/S/T/V/W This part replaces 07130-06803.

07130-0680B

$4.68
